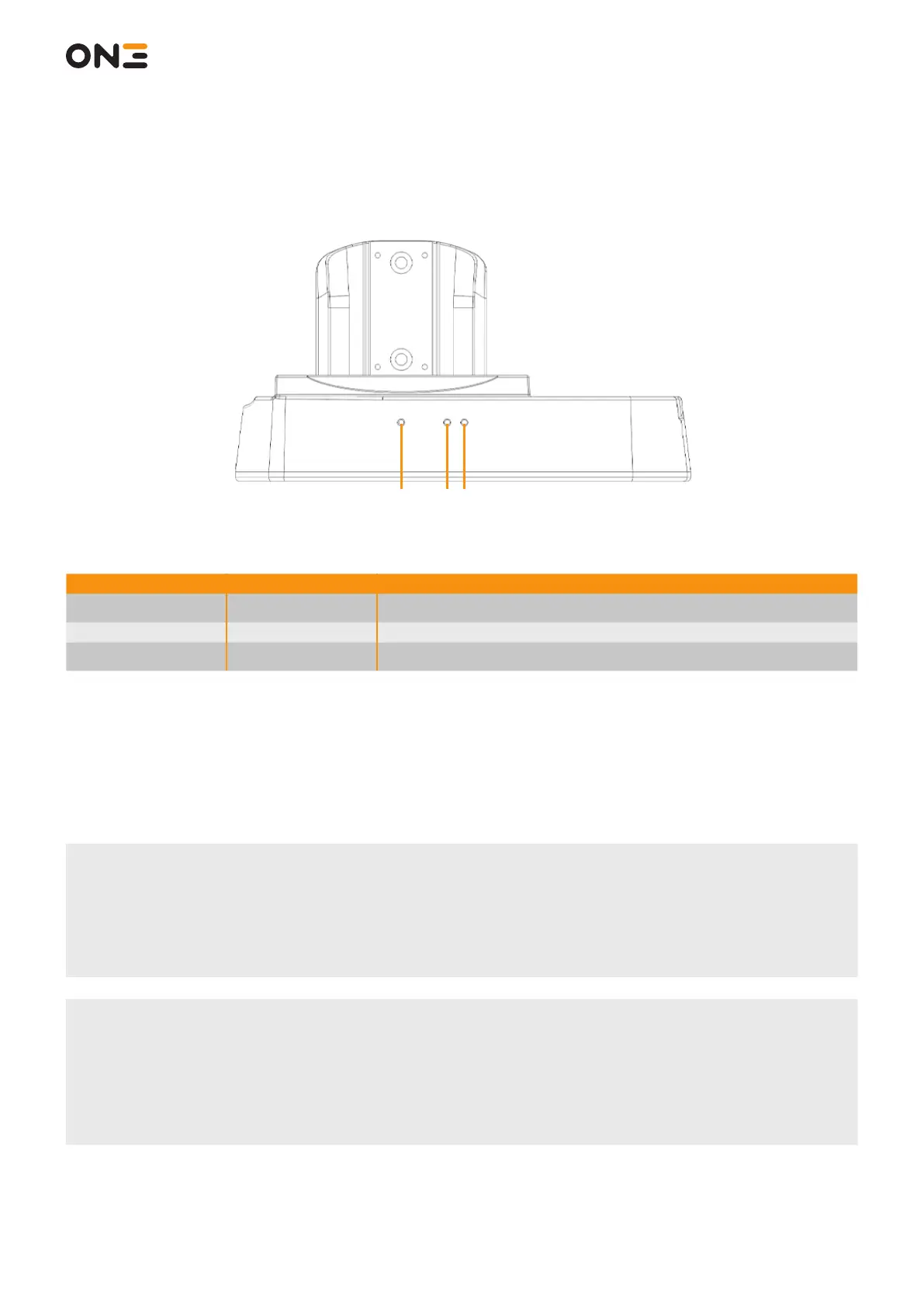

7.3 Status Indicators
The status indicator the charging status:
A
B
C
LED Colour Description
A GREEN Power ON
B* GREEN Auxiliary Battery charged
C* RED Auxiliary Battery charging
*LED B and C are turned ON alternately
While charging the red LED (LED C) is on; green LED (LED B) off;at the end of charging the green LED (LED B) is on.
Charging Station has a back side supply cable. The skilled installer can disconnect the power cable from the side and
connect it to bottom side maintaining the same cap where the cable is already inserted.
CAUTION!
• Disconnection and connection cable must be performed by a skilled installer.
• SELV Extra low voltage Power Supply / Limited power source according to EN 60950-1 and Class 2
according to UL Standards.
i
INFORMATION
• When not in use, it is always suggested to place the Wireless Handheld device on the Charging Station.
• When the Wireless Handheld is shut off and not recharged, the battery typically discharges in 7 days.
In this case you must complete charging cycle before using the Wireless Handheld device.
