MANUGENX5 - Version 1.01 24.03.2021
© 2021 0N3 s.r.l. - Subject to change without notice
47

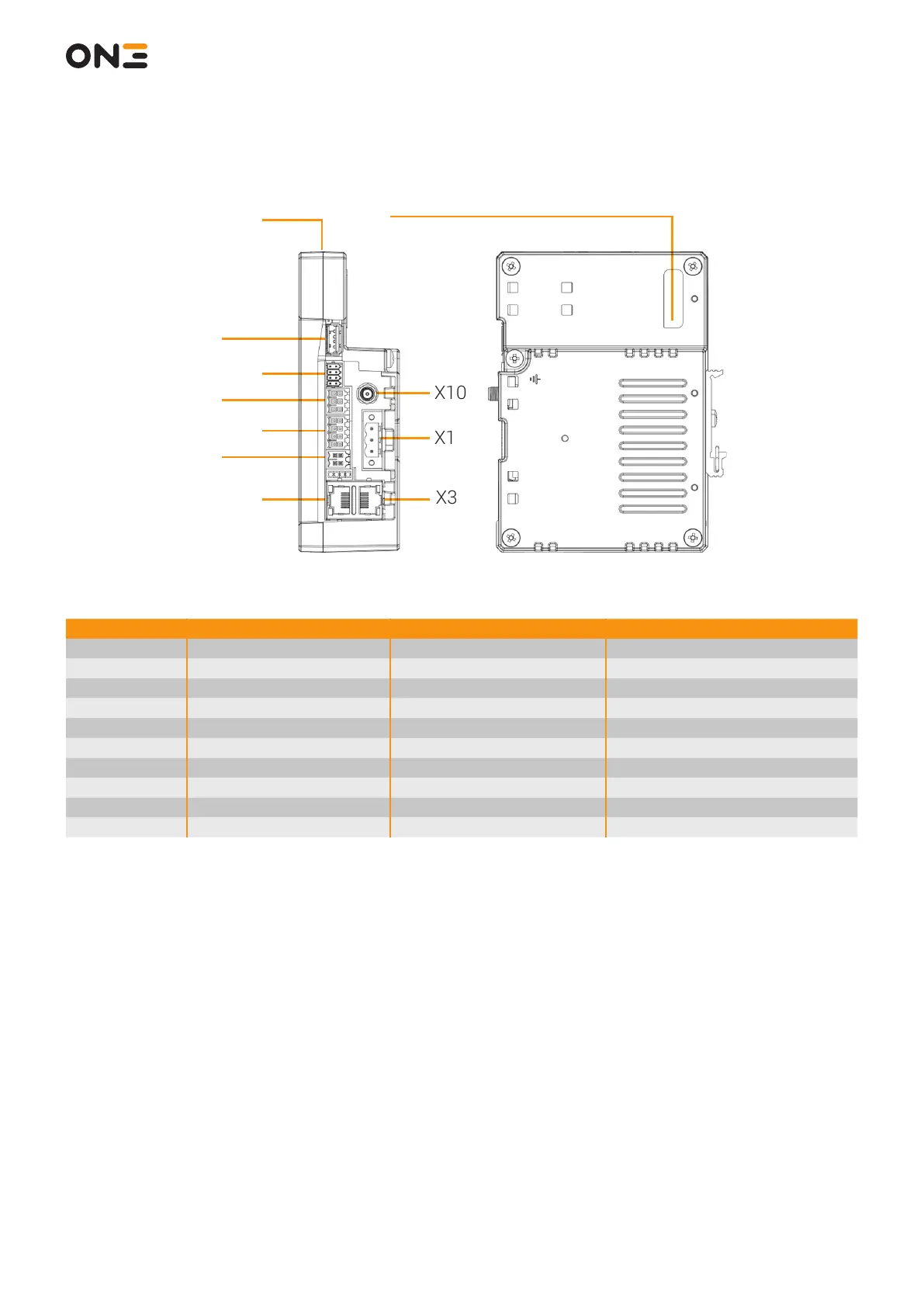

8.3 Base Station connectors and cables
X2
X9
X8
X7
X6
X5
X4
X1
X3
X10
Expansion slot for plugin modules
Reference Description Plug Connector Cable
X1 Power Supply Weidmüller 1944340000 AWG20, unshielded, TP
X2 SD Card - -
X3 Ethernet #0 RJ45 plug with latch S/FTP Cat5e, shielded
X4 Ethernet #1 RJ45 plug with latch S/FTP Cat5e, shielded
X5 Auxiliary I/O Weidmüller 1277460000 AWG20, shielded
X6 Safety Outputs Weidmüller 1727560000 AWG20, shielded
X7 Selector Outputs Weidmüller 1727500000 AWG20, shielded
X8 Serial Port Weidmüller 1727570000 AWG24-20, shielded
X9 USB Port USB A USB 2.0, shielded
X10 Antenna RP-SMA Low Loss RF cable 2.4/5GHz*
*Cable as short as possible < 3m
