page 17 | Document No.: TH-930-001 - 1/26/2015
A10 Thunder Series 930 Installation Guide
DC Power Supply Installation

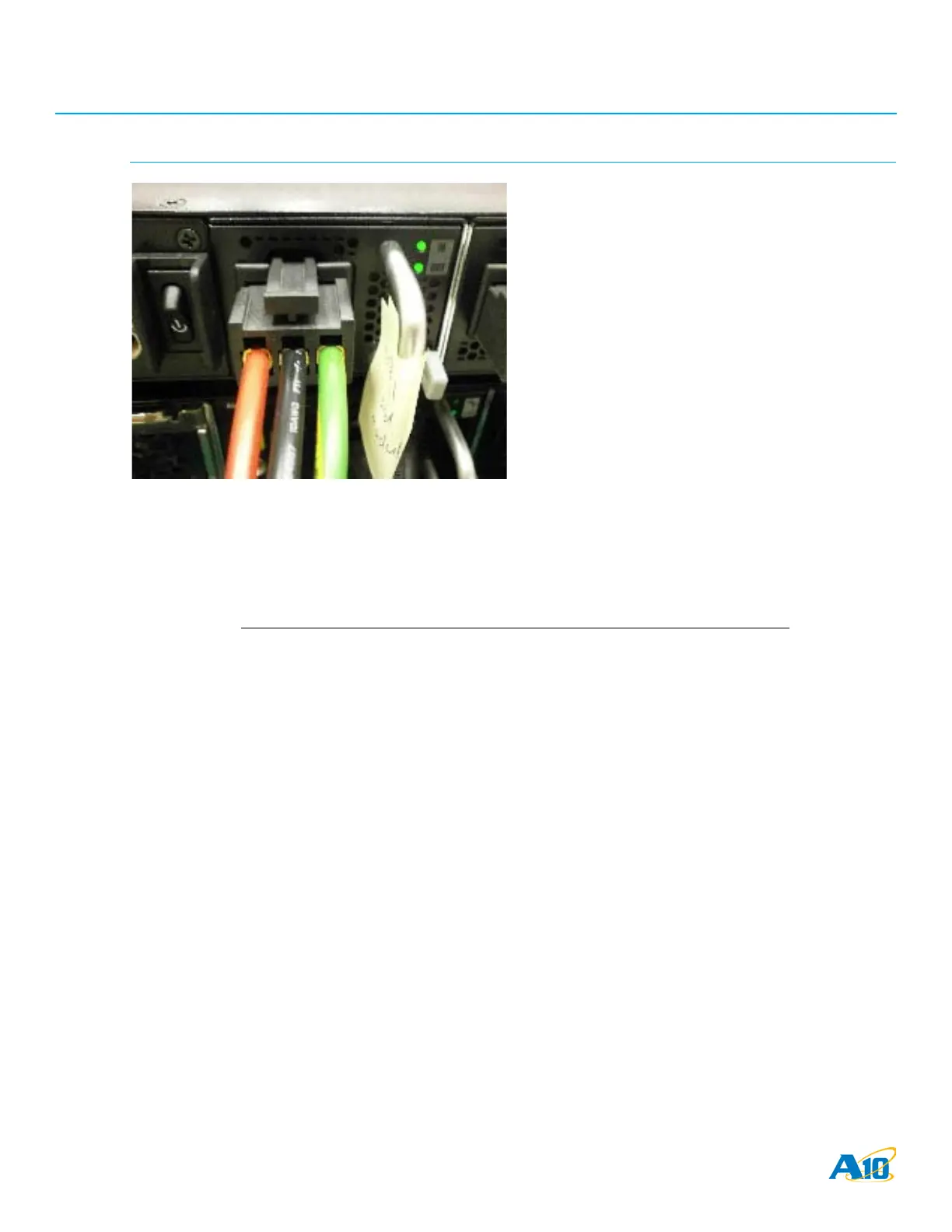

FIGURE 6 Example of DC Power Supply (Assembled - Cable Inserted)
DC Power Supply Installation
Refer to the following instructions and figures for this procedure. (Also see figures on previous page.)
NOTE: Use at least a 20-amp fuse for each DC breaker.
1. Attach Green wire to ground.
2. Insert CD cable connector.
3. Attach BLACK -48 volt wire to -48 volt pin on DC power source.
4. Attach RED return wire to return pin on DC power source.
