page 33 | Document No.: TH-930-001 - 1/26/2015
A10 Thunder Series 930 Installation Guide
Sliding Rail Kit Installation
Install the Inner Rails
Perform the following steps for each inner rail.:
1. Remove the Inner Rails
2. Attach the Inner Rails to the Chassis
Remove the Inner Rails
To remove the inner rails:
1. Fully extend the rail assembly until the middle and inner rails lock into place.

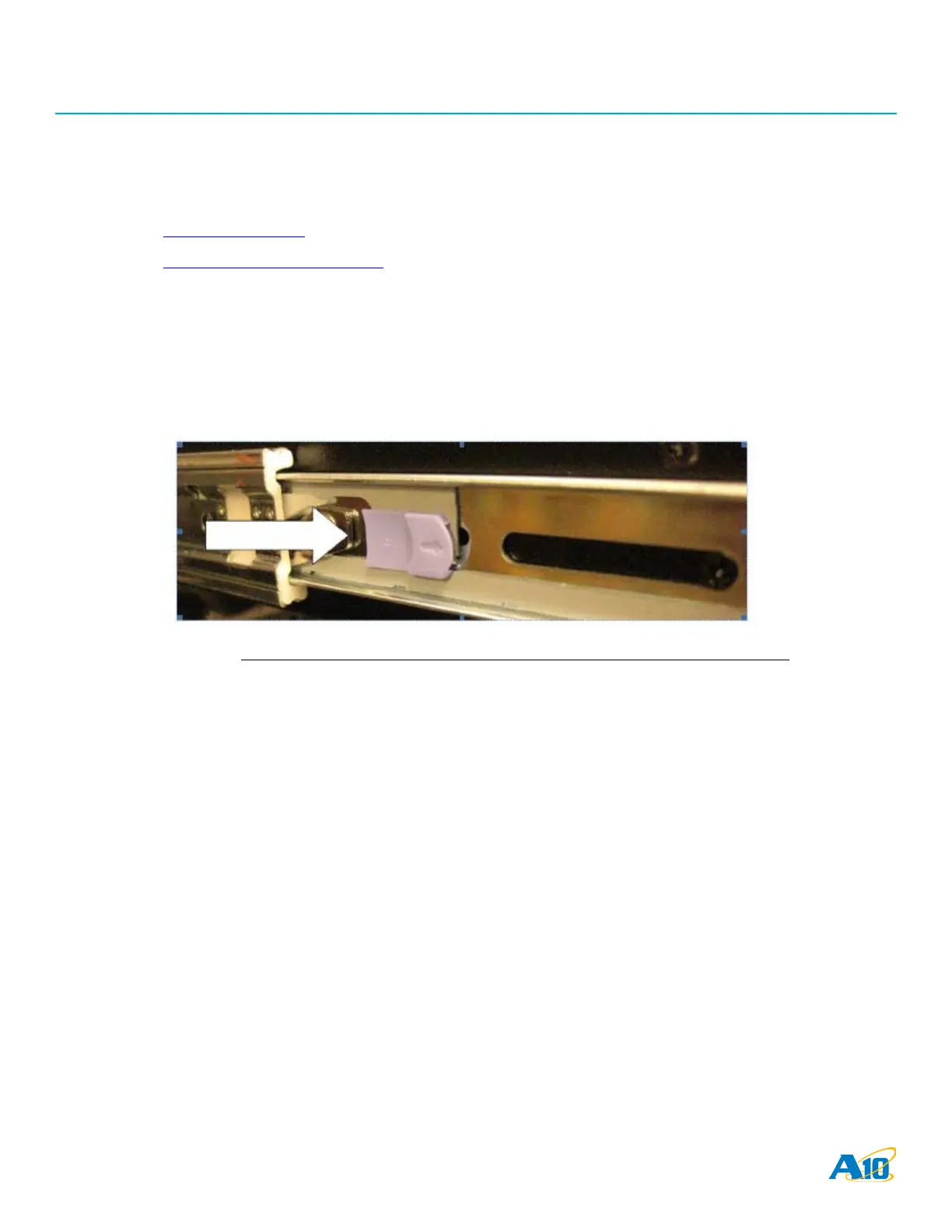

2. Release the inner rail by pressing the finger tab located near the middle rail in the direction of the arrow.
NOTE: The outer and middle rails cannot be separated.
Attach the Inner Rails to the Chassis
To attach the inner rails to the chassis:
1. Align an inner rail along one side of the chassis. Make sure the release tabs face outward, away from the chassis. Also
make sure the bend at the end of the inner rail is at the front of the chassis, not the rear.
2. Insert and fully tighten 4 black flat-head screws to fasten the inner rail to the chassis
