page 25 | Document No.: TH-930-001 - 1/26/2015
Fan Hot Swap
This chapter provides fan hot swap instructions for the device.
To determine the fan tray that needs to be replaced, run the show environment command from the CLI.
The following topics are covered:
• Fan Module Location and Fan Numbers
• Removing a Fan Module
• Inserting a Fan Module
Fan Module Location and Fan Numbers

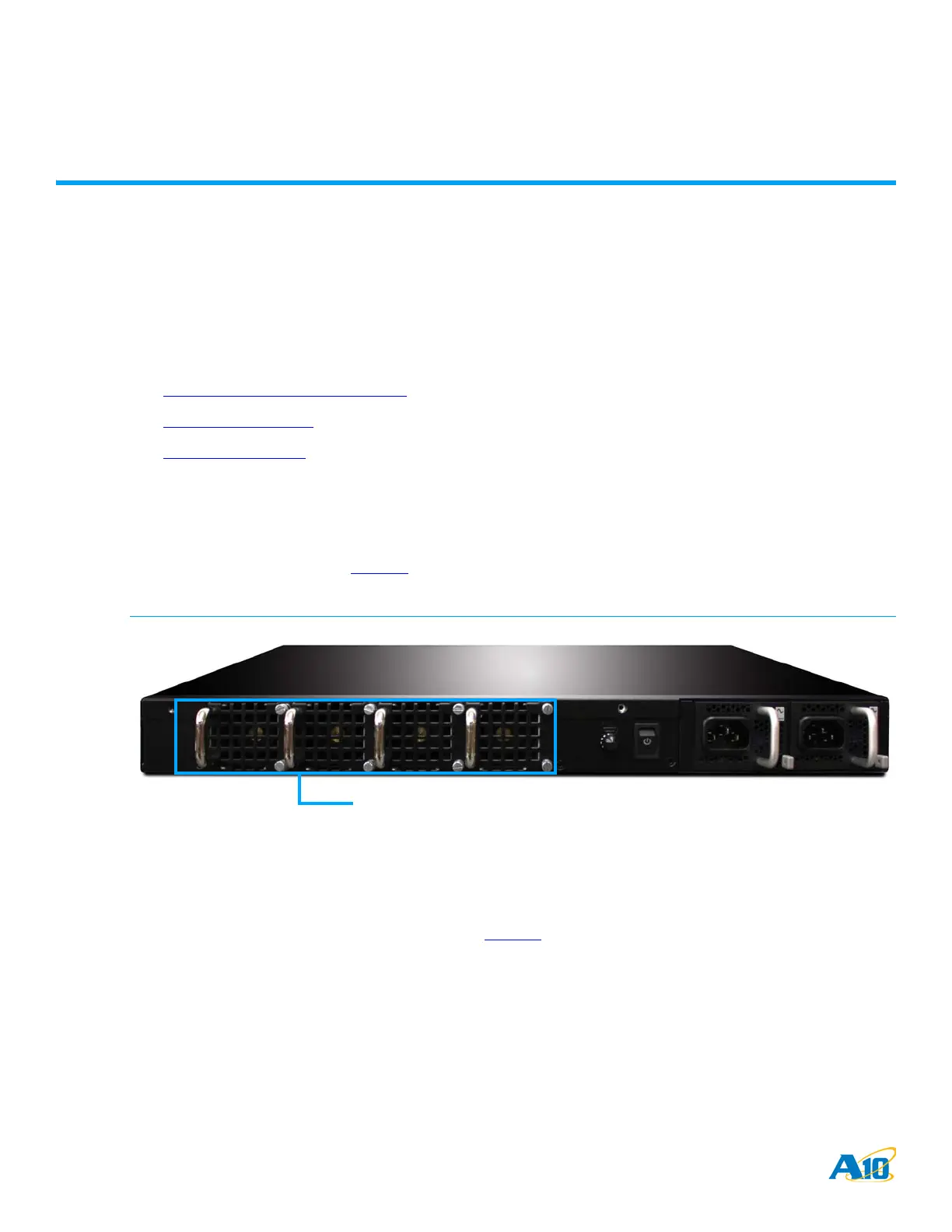

The location of the fans is shown in Figure 10. When facing the back panel, the fans are numbered 1-4 from left to right.
FIGURE 10 Fan Module Location and Fan Numbers
Removing a Fan Module
Follow the steps below in order to remove a fan module (Figure 11).
1. Loosen the screws on the right side of the fan module you want to replace.
2. Holding the two loose screws, pull the fan module away from the chassis.
Fan Modules
Fan #1 Fan #2 Fan #3 Fan #4
