Front Mount Installation
This section provides instructions for a front-mount installation.

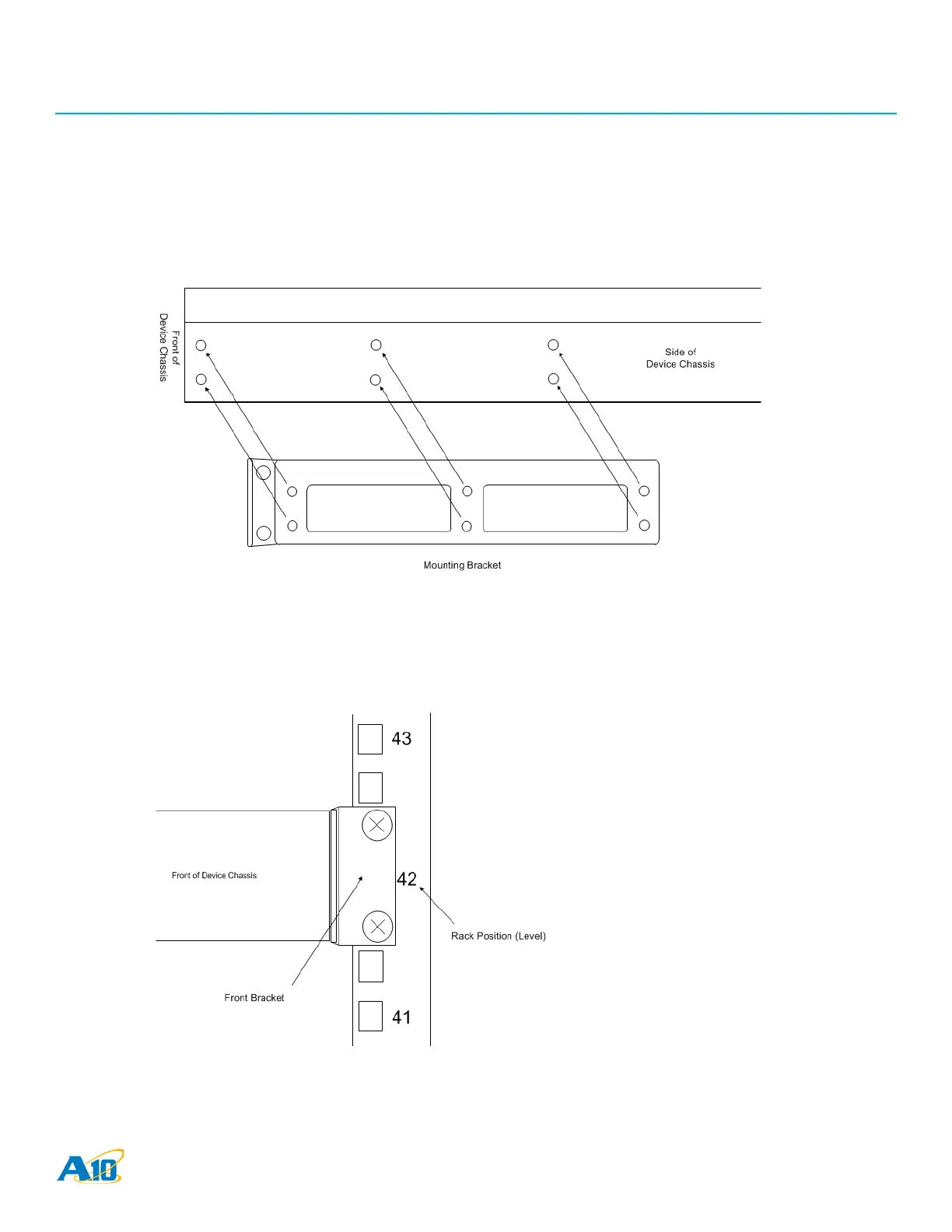

1. Align a bracket over the 6 black 4-mm flat-head screws that will be used to attach the bracket to the chassis. Make sure
to use the correct bracket. Each bracket fits on only one of the chassis sides.
2. Remove the screws.
3. Align the bracket over the screwholes and re-insert the screws. Make sure they are snug.
4. Repeat these steps to attach the other bracket.
5. Attach the device to the front of the rack. Make sure to fasten the brackets.
6. Check all the screws to verify that they are snug.
