Title block and end block
When a weight value is recorded as the GLP data, “Title block” and “End block” are inserted at the
beginning and at the end of a group of weight values, in the GLP report.
Operation

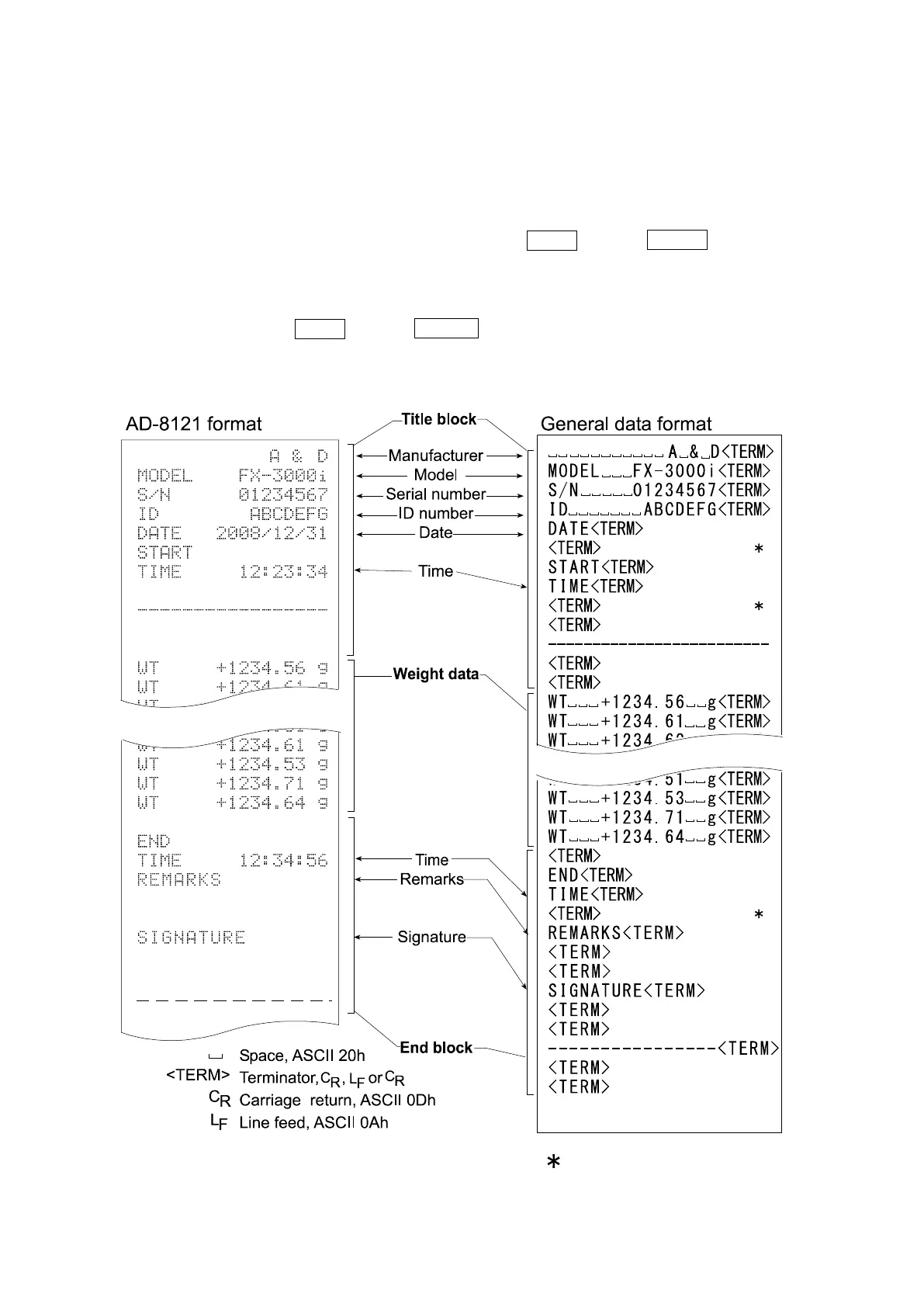

Printout examples for the FX-
i
/
FX-
i
WP
/
FX-GD series
1 With the weight data displayed, press and hold the PRINT key until S5tart is displayed. The
“Title block” is output.
2 The weight data is output according to the parameter setting of the data output mode.
3 Press and hold the PRINT key until recend is displayed. The “End block” is output.
When the setting is “info 1”: When the setting is “info 2”:
With FZ-i / FZ-iWP
/
FZ-GD series, the
time and date are added to output data.
To Next Page
