CAUTION
□Use the AC adapter specified for the balance.
□Do not connect the provided AC adapter to equipment that it is not compatible with.
□Using the wrong AC adapter with the balance may prevent the balance and its peripheral equipment from
operating properly.
The AC adapter plug is protected
against dust and may be difficult
to insert. When inserting the
plug, turn the plug while pushing
on it.

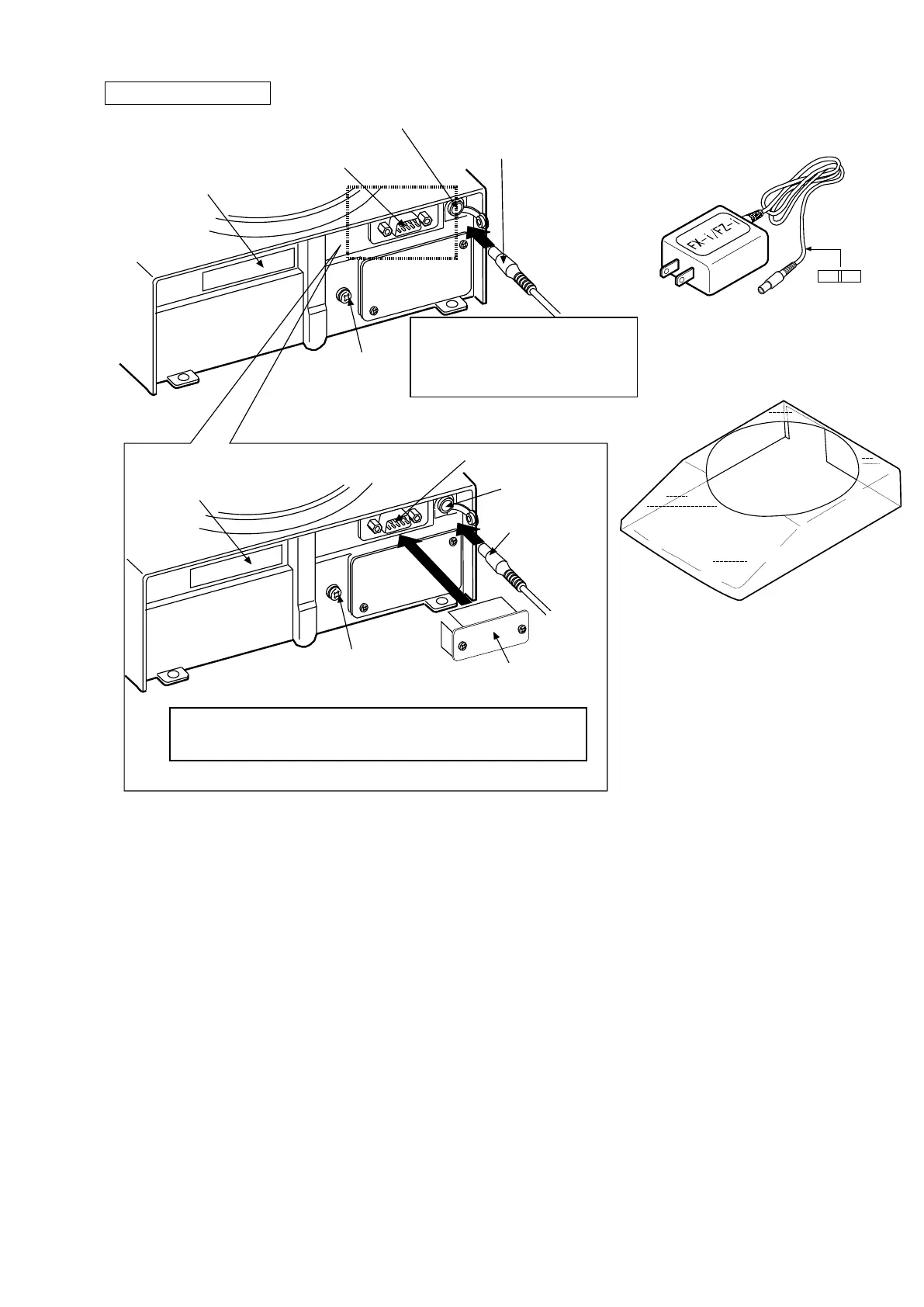

Main unit cover
AC adapter jack
AC adapter plug
RS-232C
serial interface
Grounding
terminal
Main unit rear side
AC adapter
ID label
AC adapter
Note
Please confirm that the AC
adapter type is correct
for your local voltage and
receptacle type.
Serial number
Serial number
RS-232C serial interface
AC adapter
plug
AC adapter
jack
Grounding terminal
To provide the balance with dustproof and waterproof performance, attach the terminal
cover or waterproof RS-232C cable (AX-KO2737-500).
The FZ-iWP/FX-iWP series have a terminal cover.
Terminal cover
Affix the AC adapter ID label to the
cord as shown in the figure below.
