Installing MX-ONE

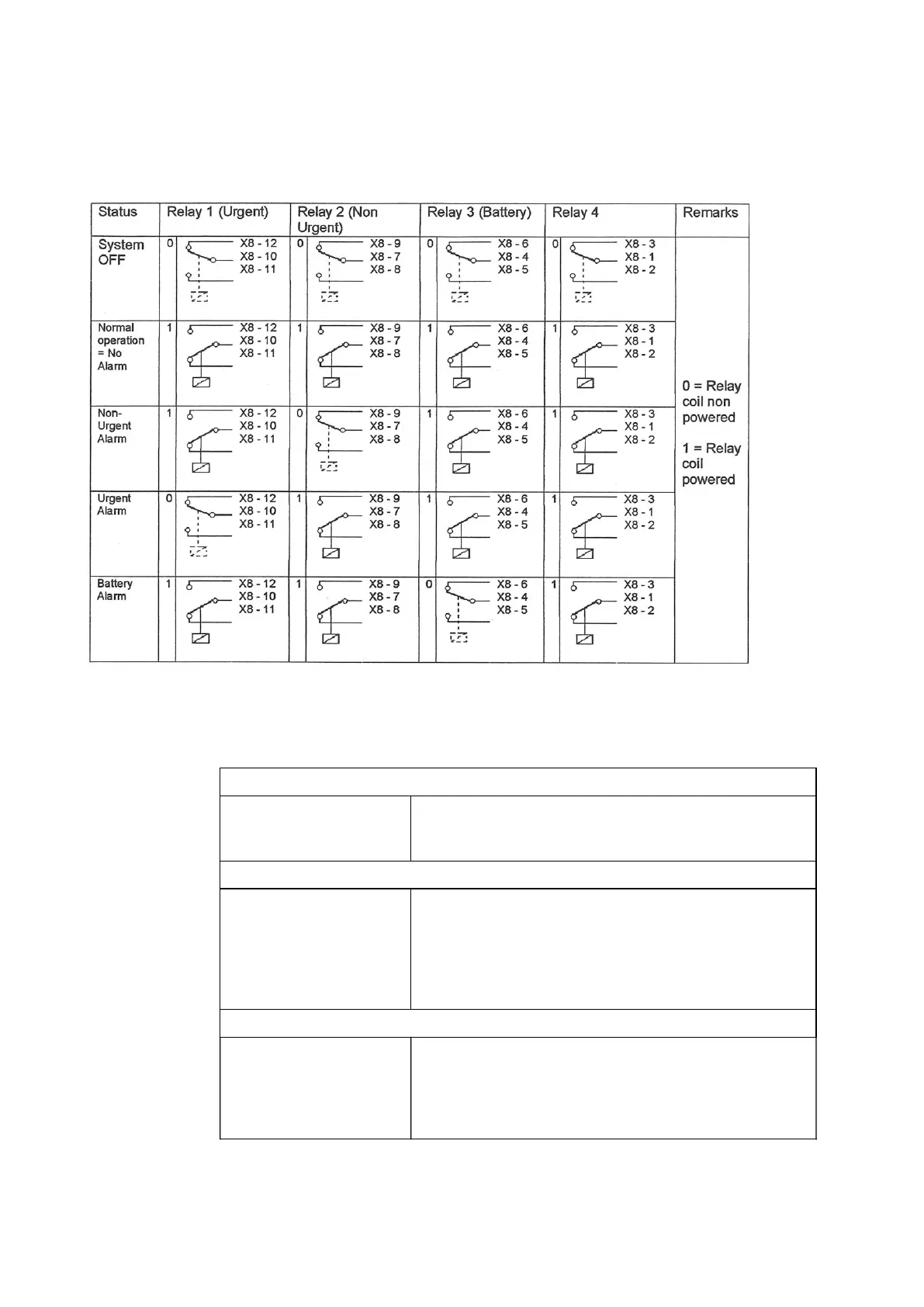

Figure 111 MDF Alarms for AC/DC Unit 115-230V CHEROKEE POWER System
The Cherokee alarm conditions are seen in Table 42 on page 136.
Table 42 Alarms from AC/DC Unit 115-230V CHEROKEE POWER System
Block 1 alarms Urgent Alarm
Relay 1
Alarm if:
More than one rectifier are faulty OR
If Alarm 4 is active
Block 2 alarms Non Urgent Alarm
Relay 2
Alarm if:
One rectifier is faulty OR
AC input is faulty OR
DC voltage is below BL1 (=48,0 V default) OR
Output breaker is active OR
Digital input_3 is active
Block 3 alarms Battery Alarm
Relay 3
Alarm if:
Battery is discharged with more than 5 A OR
Battery breaker is active OR
Battery test not succeeded OR
The battery temperature is "out of range"
136 6/1531-ASP 113 01 Uen J2 2008-07-17
