AMT/PTD/PBX/0020/2/4/EN 01/2007 Page 131
6.3 LDT/LDS card diagnosis means on NeXspan 500
The method used to check that the LDT/LDS card configuration and the DECT synchronization
clocks wiring are correct, rests on the contents reading of some accesssibles registers on these
cards.
The accessible registers are not the same ones for LDT and LDS card.
The command vport must be used under "enter command" prompt with following syntax
VPORT ADR=aaaa GP=xx CLX=y
with: aaaa=register I/O address
xx=cluster number
y=LDT/LDS card number
6.3.15Register content reading of LDT card

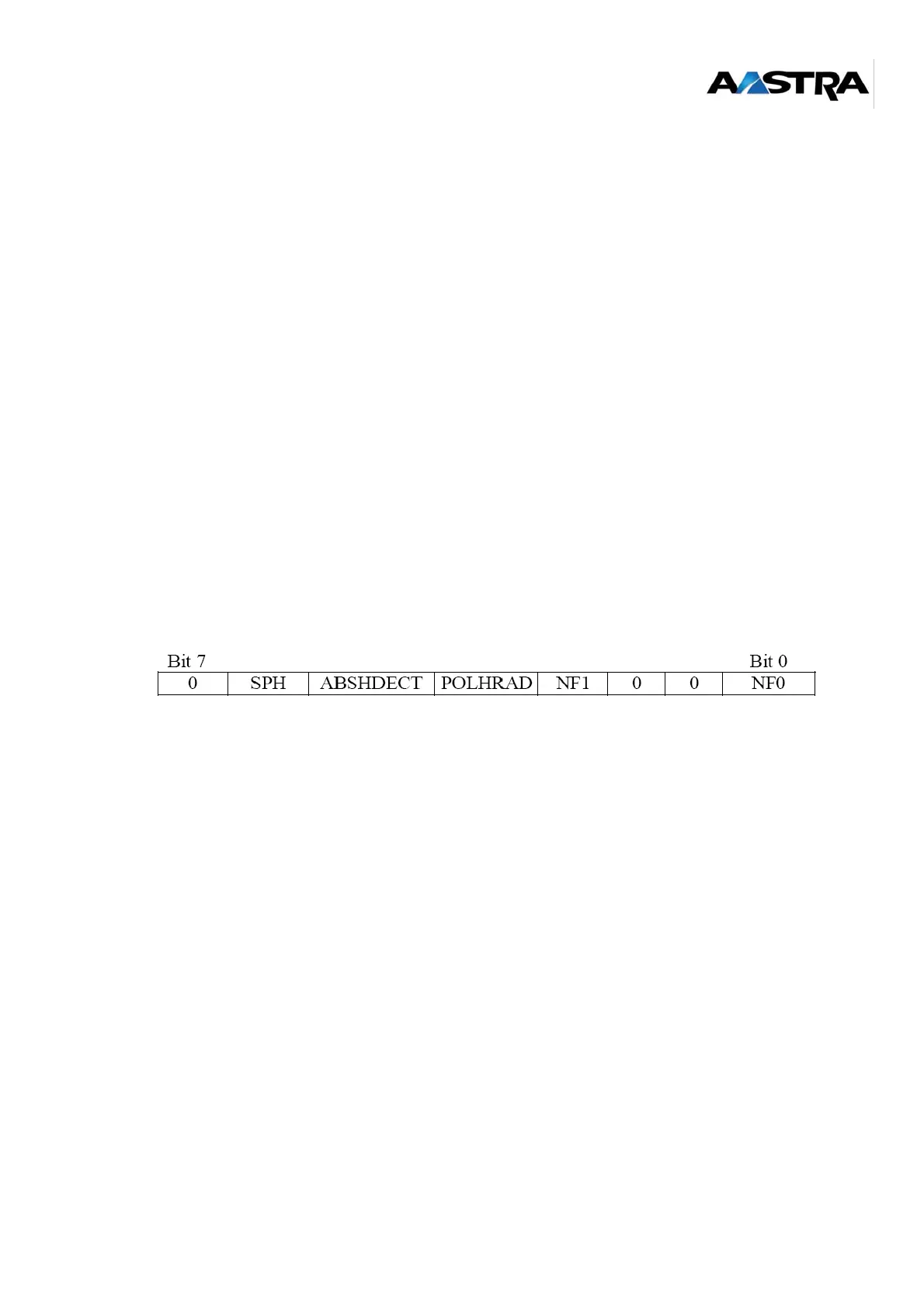

REGISTER CFG
I/O Address= 5010H
NF0=1 :
new
daughter card
of signal treatment presents (channel 0-7
)
NF1=1 :
new
daughter card
of signal treatment presents
(channel 8-15)
SPH=1 : advance or delay superiors at 16 periods of the bit clock .
POLHRAD=1 : bad DECT clock polarity
ABSHDECT=1 : DECT clock not available in entry of LDT card.
Note:
the bits SPH , POLHRAD et ABSHDECT are reset by register reading.
