4.7 Configuring S/T accesses of UCT-S, UCTS-12 and UCT-C
cards
4.7.1 S/T access of a UCT-S card

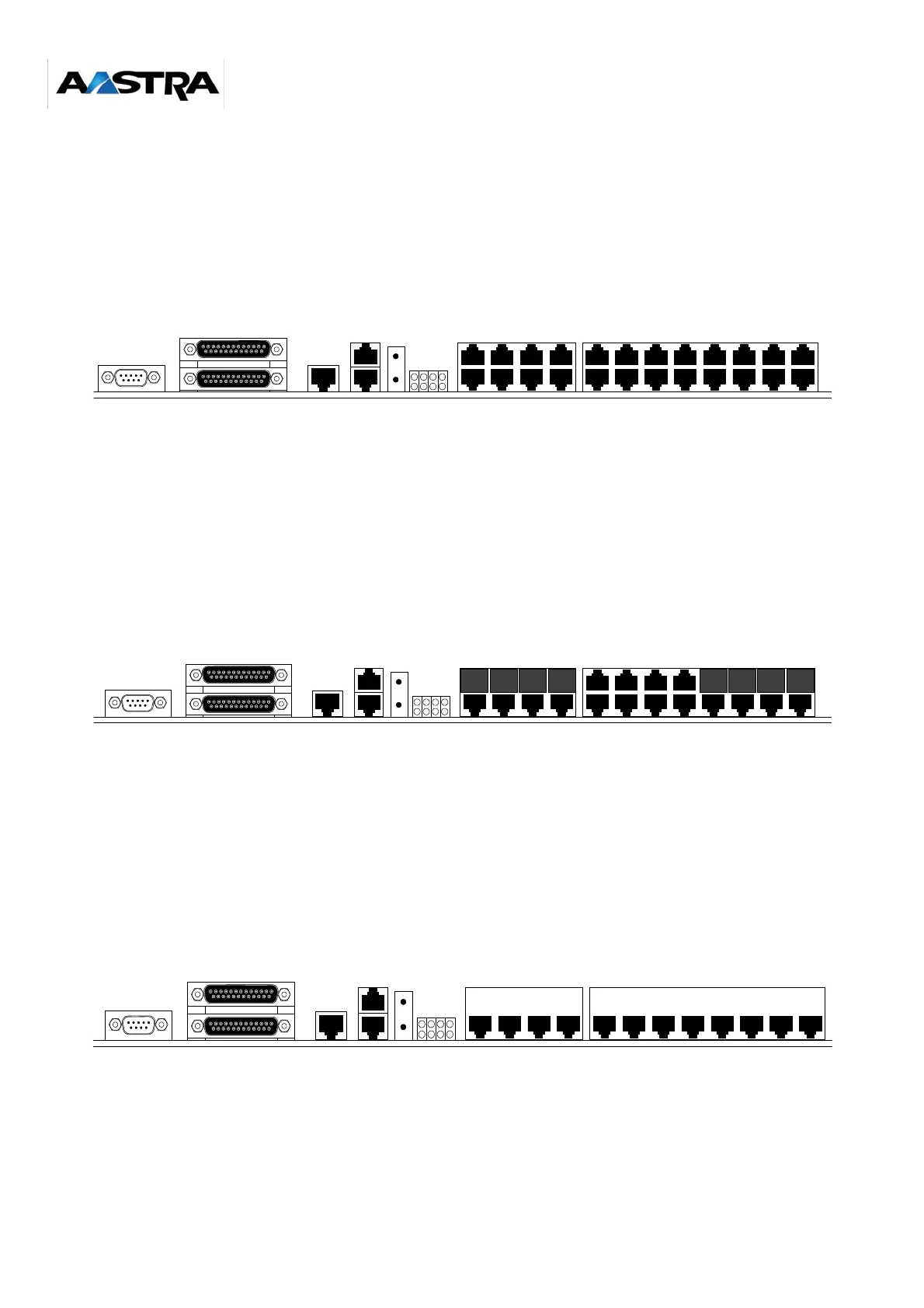

Figure 4-14: Front panel of a UCT-S card
The UCT-S card has four T0/S0 interfaces (4 RJ45 connectors) for connecting four 2-channel
DECT base stations (on UCT1-S first generation card) and 4-channel (on UCT2-S seconde
generation or UCT3-S third generation card equipped with an ADPCM16 daughter card).
4.7.2 S/T access of a UCTS-12 card
Figure 4-15: Front panel of a UCTS-12 card
The UCTS-12 card has four T0/S0 interfaces (4 RJ45 connectors) for connecting four 2-channel
DECT base stations (on UCT1S-12 first generation card) and 4-channel (on UCT2S-12 seconde
generation or UCT3S-12 third generation card equipped with an ADPCM16 daughter card).
4.7.3 S/T access of a UCT-C card
Figure 4-16: Front panel of a UCT-C card
The UCT-C card has four T0/S0 interfaces (4 RJ45 connectors) for connecting two 2-channel
DECT base stations (on UCT1-C first generation card) and 4-channel (on UCT2-C seconde
generation card equipped with an ADPCM16 daughter card).
