AMT/PTD/PBX/0020/2/4/EN 01/2007 Page 77

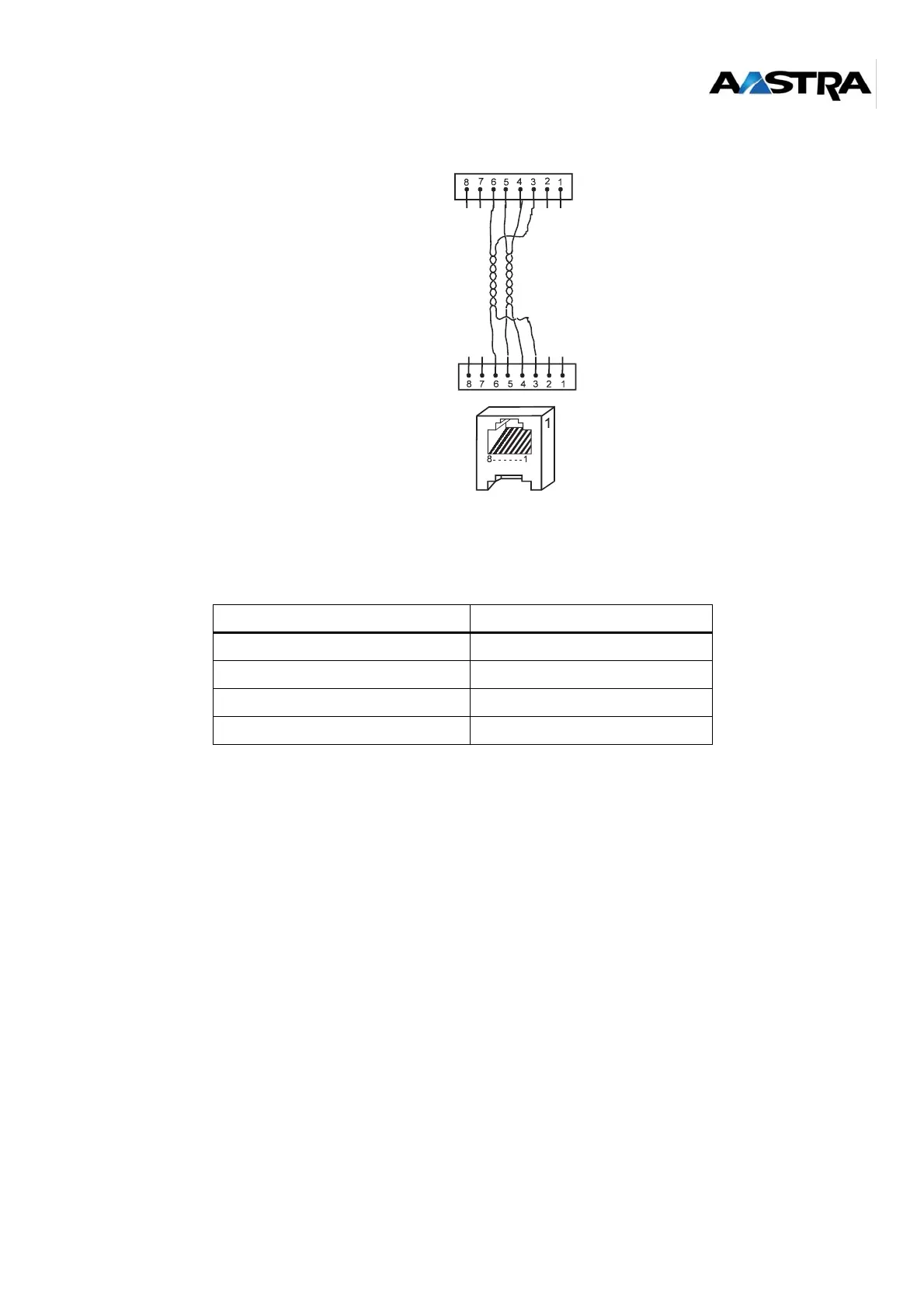

Figure 4-6: Connecting a base station to an S0 interface of an LD4 RJ card

S0 interface link with DECT base station:

Table 10: S0 interface link of an LD4 RJ card with a DECT base station

LD4 RJ card RJ45 connector Base station RJ45 connector

Pin 6 (NRD1) Pin 6

Pin 3 (RD1) Pin 3

Pin 5 (NED1) Pin 5

Pin 4 (ED1) Pin 4

ECT base station

RJ45

LD4
