Aaton Technical specifications
64

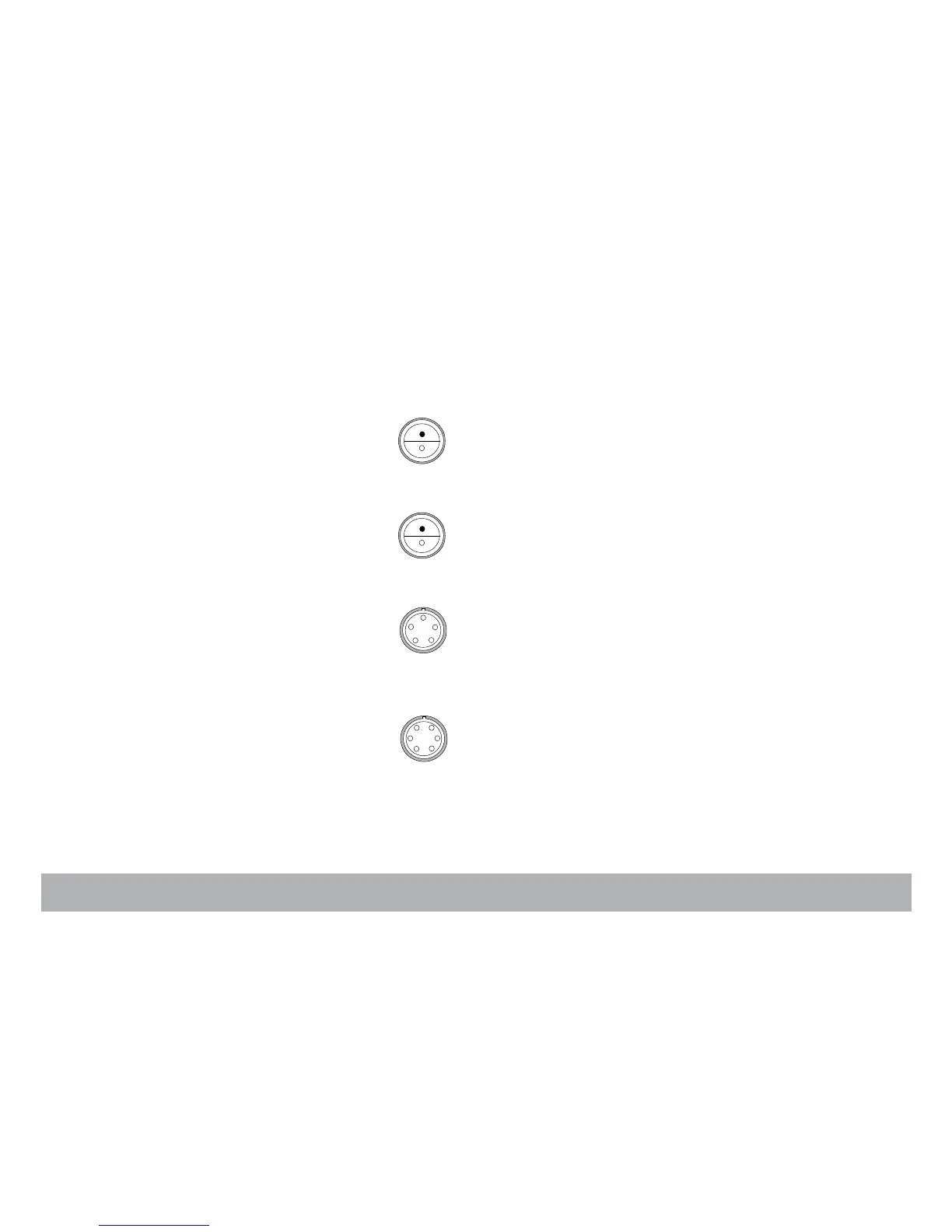

Type Functions Diagram Pin description (from user’s side)
LEMO-2 On/Off 1 Ground
2 Start
Fischer-2 Heating cable 1 Ground
2 + Batt.
LEMO-5 Timecode 1 Ground
2 SMPaTE In
3 ASCII In/out
4 NC
5 NC
LEMO-6 Power 1 Ground
2 NC
3 NC
4 + Batt.
5 NC
6 Start
1
2
1
2
1
2
3 4
5
1
2
3
4
5
6
