Technical specifications
65
Aaton

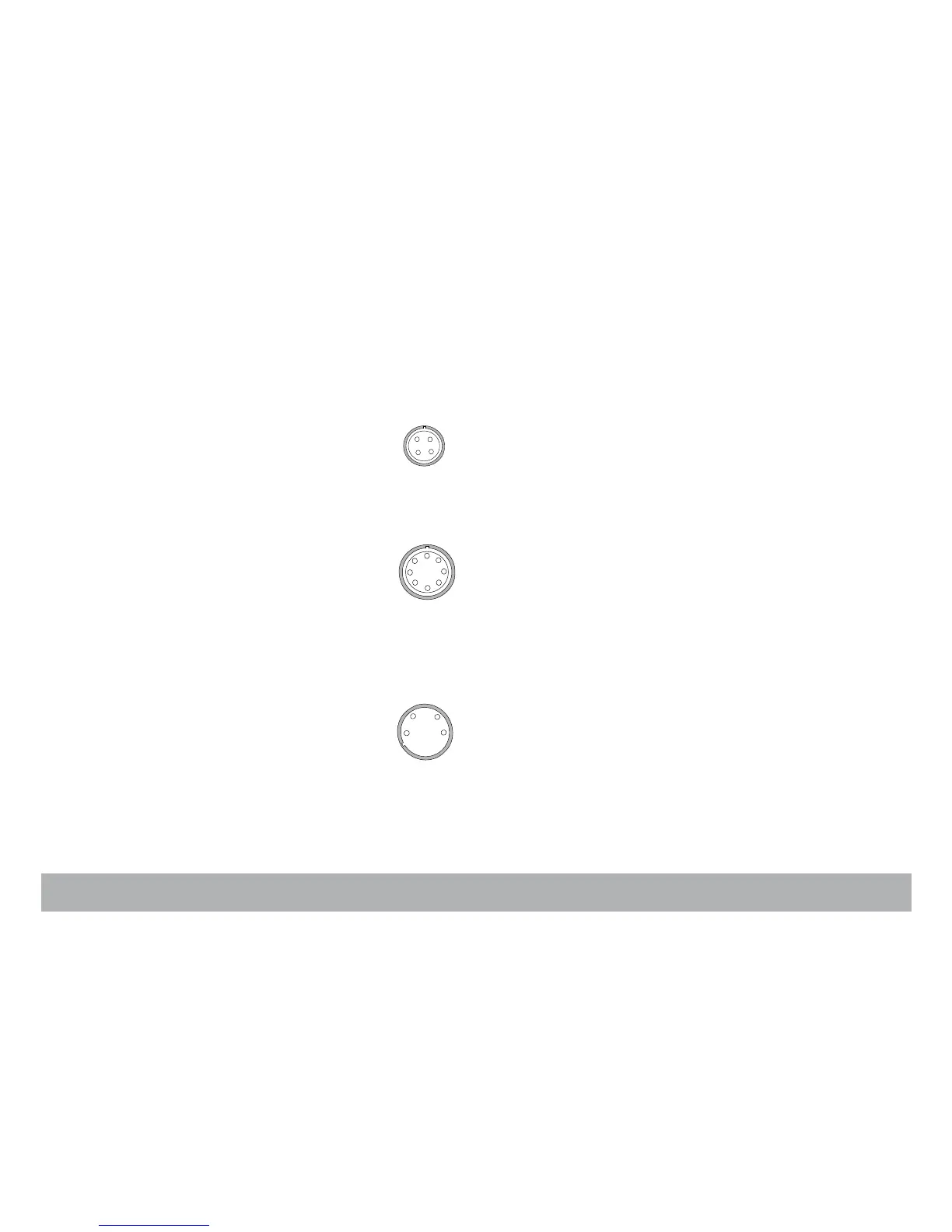

Type Functions Diagram Pin descriptions (from user’s side)
LEMO-8 Speed Controllers 1 Ground
2 One pulse per frame
3 ASCII In/Out
4 + Batt.
5 Tach. out
6 Start
7 Tach. in
8 Ground
XLR-4 Power In 1 Ground
2 Start (only wired on cameras identified by an engraved
white dot close to the bottom XLR)
3 + Batt.
4 + Batt.
1
2
3
4
5
6
7
8
1
23
4
Fischer-4 Video output 1 Ground
2 Video ground
3 Video output
4 + Batt.
1
2
3
4
