CONNECT THE CBXi-8R8(-H) TO FLX UNITS
The I/O capabilities of a CBXi-8R8(-H) can be extended by the addition of FLX-8R8 and FLX-8R8-H
devices.
These are connected to the CBXi-8R8(-H) by means of a standard module interconnector (FLX bus
connector), one of which is shipped with each FLX device.
SET THE FLX ADDRESS
Each of the FLX units connected to a single CBXi must have an address that is unique on that CBXi’s FLX
bus. The address is set by the 5-way DIP switch.

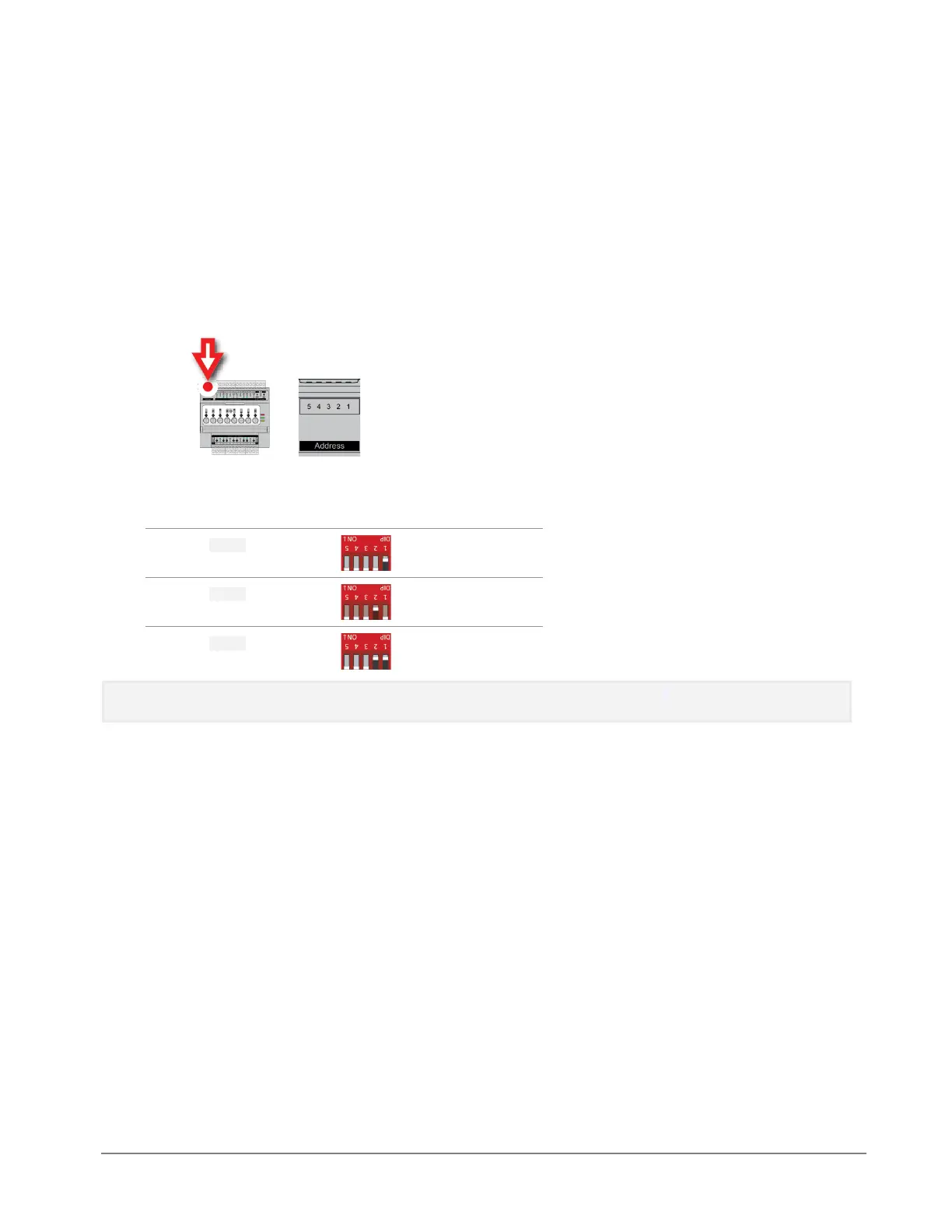

The terminals on a FLX unit will be accessible within the CBX Strategy with point numbers prefixed by
this address as illustrated below:
Note: If there are 2 devices on the same FLX bus with the same address – including
0
, the address of the CBXi -
then the bottom (yellow) status LED will blink slowly to indicate a FLX bus address clash
