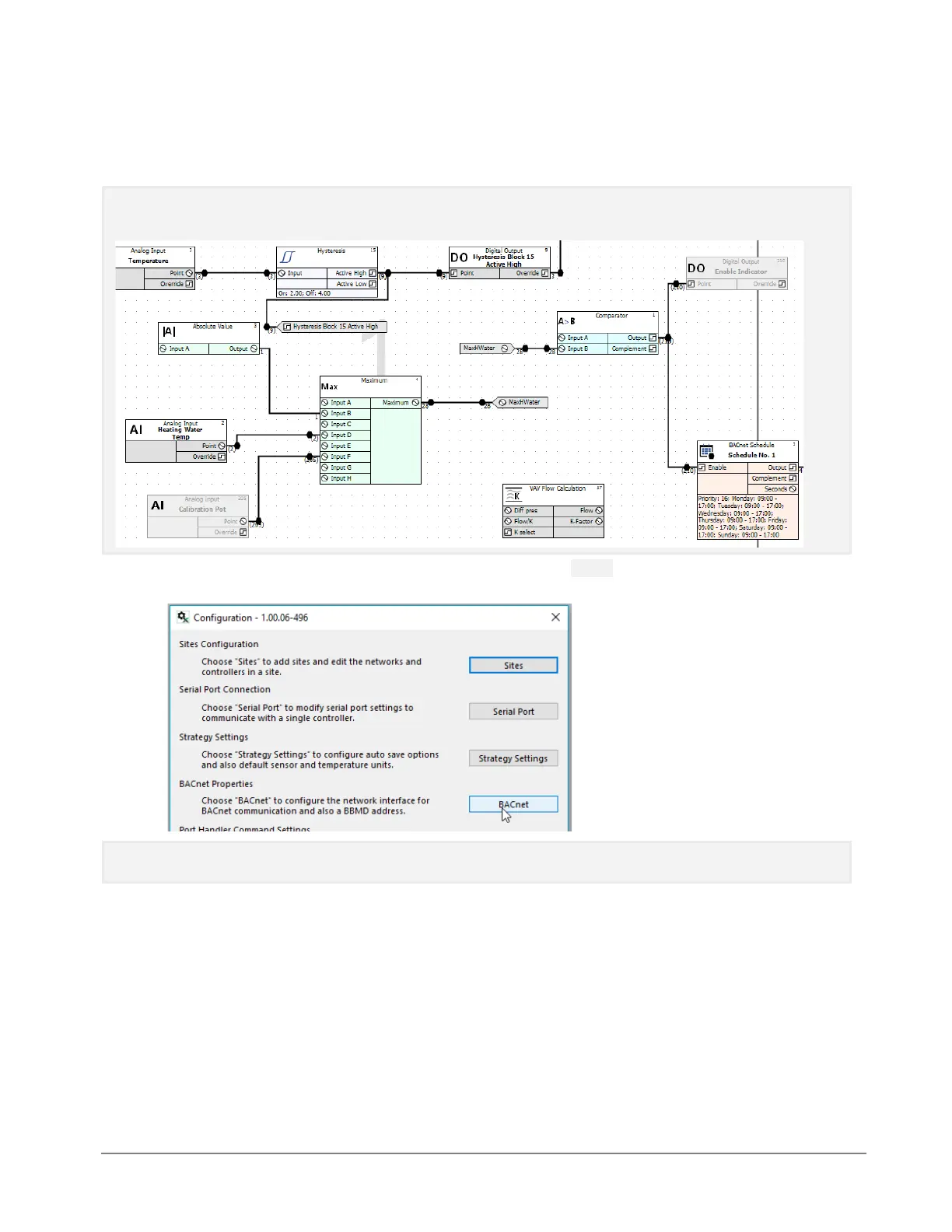

In the Strategy drawing, IO blocks can be added up to the total on the configured FLX modules plus the
CBXi onboard IO.
Note: If a FLX module is deleted from a CBXi configuration (in CXproᴴᴰ’s Configuration utility) after the
Strategy drawing has been set up, the blocks associated with that FLX’s IO will be ‘greyed out’ to
indicate that they are inactive.
Set the BACnet properties for the new Network, by clicking the BACnet button in the Configuration utility’s
main menu:
Note: If the CBXi needs to communicate with BACnet devices on other IP Subnetworks, enter the IP address of
the BBMD device.
