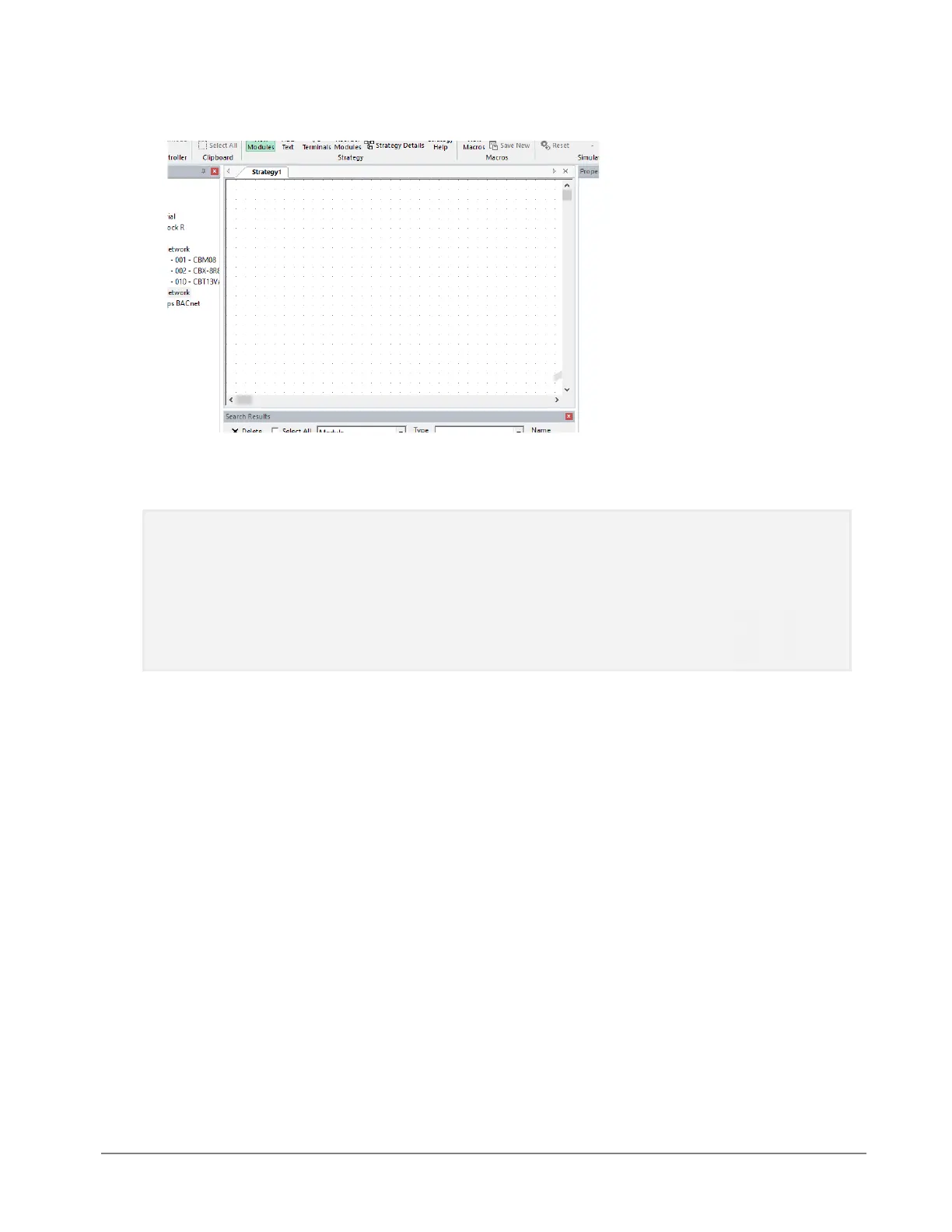

Add strategy blocks and points to create the required strategy – see MAN0133 CXpro ᴴᴰ User Guide for
more detail.
Note: In CBXi-8R8(-H) controllers there are:
• A total of 1500 strategy blocks, numbered 1 - 1500
• A maximum of 640 exposed BACnet points
• A minimum of 16 and a maximum of 64 hardware points:
◦ The first 16 are numbered 1 - 16, representing the internal I/O in the CBXi
◦ The 16 points in an attached FLX with MS/TP address set to “1” are numbered 101 … 116
◦ The 16 points in an attached FLX with MS/TP address set to “2” are numbered 201 … 216
◦ The 16 points in an attached FLX with MS/TP address set to “3” are numbered 301 … 316

ABB CBXi Series Specifications

General

Brand	ABB
Model	CBXi Series
Category	Controller
Language	English
