Installation
50
1SVC 440 795 M0100
CL-LER.18AC2, CL-LER.18DC2

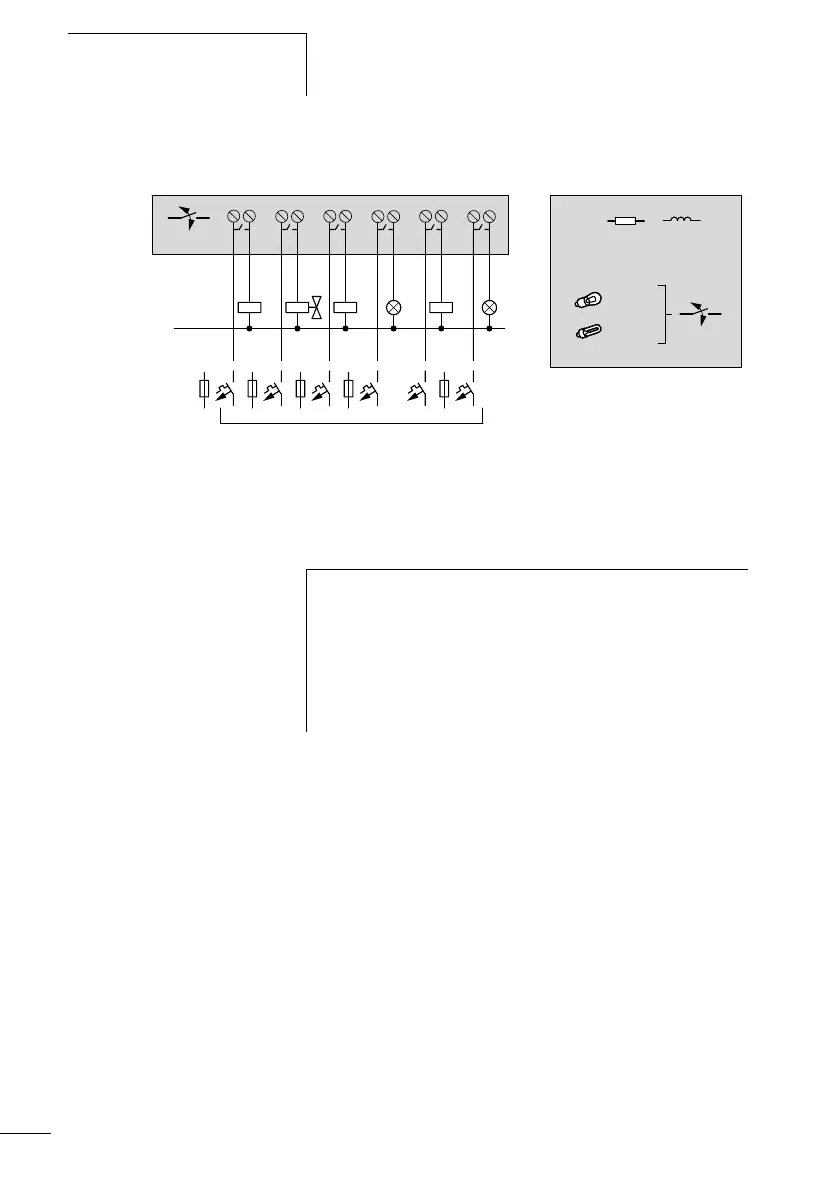

Figure 29: Relay outputs CL-LER.18AC2, CL-LER.18DC2
Unlike the inputs, the outputs can be connected to different
phases.
0 V H, N
F
8 A/B 16
L1, L2, L3 (115/230 V h)
+ 24 V H
25 000
R
24 V H
8A
115 V h 8A
230 V h 8 A
2A
2A
2A
1000 W
10 x 58 W
12 2 2 2 2 2
1
1
1
1
1
10 000 000
S6S5S4S3
S2
S1
j
Caution!
Do not exceed the maximum voltage of 250 V AC on a
relay contact.
If the voltage exceeds this threshold, flashover may occur
at the contact, resulting in damage to the device or a
connected load.
