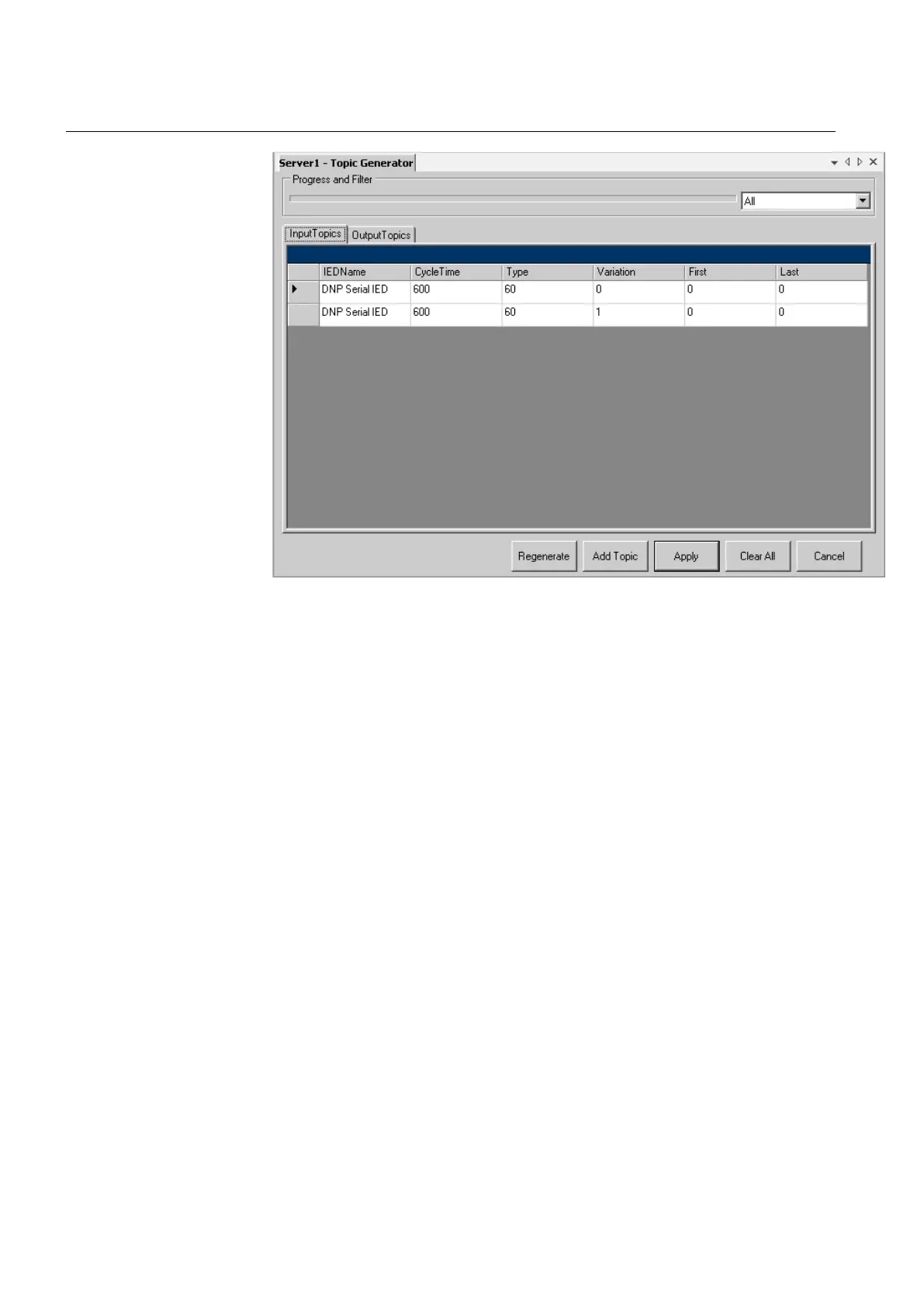

Figure 3.5-1 Default Topics Generated
In most case, modifications to the automatically generated topics are not required.
However, some topic definitions may need to changed, polling interval for example, in
order for some devices to work properly
To add a new topic:
1. In the DNP Topic Generator window, click Add Topic.
2. An AddTopic dialog opens. Fill in the data and select the appropriate IED and topic
format from the drop-down menus..
3. Click Add to close the dialog.
4. Click Apply to add the topic to the configuration.
In Add Topic Dialog, you may select which IED this topic is associated with, and the
type of topic
To Add an event poll topic, you may specify polling interval in hundreds of millisecond
and number of events to poll (Value 0 = all events). If you want to poll all events every
1 second, you may setup as below in Add Topic dialog.
46
1MRS756566
COM600 Station Automation Series
DNP 3.0
LAN/WAN Master
(OPC) 3.2
User's Guide
