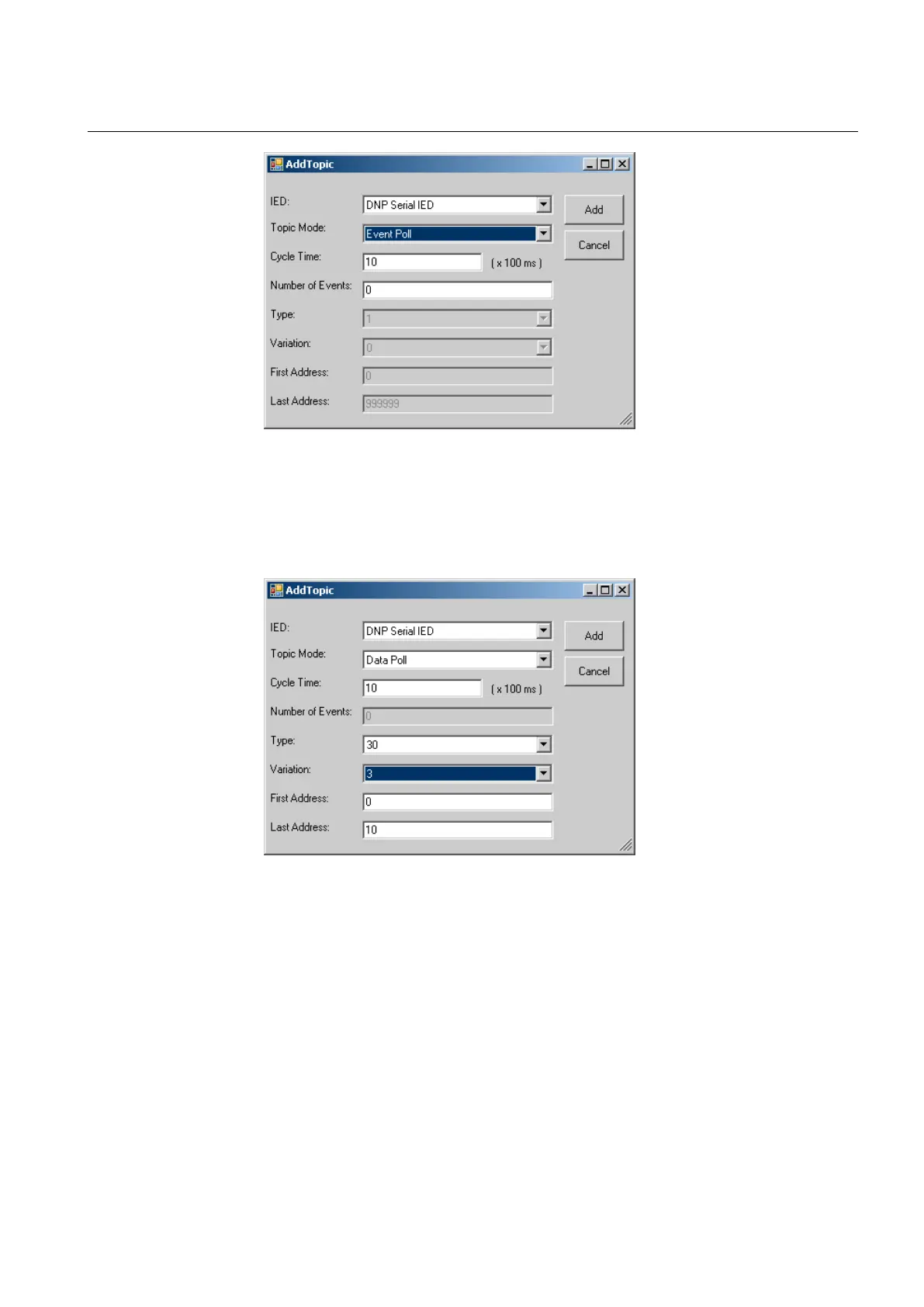

Figure 3.5-2 Add Event Poll Topic
To Add an data poll topic, you may specify polling interval in hundreds of millisecond,
data object type and variation, lower and upper limit of index range. If you want to poll
32 bit analog without flag every 1 second, you may setup as below in Add Topic dialog.
Figure 3.5-3 Add Data Poll Topic
To modify an existing topic:
1. In Topic Generator Tool, change settings by entering value or selecting from drop
down list.
2. Click Apply button to save the topic to the configuration.
