EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 113
Adresses
The IP address, IP address screen and IP gateway address need
to be queried from the system administrator.
Note
The address bits variable from the address screen may not be
set to 0 or 1 (broadcast addresses).
MAC address
The 12 character MAC address is unique worldwide and is stored
in the device during manufacture. It cannot be changed.
Setting the IP address in the computer

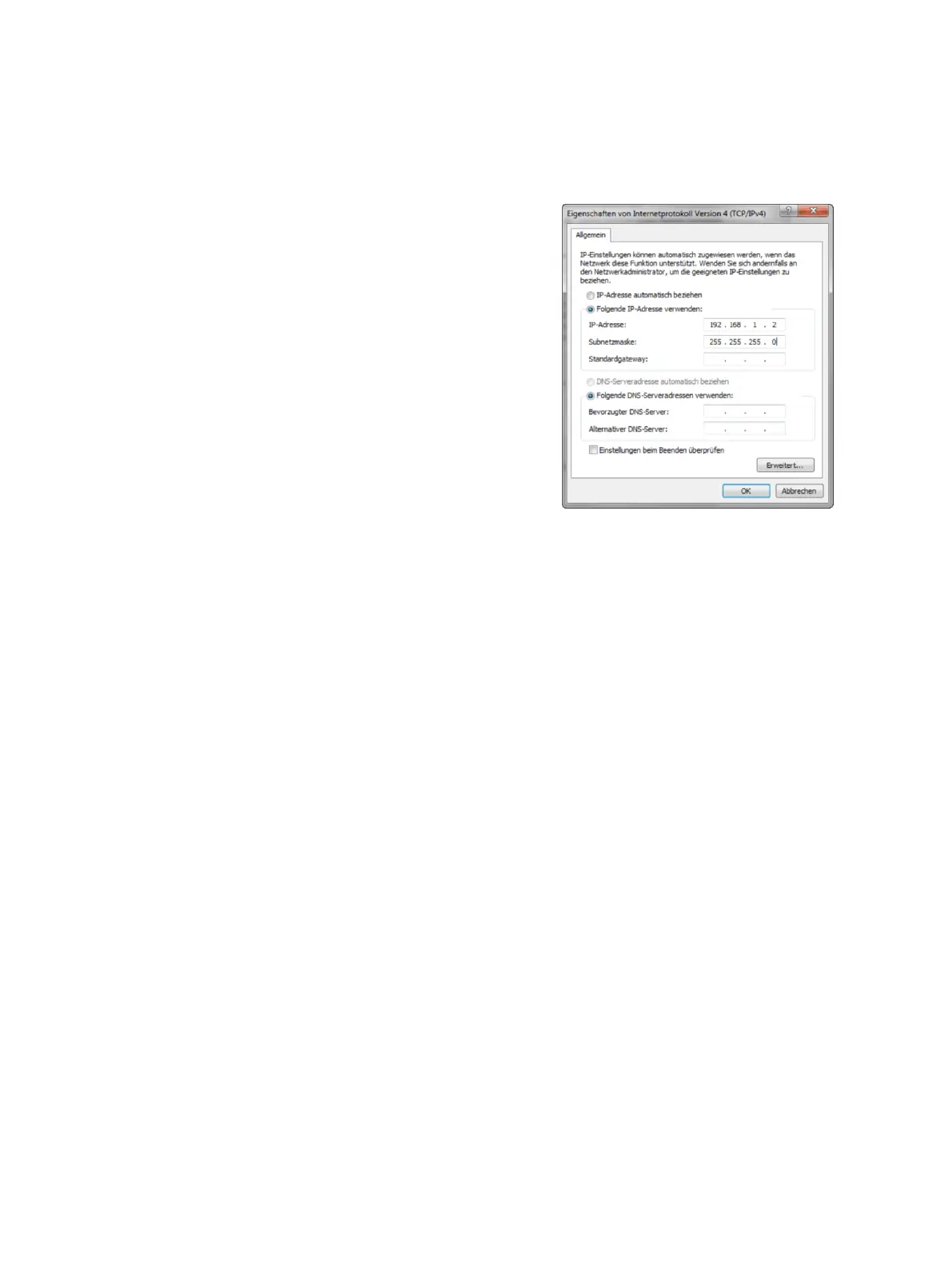

Figure 56: Microsoft Windows® IP properties (example)
1. Call up ‘Start’ → ‘System control’ → ‘Network and release
center’.
2. Click on ‘Change adapter settings’.
3. Right-click on ‘Ethernet’ (Windows 10®) or ‘Local Area
Connection’ (Windows 7®) → ‘Properties’
4. in the network tab → double-click on ‘Internet Protocol
Version 4 (TCP/IPv4)’
5. In the ‘General’ tab, you can configure the IP settings (see
Setting the IP address on page 153) appropriate for the
configuration of the gas analyzer and confirm the settings by
clicking on ‘OK’.
Establishing and testing the Ethernet connection
Cables
The cables are standard Ethernet cables and are in the scope of
delivery of the gas analyzer.
Testing the Ethernet connection
1. Call up ‘Start’ → ‘Input request’.
2. Enter ‘ping IP-Adresse’ (along with the IP address of the gas
analyzer) and press the Enter button.
If the connection is OK, the gas analyzer reports: ‘Response from
IP address: Bytes=32 Time<10ms TTL=255”
(the numbers are device-specific).
If the message ‘Request timeout’ appears, the connection is not
OK.
The network name of the gas analyzer can also be entered
instead of the IP address.
