… 8 Operation
… Communication between gas analyzer and computer
Establish communication between configurator and gas
analyzer

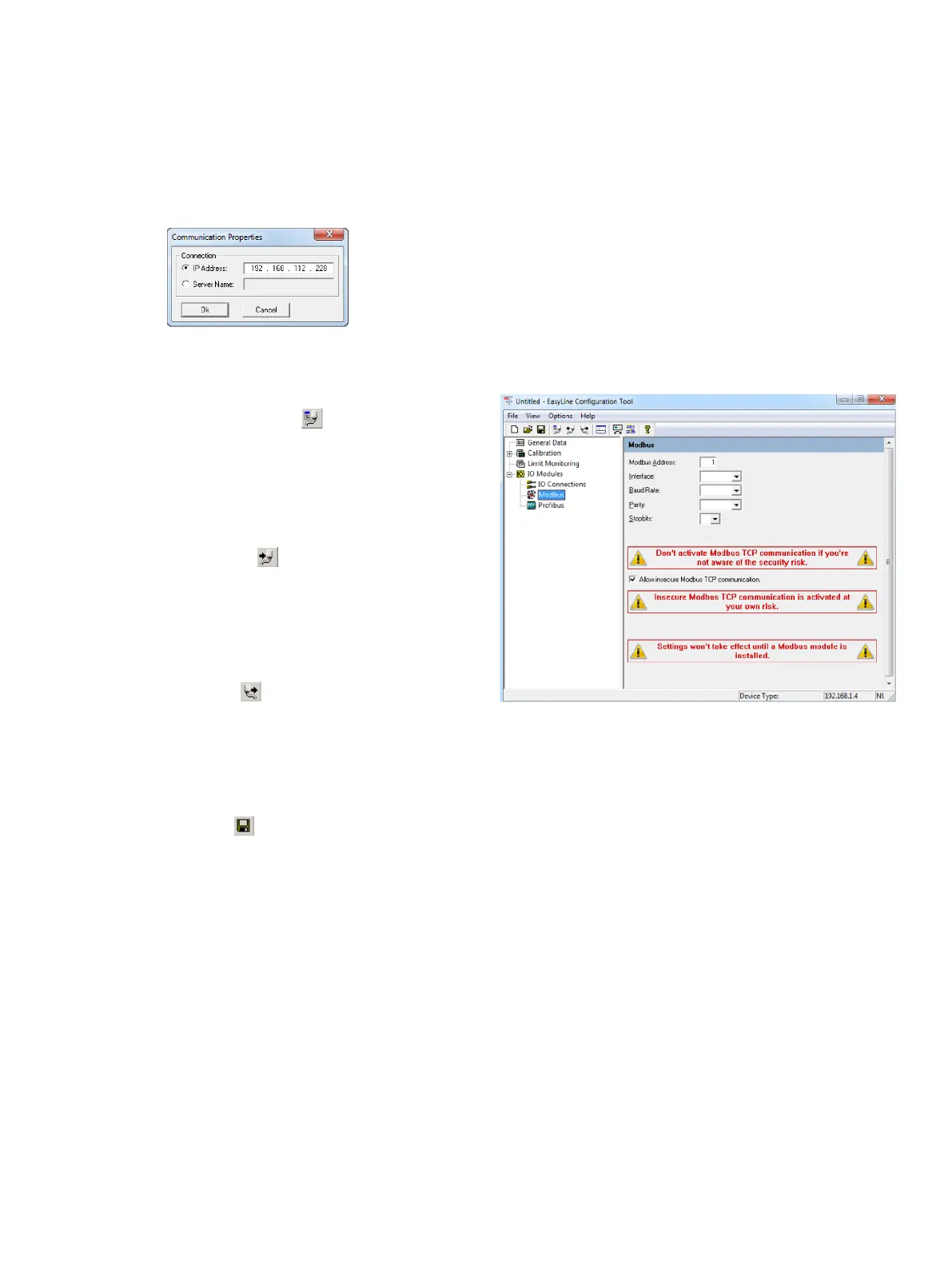

Figure 57: ‘Communication Properties’ menu in ECT
The communication between the configurator and the gas
analyzer is established in the ‘Options / Communication
Properties...’menu or by clicking on the icon.
Either the IP address or the network name (server name) of the
gas analyzer should be entered.
Receiving configuration data
Once communication is established, configuration data can be
received from the gas analyzer.
‘File / Receive Data’ menu or icon.
Sending configuration data
Once the configuration data has been processed, it can be sent
to the gas analyzer.
The configuration is active after an automatic restart of the gas
analyzer.
Menu ‘File / Send Data’ or icon.
Saving configuration data
The gas analyzer configuration data can be stored on the
computer.
The saved configuration file can be processed later and sent to
the gas analyzer.
‘File / Save As...’ menu or icon.
Release of communication via Modbus® TCP/IP
In the EL3000, communication via Modbus® TCP/IP is blocked on
all Ethernet interfaces by default.
Note
The Modbus® protocol is an unsecured protocol (in the meaning
of IT security or cybersecurity), as such the intended application
should be assessed before implementation to make sure that
the protocol is suited.
Release communication via Modbus® TCP/IP
Figure 58: Modbus configuration in ECT
Implement the following steps to release communication via
Modbus TCP/IP:
1. Select ‘…\IO Modules\Modbus’ in the menu tree of the
ECT Controller.
2. Select the ‘ Allow insecure Modbus TCP
communication’ checkbox.
3. Set the required Modbus parameters, save the settings
and transfer them to the gas analyzer.
4. Communication via the Modbus TCP/IP protocol has now
been released.
Note
You will find detailed information regarding the Modbus® in the
description of the interface ‘COM/EL3000/MODBUS’.
