62 EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D
… 5 Installation
… Position and design of the gas connections
Gas connections Limas23 (model EL3040)

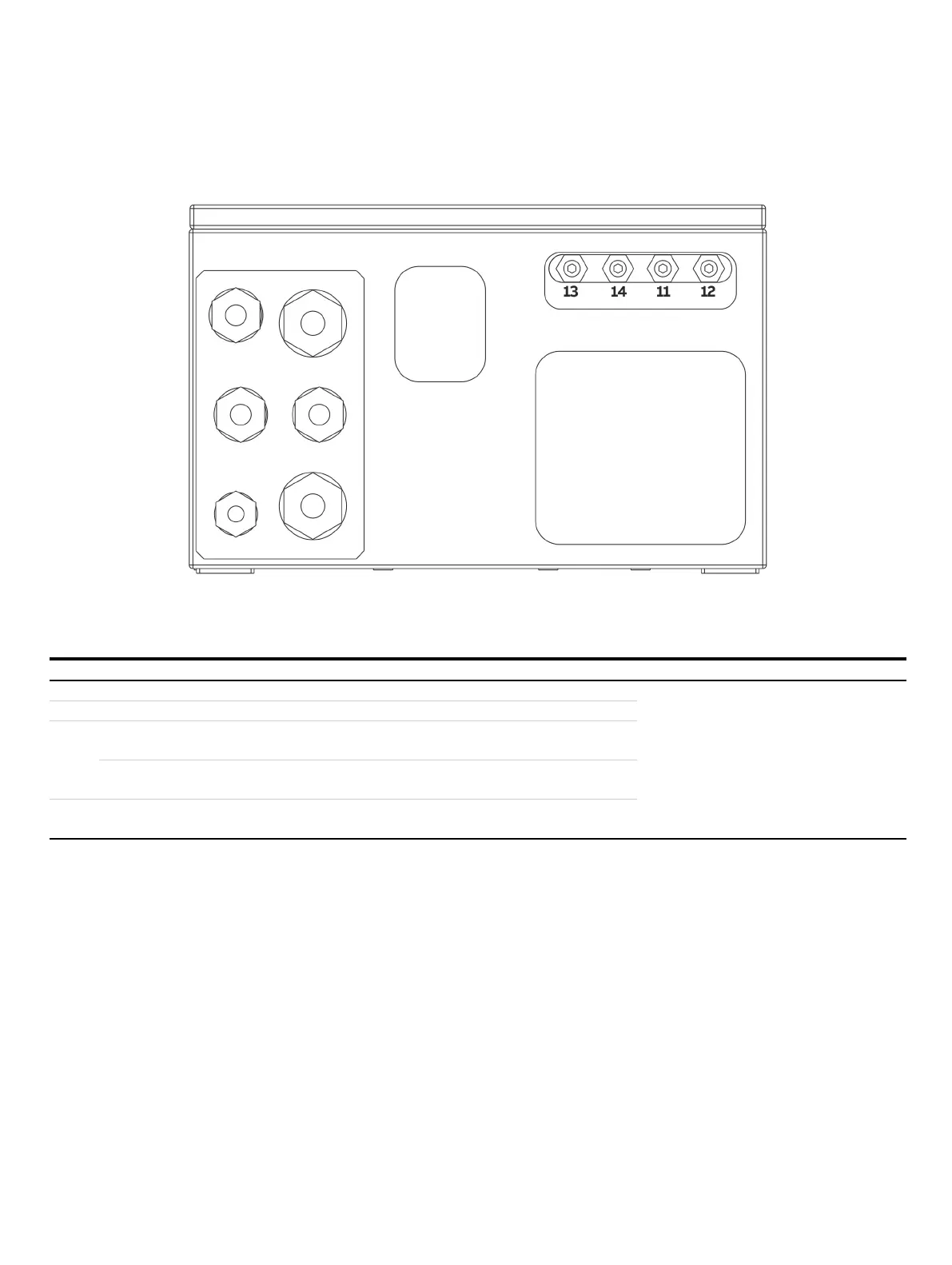

Figure 15: Gas connections Limas23 (model EL3040)
Limas23: Gas connections
Pos.
Connection
Supplementary information
Version
13
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
•
Connection of hose lines:
straight screw-
in socket (PP) with hose nozzles
for hoses with inside diameter 4 mm
(included in scope of delivery)
•
Connection of piping:
screw-in fittings
(not included in scope of delivery)
14
Sample gas outlet
—
11
Pressure sensor
For ‘Pressure sensor connected to the outside by hose’
option
Purge gas inlet (housing)
Not for ‘Pressure sensor connected to the outside by hose’
option
12
Purge gas outlet (housing)
Not for ‘Pressure sensor connected to the outside by hose’
option
Note
The pressure sensor (standard, not for the ‘pressure sensor connected to outside by hose’ option), and the oxygen sensor (option)
are internally connected in the outlet of the sample cell.
