EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 67
Gas connections Limas23 with Magnos28 (model EL3040)

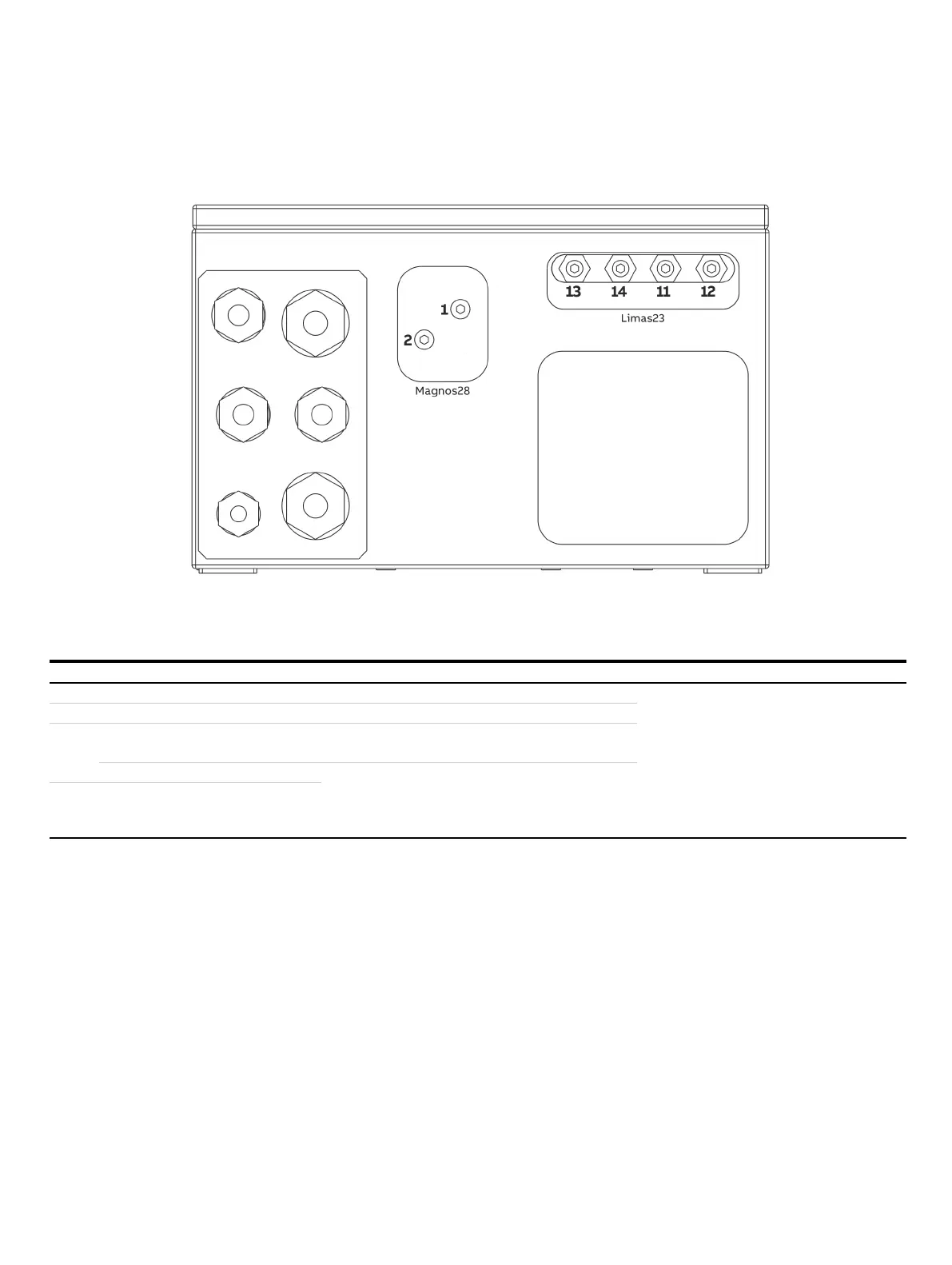

Figure 19: Gas connections Limas23 with Magnos28 (model EL3040)
Limas23: Gas connections
Supplementary information
⅛ NPT female thread (stainless steel 1.4305)
Connection of hose lines:
straight screw-
in socket (PP) with hose nozzles
for hoses with inside diameter 4 mm
(included in scope of delivery)
Connection of piping:
screw-in fittings
(not included in scope of delivery)
‘Pressure sensor connected to the outside by hose’
Purge gas inlet (housing)
Not for ‘Pressure sensor connected to the outside by hose’
option
Purge gas outlet (housing)
Note
• The oxygen sensor is not possible in combination with Magnos28
• The pressure sensor (default, not used with the "pressure sensor outwards" option is internally connected at the output of the
sample cell.
