Gas connections Magnos28 (model EL3040)

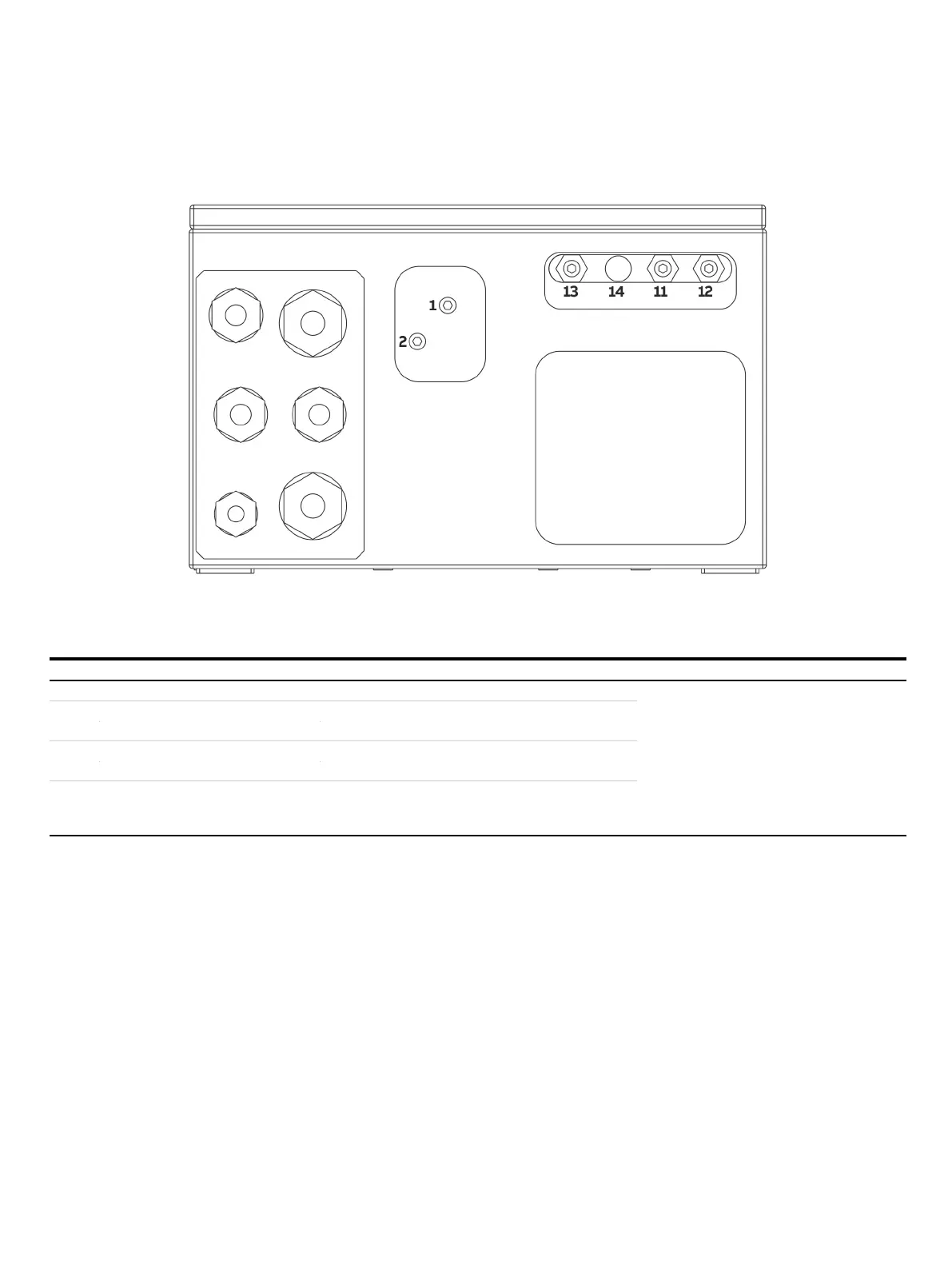

Figure 25: Gas connections Magnos28 (model EL3040)

Magnos28: Gas Connections

Pos.

Connection

Supplementary information

Version

Sample gas inlet

—

⅛ NPT female thread (stainless steel 1.4305)

•

Connection of hose lines:

straight screw-

in socket (PP) with hose nozzles

for hoses with inside diameter 4 mm

(included in scope of delivery)

•

Connection of piping:

screw-in fittings

(not included in scope of delivery)

Sample gas outlet

—

Purge gas inlet

(housing) —

Purge gas outlet (housing)

—

Pressure sensor

—

Not assigned

—

Note

The pressure sensor (see Pressure sensor on page 36) is installed as an option.

For a precise pressure correction as well as for measurements in suppressed measuring ranges, the sensor and sample gas outlet

have to be connected to each other via a T-piece and with the use of short conductors.

The lines must be as short as possible or – in the case of a greater length – have a sufficiently large inside diameter (min. 10 mm) so

that the flow effect is minimized.
