Gas connections Magnos27 with Uras26 (model EL3020)

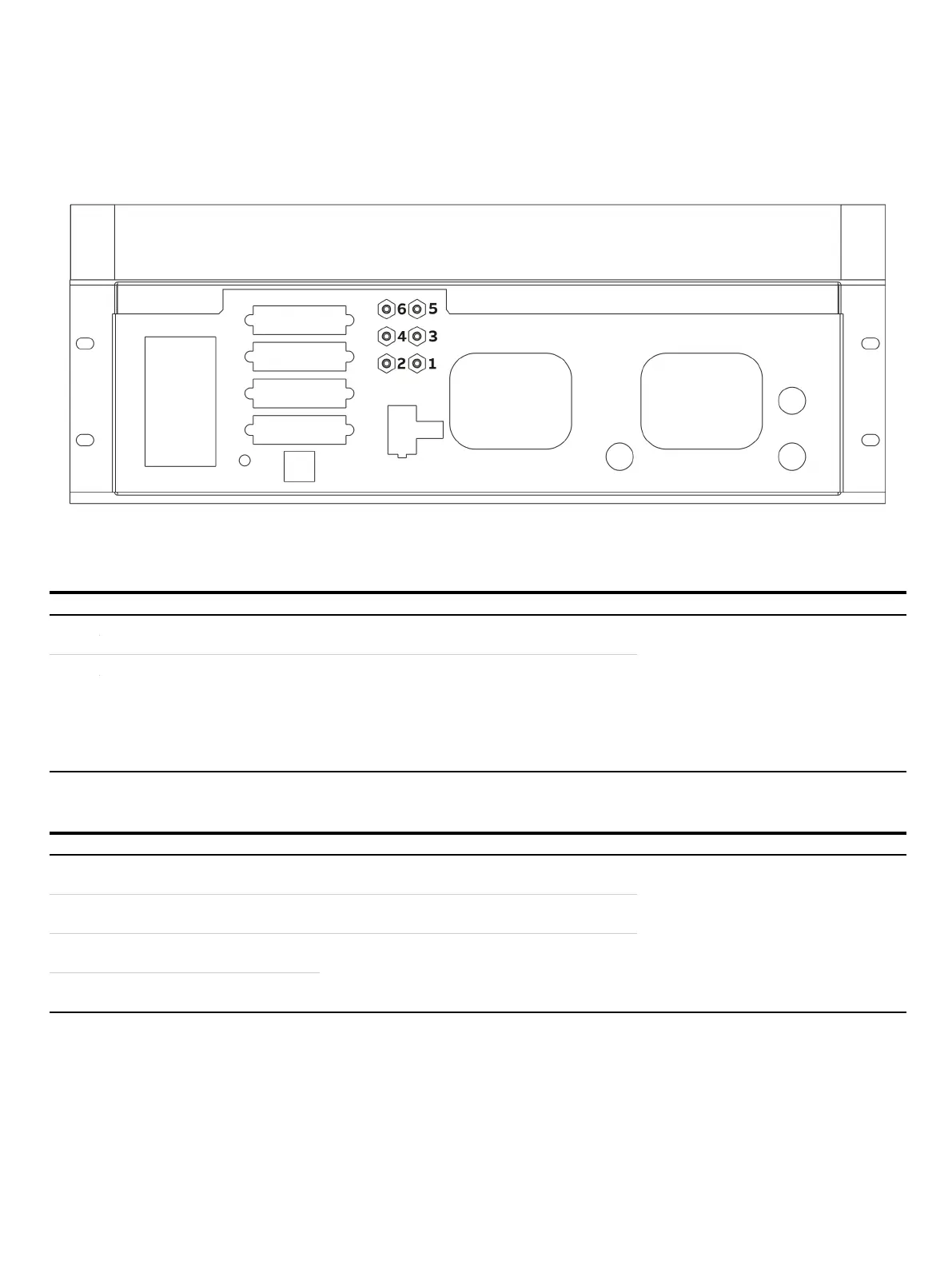

Figure 27: Gas connections Magnos27 with Uras26 (model EL3020)
Magnos27: Gas Connections
Supplementary information
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
Not for the ‘pressure sensor connected to the outside by
hose’
option, not in combination with Uras26 with two
cells and separate gas paths
Purge gas outlet analyzer
For the ‘pressure sensor connected to the outside by hose’
option, not in combination with Uras26 with two cells and
separate gas paths
Uras26: Gas connections
Supplementary information
—
Screwed connections with hose nozzles
1.4305) for hoses with 4
(included in scope of supply)
Sample gas outlet
(gas path 1)
—
For optional second sample gas for Uras26 with two cells
and separate gas paths
Note
The pressure sensor (standard, not for the ‘pressure sensor connected to outside by hose’ option) is internally connected as follows:
• In the output of the sample cell 1, for a sample cell and for two sample cells with separate gas paths.
• In the output of sample cell 2 for two sample cells in series.
