ABB EasyLine EL3000 User Manual

78 EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D
… 5 Installation
… Position and design of the gas connections
Gas connections ZO23 (model EL3020)

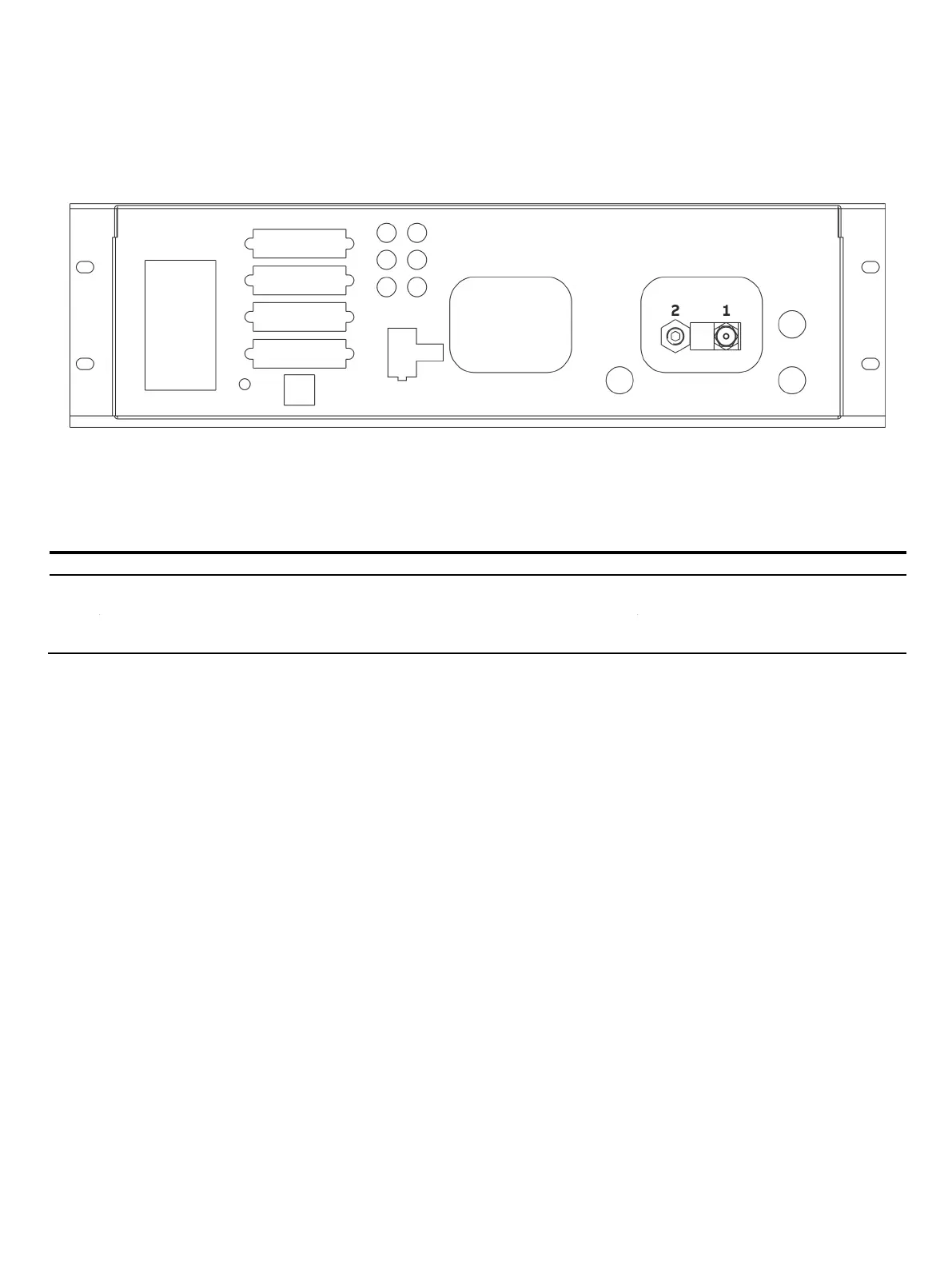

Figure 28: Gas connections ZO23 (Model EL3020)
ZO23: Gas Connections
The measuring chamber is connected to the sample gas inlet connection via a stainless steel tube (inlet side) and to the sample gas
outlet connection via a FPM hose (outlet side).
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
3
mm Swagelok®
2
Sample gas outlet
—
⅛ NPT female thread for threaded connections
(not included in scope of supply)
