ABB EasyLine EL3000 User Manual

EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 81
Gas connections Caldos27 with Caldos27 (model EL3020)

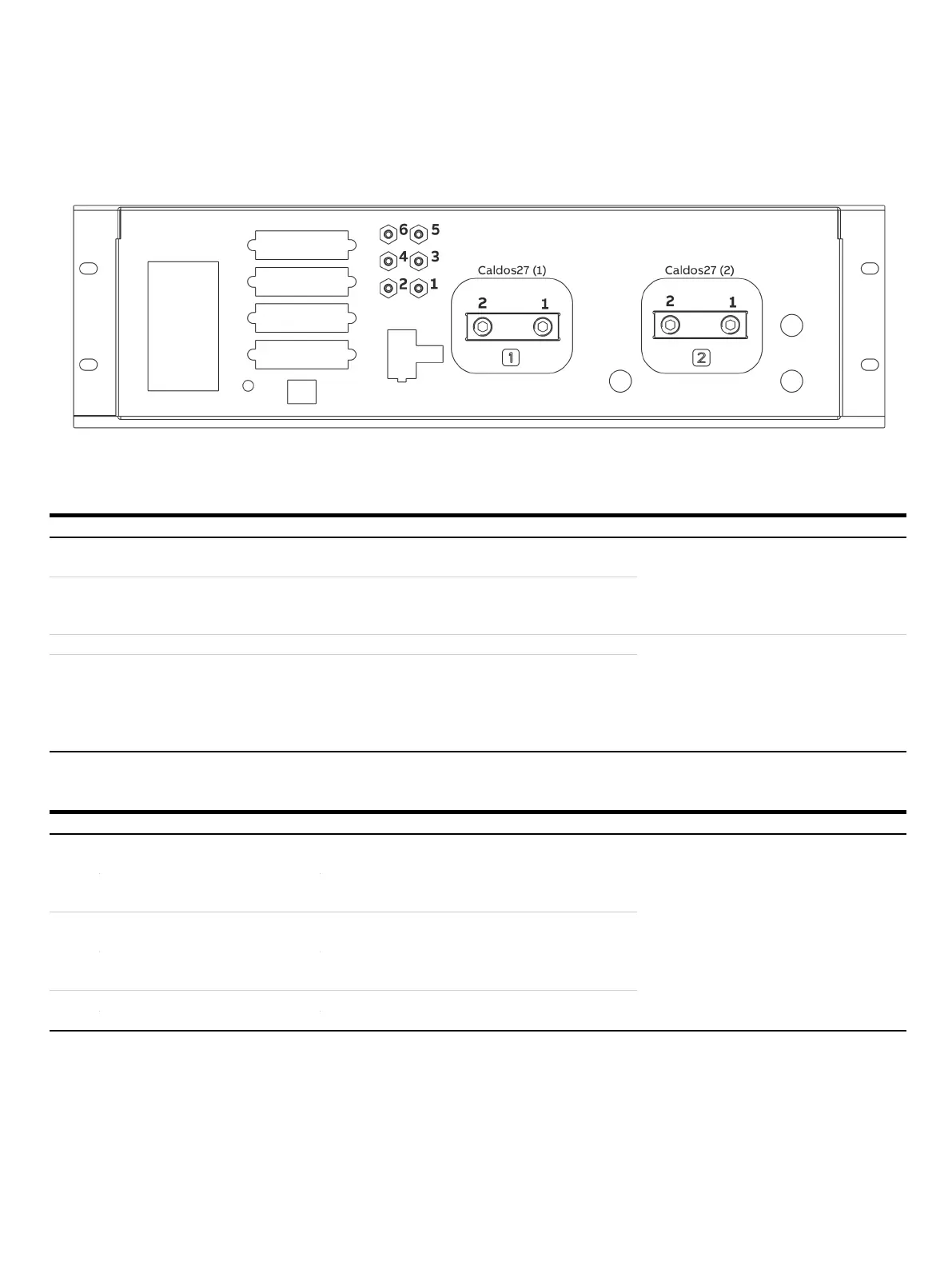

Figures 31: Gas connections Caldos27 with Caldos27 (model EL3020)
Caldos27 – gas connections for direct connection (applicable for both analyzer modules)
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
Connection of hose lines:
straight screw
-
in socket (PP) with hose nozzles for
hoses with inside diameter
4 mm
(included in scope of delivery)
2
Sample gas outlet
—
5
Pressure sensor
For analyzer module (2), not for flammable sample gases
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
6
Pressure sensor
For analyzer module (1), for flammable sample gases:
Common sensor for analyzer module (1) and analyzer
module (2).
Caution Do not connect the pressure sensor in the sample
gas path!
Caldos27 with Caldos27 – gas connections for ‘Integral gas feed’ option with flow sensor
Pos.
Connection
Supplementary information
Version
1
Sample gas output
(gas path 1 / module 1)
Factory-connected to analyzer module (1) sample gas
inlet 1
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
2
Sample gas inlet
(gas path
1 / module 1)
—
3
Sample gas output
(gas path 2 / module 2)
Factory-connected to analyzer module (2) sample gas
inlet 1
4
Sample gas inlet
(gas path
2 / module 2)
—
5
Pressure sensor
For analyzer module (2)
6
Pressure sensor
For analyzer module (1)
