82 EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D
… 5 Installation
… Position and design of the gas connections
Gas connections Caldos27 (model EL3040)

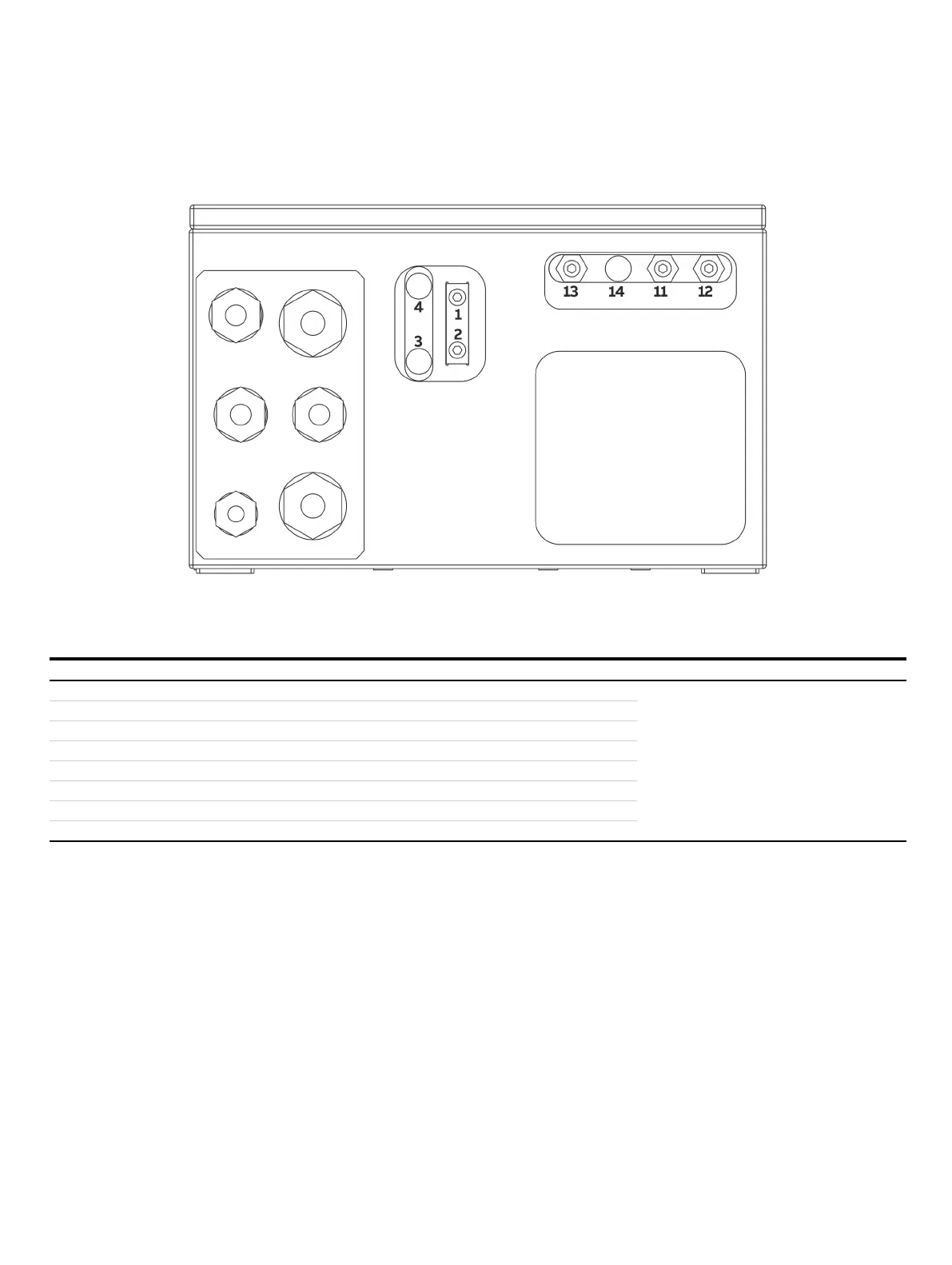

Figure 32: Gas connections Caldos27 (model EL3040)
Caldos27: gas connections
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
•
Connection of hose lines:
straight screw-
in socket (PP) with hose nozzles
for hoses with inside diameter 4 mm
(included in scope of delivery)
•
Connection of piping:
screw-in fittings
(not included in scope of delivery)
2
Sample gas outlet
—
3
Not assigned
—
4
Not assigned
—
11
Purge gas inlet (housing)
—
12
Purge gas outlet (housing)
—
13
Pressure sensor
—
14
Not assigned
—
