EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 83
Gas connections and electrical connections Fidas24 (model EL3020)

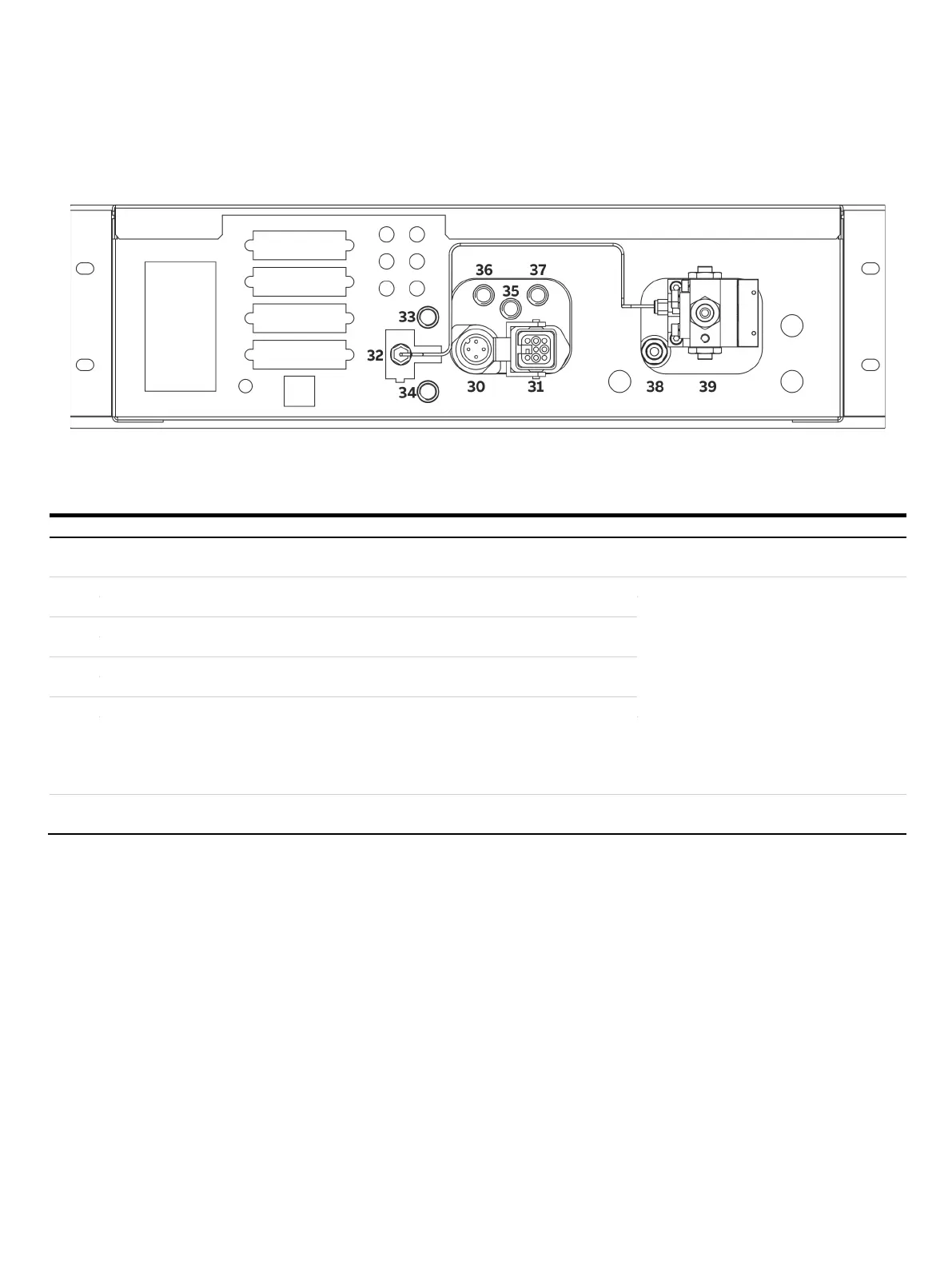

Figure 33: Gas connections and electric connections Fidas24 (model EL3020)
Fidas24: Gas and electrical connections
Pos.
Connection
Supplementary information
Version
30
Power supply (input)
115 V AC or 230 V AC for heating the detector and sample
gas inlet
4
-
pin male connector, connection cable included in
scope of supply
31
Power supply (output)
Electrical connection to the heated sample gas connection
Permanently connected
32
Test gas outlet
—
⅛ NPT female thread for threaded connections
(not included in scope of supply)
33
Zero-point gas inlet
—
34
End
-point gas inlet
—
35
Combustion air inlet
—
36
Combustion gas inlet
—
37
Instrument air inlet
—
38
Exhaust outlet
—
Male thread for connection of the exhaust air pipe
(stainless steel tube with an outside diameter of
6
mm, included in the scope of supply of the gas
analyzer)
39
Sample gas inlet
Heated or unheated
Threaded connection for PTFE or stainless steel
tubing with a 6 mm outer diameter
