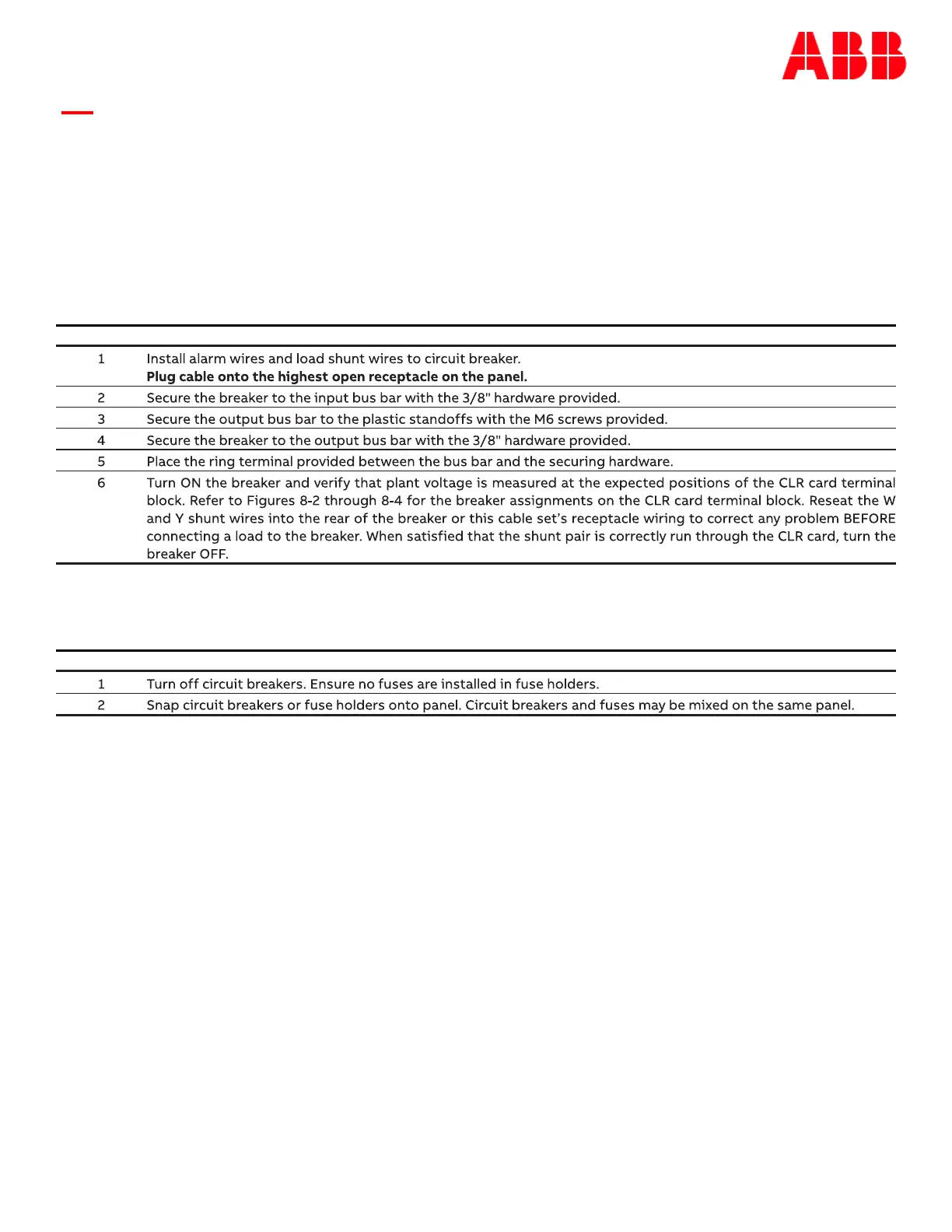

Page 91

Connecting Loads (continued)

Mounting Large Circuit Breakers

The circuit breaker panels may require the circuit breakers to be mounted. See Figure 8-1 for the instal-

lation procedure.

Caution: Turn OFF breaker before beginning procedure.

Mounting Large Circuit Breakers

Step Action

Mounting Small Plug-in Circuit Breakers and Fuses

Step Action
