Navigator 500
Sodium analyzer 3 Installation
OI/ASO550–EN Rev. G 11
3.1.5 Connecting the reagent / calibration / regeneration tubing
The following tubing connections must be made on site, all other tubing connections are factory-made. All other internal wet-section
tubing connections are factory-made.
Referring to Fig. 3.5:
1. Connect the end of reagent tubing
A to the connector B on the reagent bottle.
2. Connect the calibration solution 2 tubing QD coupling plug C to the mating connector D at the base of the calibration
solution 2 bottle.
3. If an optional regeneration bottle is fitted, connect the regeneration solution tubing QD coupling plug E to the mating
connector F at the base of base of the regeneration solution bottle.
4. Connect the calibration solution 1 tubing QD coupling plug G to the mating connector H at the base of the calibration
solution 1 bottle.

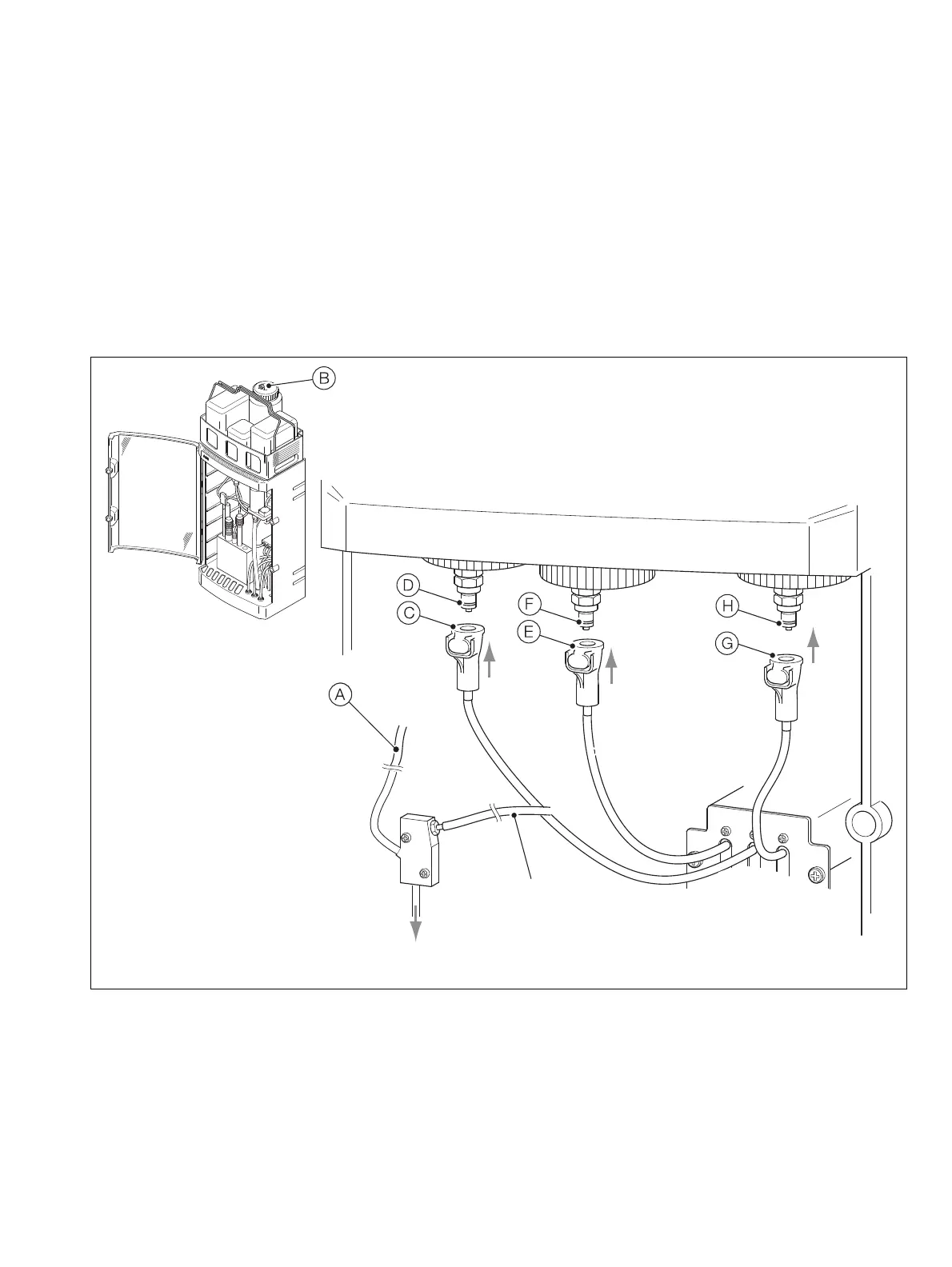

Fig. 3.5 Reagent, calibration and (optional) regeneration tubing connections
Na
vig
a
to
r 50
0
Entrainment
T-piece
Calibration + Regeneration
valve assembly
To constant-head unit
To flowcell
