Sodium analyzer 6 Operation overview – transmitter
OI/ASO550–EN Rev. G 41

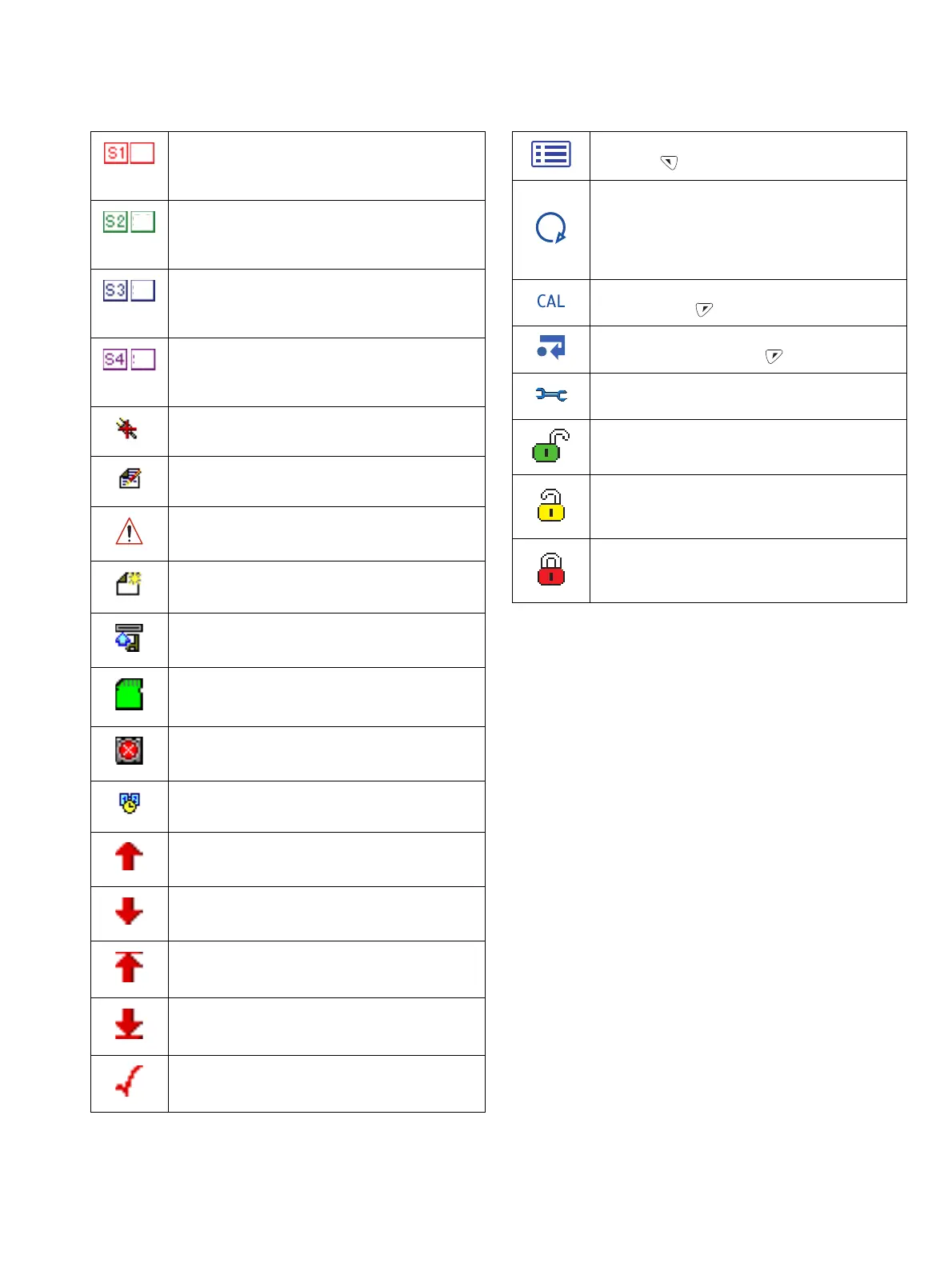

6.10.3 Log icons 6.10.4 Status bar icons
Source: wet-section 1 (red)
S1 = sensor for wet-section 1
T1 = temperature for wet-section 1
Source wet-section 2 (green)
S2 = sensor for wet-section 2
T2 = temperature for wet-section 2
Source wet-section 3 (blue)
S3 = sensor for wet-section 3
T3 = temperature for wet-section 3
Source wet-section 4 (violet)
S4 = sensor for wet-section 4
T4 = temperature for wet-section 4
Power failed / power failed
Configuration changed
System Error
File created / deleted
Media inserted / removed
Media on-line / off-line
Media full
Date / time or daylight saving start / end
changed
High process alarm active / inactive
Low process alarm – active / inactive
High latch alarm – active / inactive
Low latch alarm – active / inactive
Alarm acknowledged
T1
T2
T3
T1
Operator menu – displays the Operator menu
when the key is pressed.
Autoscroll – selected from the Operator menu
(displayed when Autoscroll enabled). Indicates
Operator pages are displayed sequentially.
Disabled if 1 Operator page only is configured for
display.
Calibration – shortcut access to the Calibration
page when the key is pressed.
Enter – selects the highlighted option from the
Operator menus when the key is pressed.
Service Level – indicates that alarms and analog
outputs are held.
Advanced Level – indicates that Advanced Level
parameters are enabled for the current user.
Calibrate Level – indicates that the Calibration
Level parameters are enabled for the current
user.
Read Only Level – indicates that the transmitter
is in Read Only mode. All parameters are locked
and in cannot be configured.
