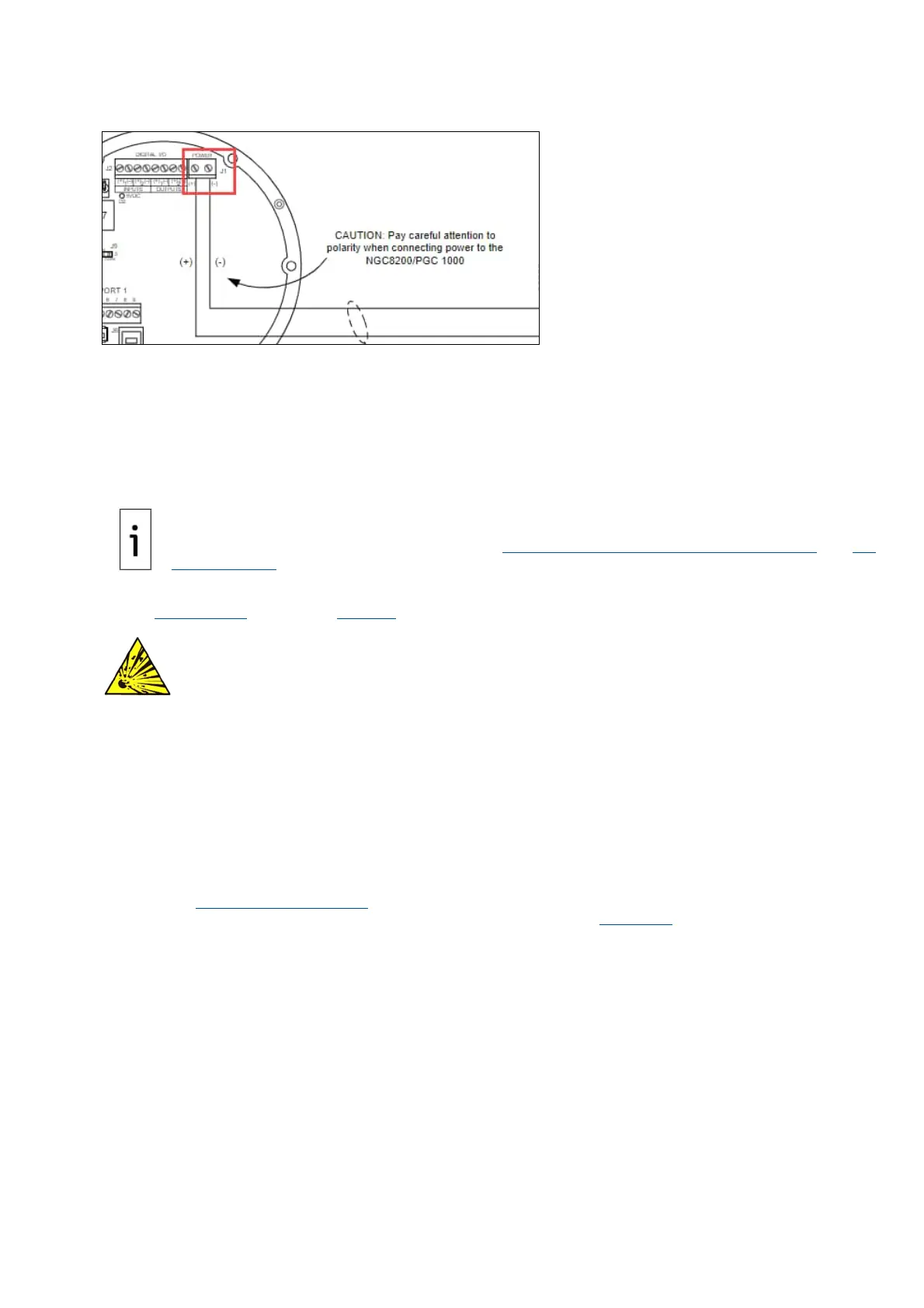

Figure 5-2: Power connector on the analyzer
6 Startup
This chapter describes the startup and basic configuration of a newly installed analyzer. PCCU32
connection with the analyzer is required. A startup wizard displays as soon as successful connection
with the analyzer is established. The wizard facilitates the required configuration to place the analyzer
in service.
IMPORTANT NOTE: PCCU32 6.0 (or later) is required to communicate with the analyzer for
configuration. Previous versions of PCCU32 are not compatible with the NGC or PGC. To obtain and
install the latest PCCU32 version, see sections 6.1 Download PCCU32 from the ABB website and 6.2
Install PCCU32.
It is assumed that the installation, wiring, and connection of system components as described in
section 4 Installation and section 5 Wiring are completed.
– Explosion Hazard. Do not open or remove any enclosure covers unless the
-hazardous.
For additional or advanced configuration options, click Help on the PCCU32 screens for the analyzer.
6.1 Download PCCU32 from the ABB website
The latest PCCU version is available on the ABB website. This procedure describes how to locate and
download the latest PCCU installation package. Always review release notes for new features or bug
fixes before installing and using new PCCU versions. Note that the webite shows the major version of
PCCU, but the installation package file name contains the part and revision numbers: 2103445-XXX,
where 2103445 is the unique part number for PCCU, and XXX is the revision number. For example, the
installation package for PCCU 7.74 has the number 2103445-098 in the file name.
To review release notes and download the PCCU installation package:
1. Go to www.abb.com/upstream.
2. Under Products, select PCCU from the User Interface category (Figure 6-1).
