102 The PQF-Manager user interface Manual Power Quality Filter PQFS

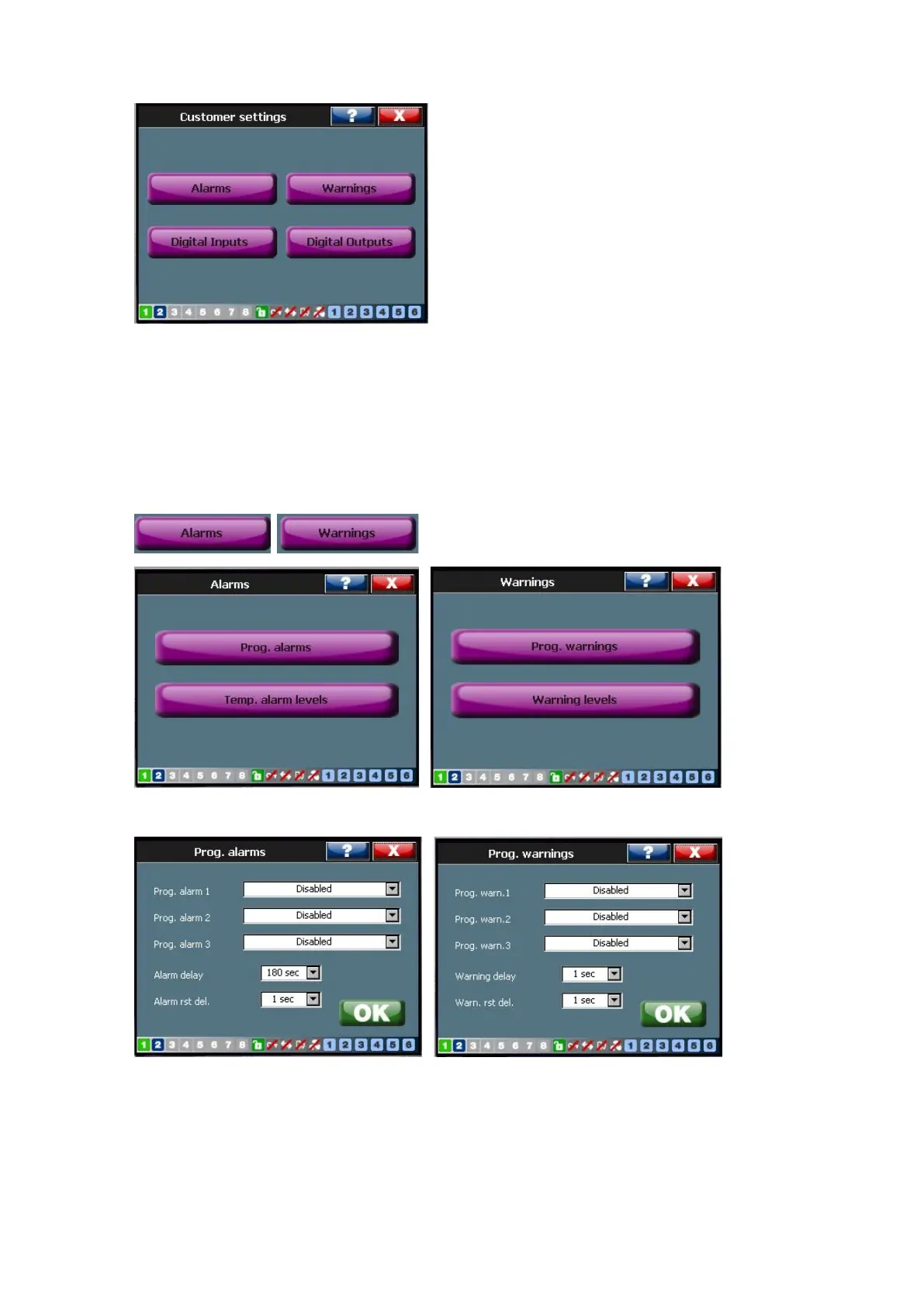

7.9.1.4 Setting up alarms, warnings and digital inputs and outputs (D I/O)
The PQF-Manager contains 2 digital inputs, 6 digital outputs and 1 alarm contact (with
two complementary outputs). These contacts can be used to provide data to the filter
(e.g. remote control signals) and get data out of the filter (e.g. filter status information,
alarm information etc.). This section discusses the PQF-Manager setup for controlling
all the digital I/O and creating warnings and alarms.
7.9.1.4.1 Alarms and warnings
− Programmable alarms and warnings
− Temperature alarm and warnings levels
