10 Upon Reception Manual Power Quality Filter PQFS
—
3 Upon Reception
3.1 What this chapter contains
This chapter gives basic information on how to inspect, transport, identify and store the
PQFS active filter.
3.2 Delivery inspection
Each PQFS is delivered in a box designed to protect adequately the equipment during
shipment. Upon reception of the equipment, make sure that the packing is in good
condition. Verify the state of the shock and tilting indicators (if mounted on the
enclosure).
After removal of the packing, check visually the exterior and interior of your filter for
transportation damage.
3.3 Unpacking instructions

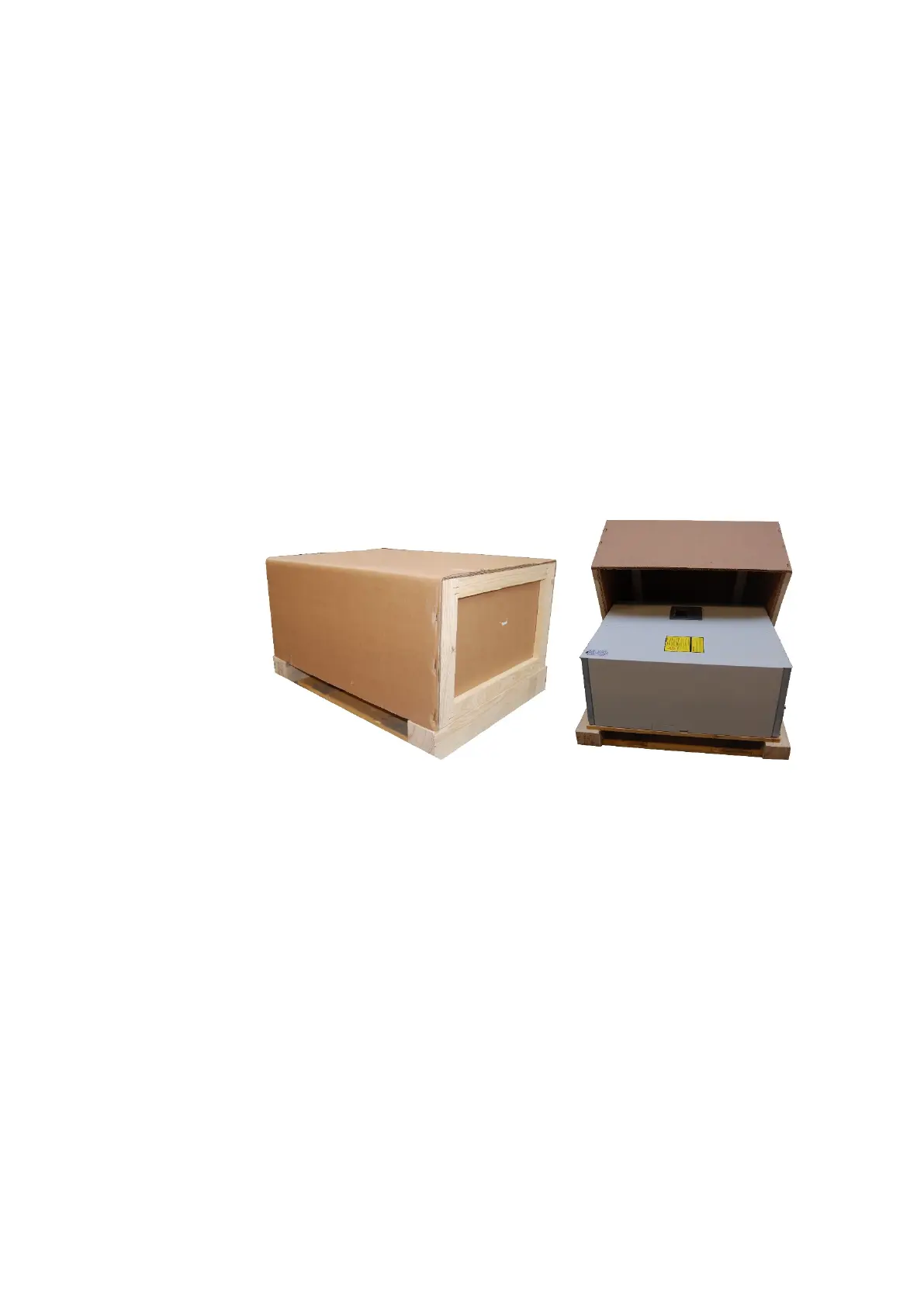

Figure 1: PQFS packing material opened
After removal of the top cover, check visually the exterior and interior of your filter for
transportation damage.
Your filter equipment comes with a package. Verify that all items are present, i.e.:
− this manual
− the electrical drawing
− the rubber seal to cover a knock-out (to be used for multi-unit operation)
− the communication cable needed for multi-unit operation
− the two eyebolts
Any loss or damage should be notified immediately to your ABB representative.
3.4 Lifting and transportation guidelines
Please note that filter equipment weighs approximately 130 kilograms. Care should be
taken to ensure that correct handling facilities are used.
