Manual Power Quality Filter PQFS Commissioning instructions 89

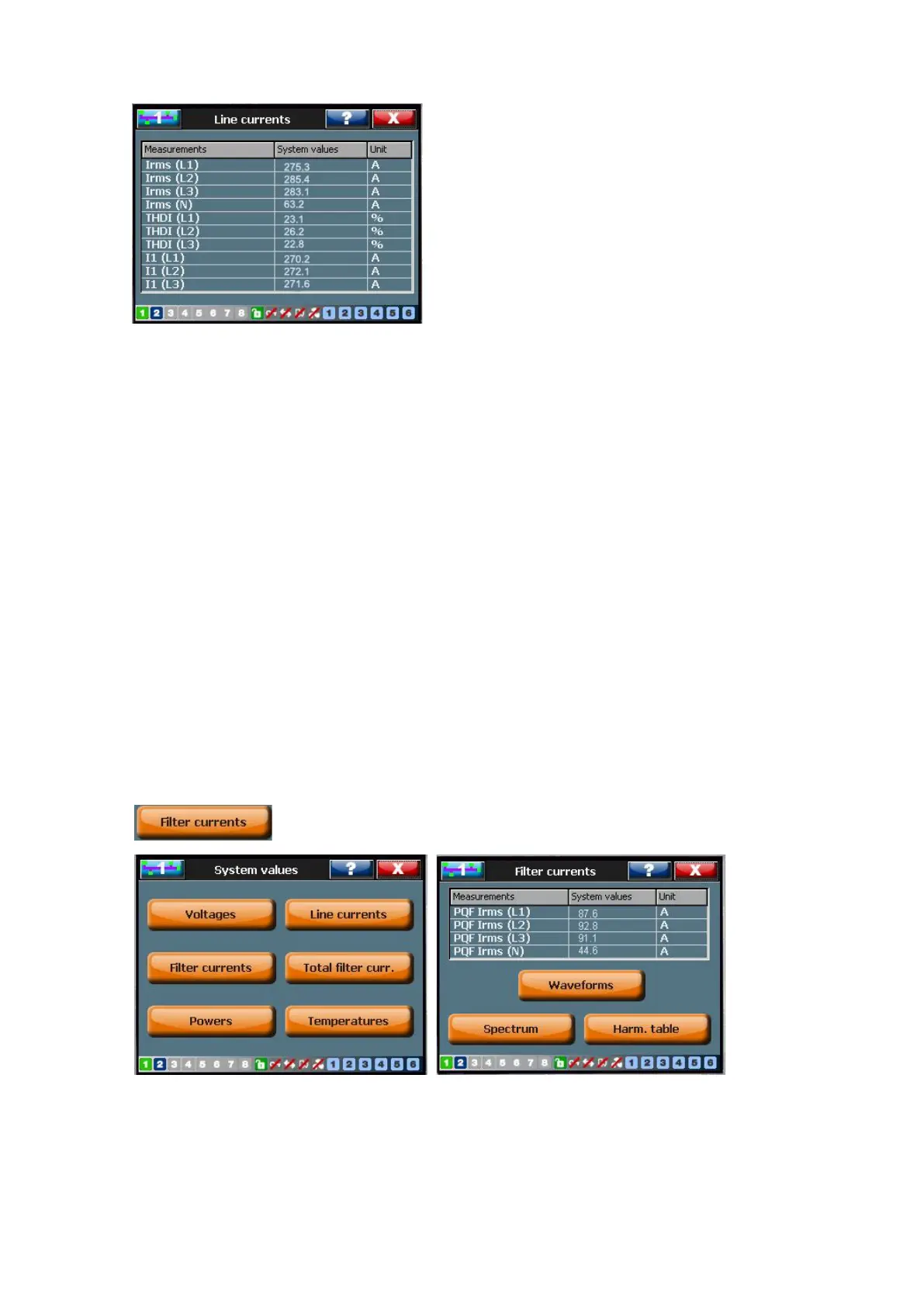

7.8.2.2.1 Global values
Irms, I1 and THDI are displayed in table format.
7.8.2.2.2 Waveforms
The line current waveforms for all phases (3-W mode) and the neutral current waveform
(4-W mode). The graph layout is similar to the one of the voltages (Figure 60). All
waveforms are synchronized with the rising edge zero crossing of the voltage V (L1-N)
(4-W mode) or V (L1-L2) (3-W mode).
7.8.2.2.3 Spectrum
The line current spectrum for all phases (3-W mode) and the neutral current spectrum (4-
W mode) in chart format. The chart layout is similar to the one of the voltages (Figure
61).
7.8.2.2.4 Harmonic table
The line current spectrum for all phases (3-W mode) and the neutral current spectrum (4-
W mode) in table format. The table layout is similar to the one of the voltages (Figure
62).
7.8.2.3 Filter currents
Refer to Table 39 for an explanation of the parameters.
PQF Irms in table format for the unit selected with the ‘Select Unit’ option.
