88 The PQF-Manager user interface Manual Power Quality Filter PQFS
7.8.2.1.4 Harmonic table
The network voltage spectrum for all phases in table format (Figure 62). Both the
absolute values and the % of the fundamental component values are shown for each
spectral component up to the 49
th
rank.

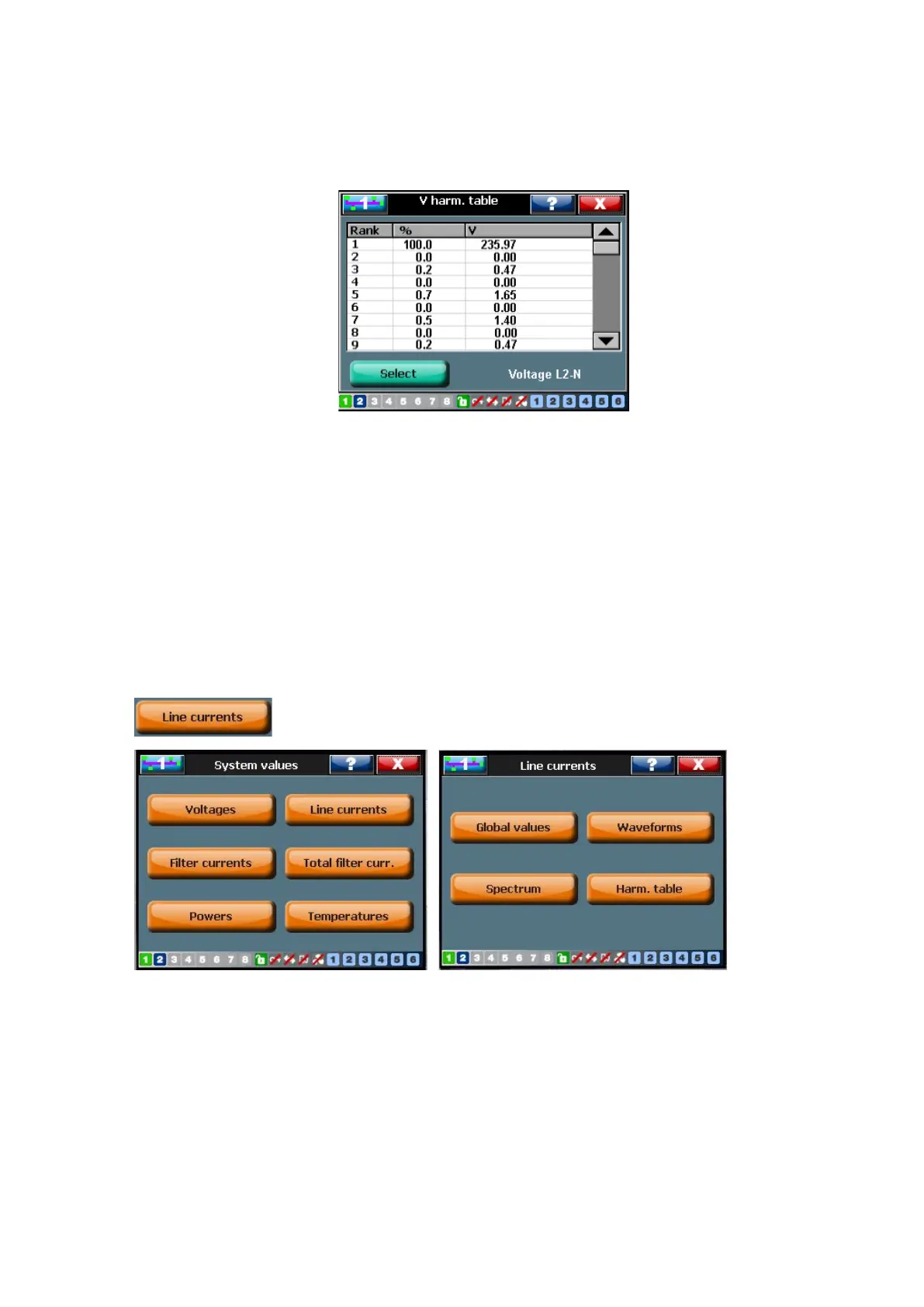

Figure 62: Spectrum of the network voltage in table format displayed by the PQF-Manager (4-W
mode example)
Following parameters are displayed in the sub-menu “Voltages” itself in a tabular form.
− The network frequency
− The network imbalance
− The active filter DC bus voltage of the selected unit
− The active filter DC bus voltage (max.)
7.8.2.2 Line currents
Refer to Table 39 for an explanation of the parameters.
