Manual Power Quality Filter PQFS Upon Reception 13
− Fix an appropriate lifting device to the eyebolts to lift the filter from the wooden
support. It can then be positioned at the desired location (see Figure 7).

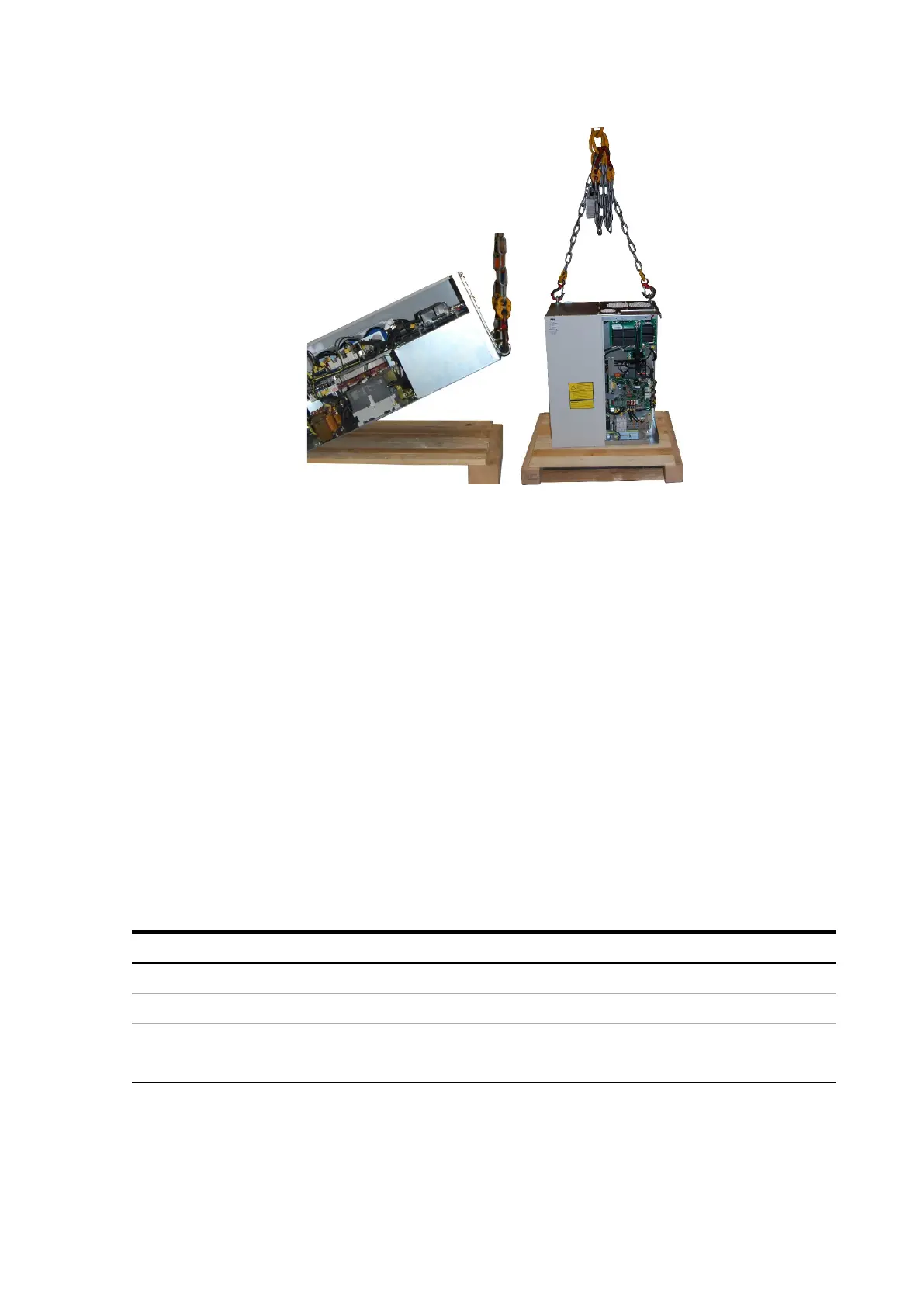

Figure 7: Lifting a PQFS unit by using the lifting lugs
3.5 Identification tag
Each PQFS is fitted with nameplates for identification purposes.
The filter nameplate is located at the top left of the master panel door, at the outside.
The nameplate information should always remain readable to ensure proper
identification during the whole life of the filter. The main filter nameplate includes the
filter type, the nominal voltage range and frequency as well as a serial number and an
ABB internal article code.
3.6 Storage
If your PQFS is not installed once unpacked, it should be stored in a clean indoor, dry,
dust free and non-corrosive environment. The storage temperature must be between -
25°C (-13°F) and 70°C (158°F) with a maximum relative humidity of 95%, non-condensing.
Table 2: Maximum allowed ambient conditions for storage
Storage (in the protected package)
-25 to 70°C (-13 to 158°F)
Contamination levels (IEC 60721-3-
3)
Chemical class 3C3
Mechanical class 3S3
(b)
(a) Locations with normal levels of contaminants, experienced in urban areas with industrial
activities scattered over the whole area, or with heavy traffic.
(b) Locations without special precautions to minimize the presence of sand or dust. Also
applies to locations in close proximity to sand or dust sources.
