12 Upon Reception  Manual Power Quality Filter PQFS
− Unplug the PQF-Manager from the main system (see Figure 4). Then the
protective cover can be safely put aside.

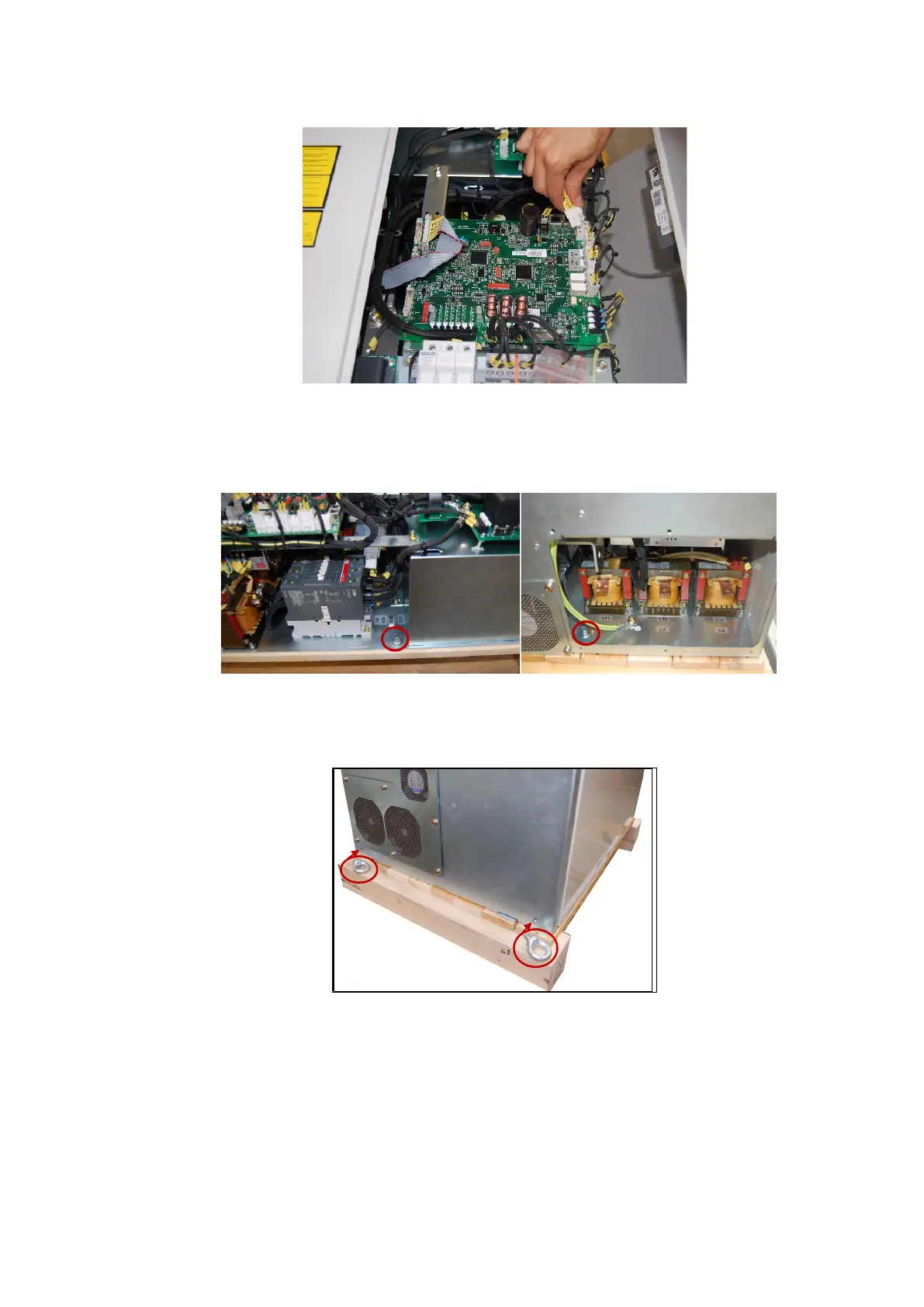

Figure 4: Unplugging the PQF-Manager from the main system
− Remove the two screws fixing the filter unit to the wooden support (see Figure
5).
Right side Bottom
Figure 5: Position of the filter fixation screws that need to be removed
− Fix the two eyebolts provided with the filter (see Figure 6).
Figure 6: Fix the eyebolts before lifting the PQFS
