Manual Power Quality Filter PQFS Upon Reception 11
In order to transport the equipment use a forklift or similar equipment. PQFS enclosures
are best transported horizontally.
Table 1: Maximum allowed ambient conditions during transportation
Transportation (in the protected package)
Temperature -25 to 70°C (-13 to 158°F)
Contamination levels (IEC 60721-3-3)
Mechanical class 3S3
(b)
Remarks:
(a) Locations with normal levels of contaminants, experienced in urban areas with industrial
activities scattered over the whole area, or with heavy traffic. Also applies to locations with
immediate neighborhood of industrial sources with chemical emissions.
(b) Locations without special precautions to minimize the presence of sand or dust. Also
applies to locations in close proximity to sand or dust sources.
In order to lift the equipment once it is at the installation location:
− Remove the top cover of the protecting box (see Figure 1).
− Remove the 4 panel securing screws at the bottom and the top of the enclosure
(see Figure 2).

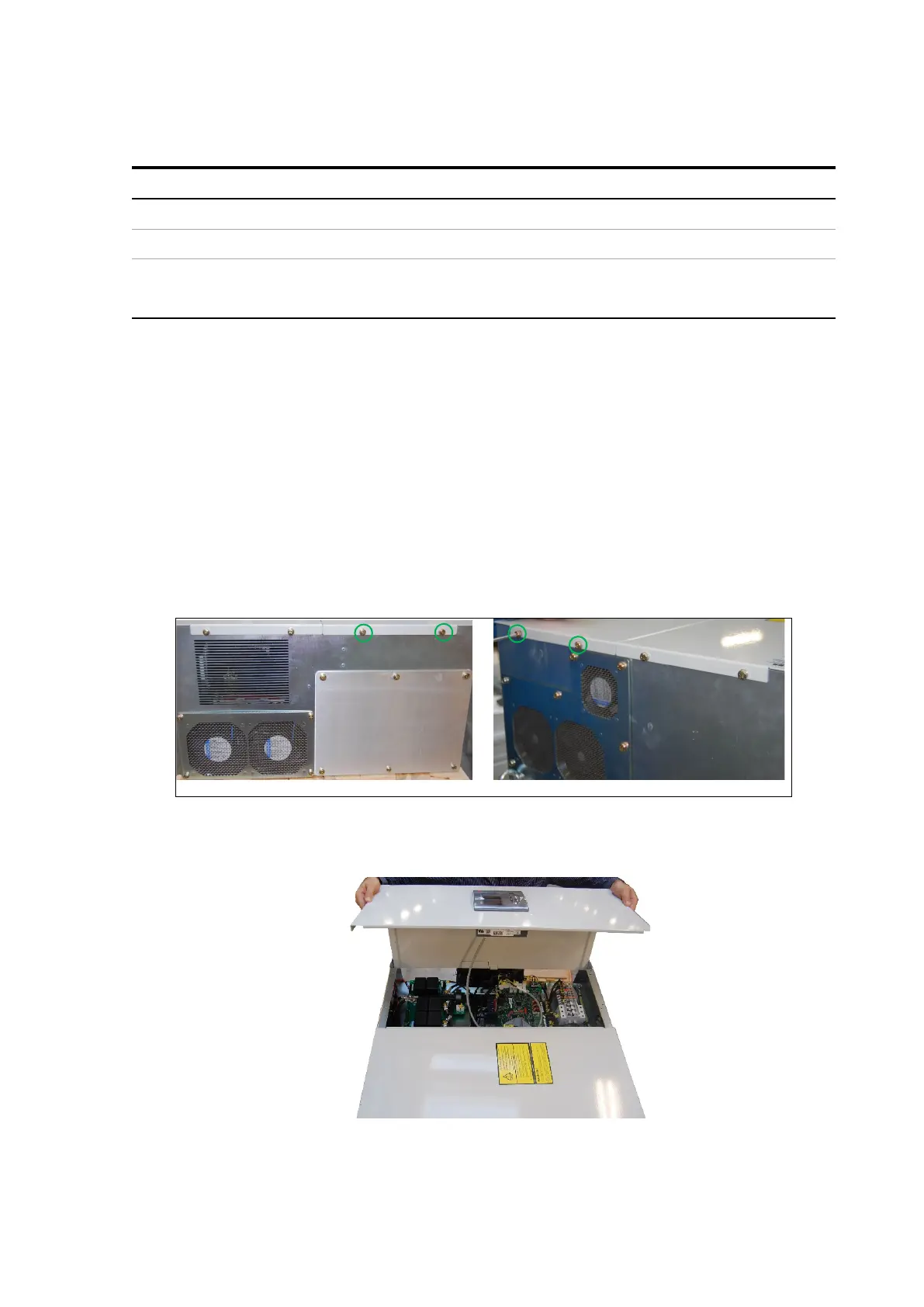

Figure 2: Locating the 4 panel securing screws
− Remove first the right side of the protective cover and put it aside (see Figure 3).
Figure 3: Lifting the right protective cover and putting it aside
