5.7 Instructions for mounting the PQF-Manager in enclosures

The PQF-Manager user interface is mounted on to the front panel. In case it needs to be

relocated to another enclosure, follow the guidelines presented next (Figure 23)

Step 2

Step 1

(a)

(b)

Step 3

Step 4

(c)

(e)

Step 5

Repeat steps 3 to 5

for the bottom

Mounting Bracket.

(d)

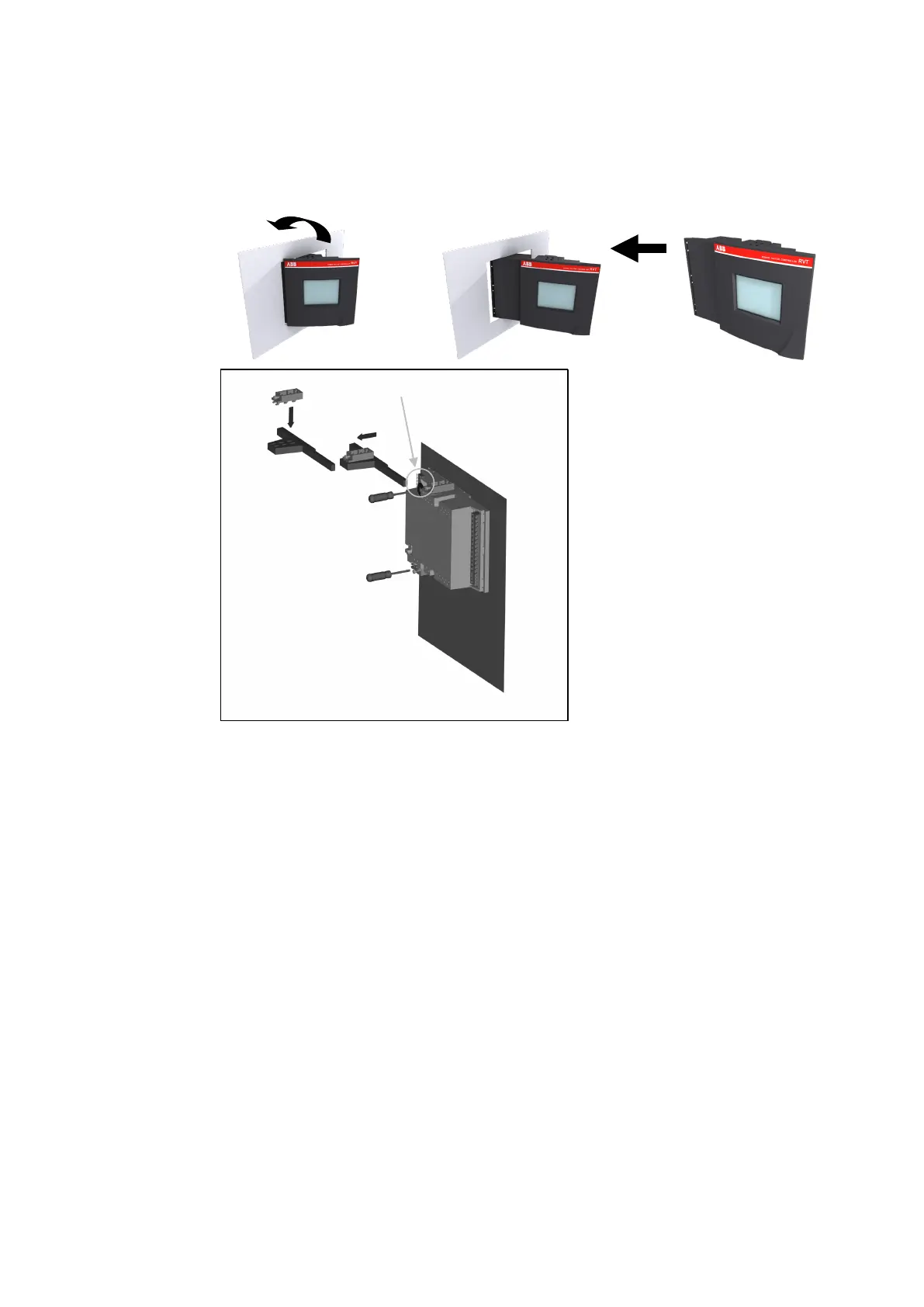

Figure 23: Mechanical installation of the PQF-Manager

Step 1: Slide the PQF-Manager (a) perpendicularly to the Capacitor Bank Cubicle (b).

Step 2: Rotate the PQF-Manager to insert it into the Capacitor Bank Cubicle.

Note: cut out dimensions are 138 x 138 mm.

Step 3: Insert the Mounting Bracket (c) in the corresponding Fixation Holes (d) of the

PQF-Manager.

Step 4: Pull the Mounting Bracket backwards.

Step 5: Turn the Screw (e) into the Mounting Bracket and tighten until the PQF-Manager

is secured in place.

Once the PQF-Manager has been installed, it has to be connected electrically (Cf. Section

6.2).
