38 Planning the installation
 Recommended AC output power cable types

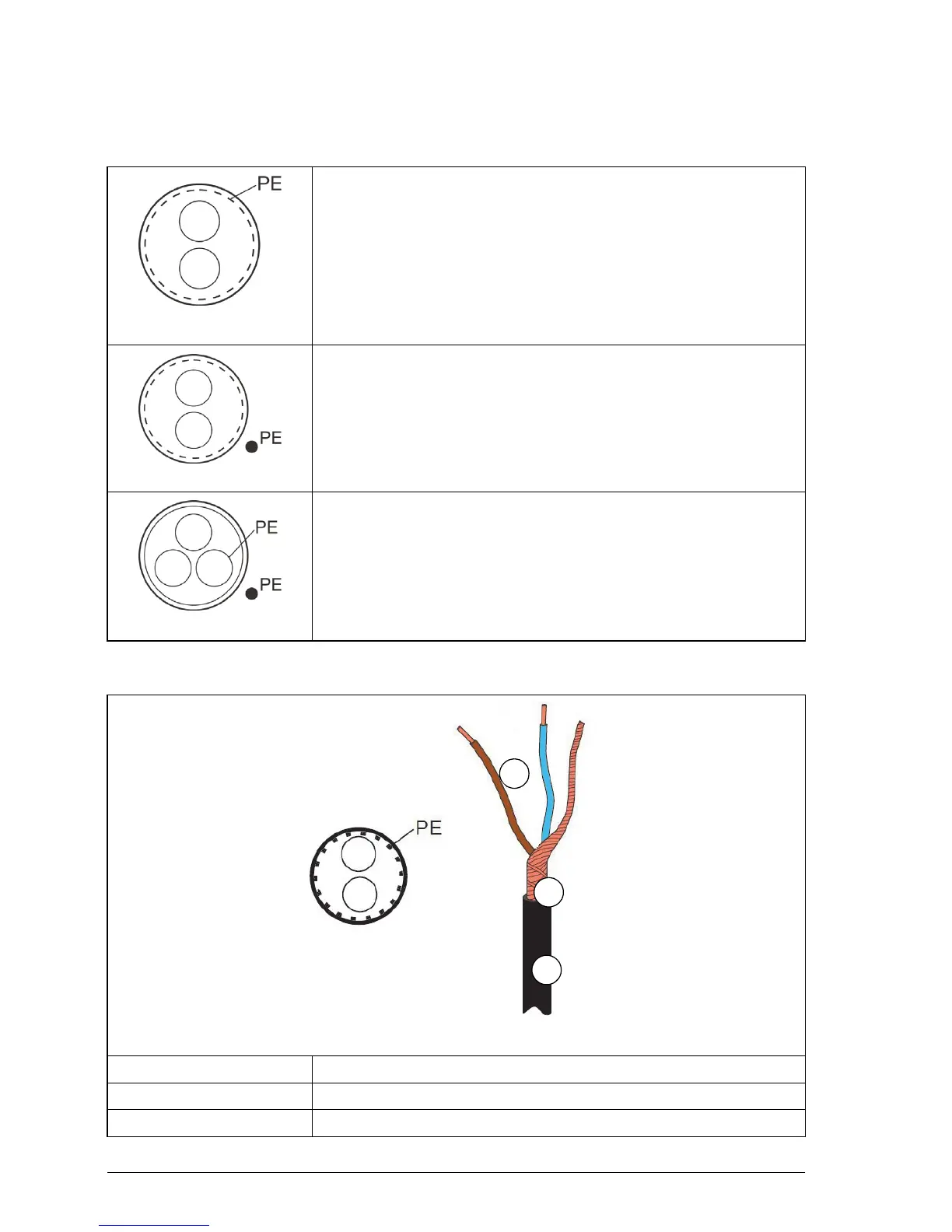

The power cable types that can be used for the inverter AC output are shown below.
Shielded cable with line and neutral conductors and a concentric
PE conductor as shield. The shield must meet the PE conductor
cross section requirements, see General rules on page 37. Check
with local / state / country electrical codes for allowance.
Shielded cable with line and neutral conductors and a concentric
PE conductor as shield. A separate PE conductor is required if the
shield does not meet the cross section requirements, see General
rules on page 37.
Double insulated cable with line, neutral and PE conductors. A
separate PE conductor is required if the shield does not meet the
cross section requirements, see General rules on page 37.
1 Insulation jacket
2 Copper wire screen
3 Cable cores
1
2
3
