56 Mechanical installation
Installing the inverter onto the mounting plate

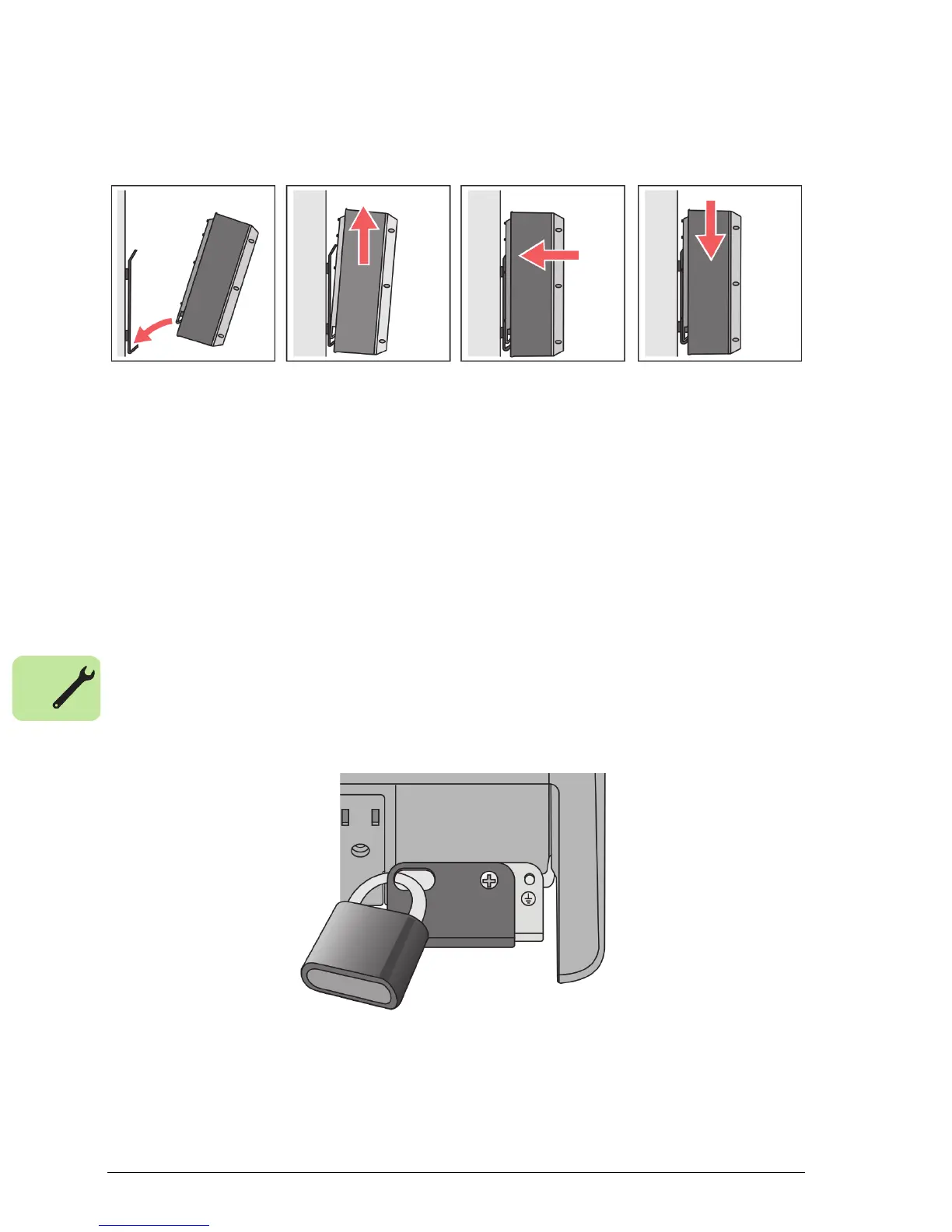

Installation sequence
1. Remove the bottom cover from the inverter. See Removing and replacing the
front cover and bottom cover on page 51.
2. With the top of the inverter tilted slightly towards you, lift it up so that the bottom
hook of the mounting plate goes into slot on the back of the inverter
3. Tilt the inverter backwards so that it is almost vertical.
4. Slide the inverter upwards and hook it onto the cantilever support.
5. Lower the inverter so that it is supported by the mounting plate.
6. From below, check that the securing point and antitheft padlock holes of the
inverter and mounting plate are correctly aligned.
7. Fit the locking screw to fasten the inverter to the mounting plate.
8. If additional security is required, the inverter can be locked to the mounting plate
with a padlock. Check that the bottom cover can be fitted and removed with the
padlock installed.
Note: Replace the bottom cover after cabling has been installed and commissioned.
