ABB PVS300 User Manual

Electrical installation 61
Connecting the power cables
See section Selecting the power cables on page 37.

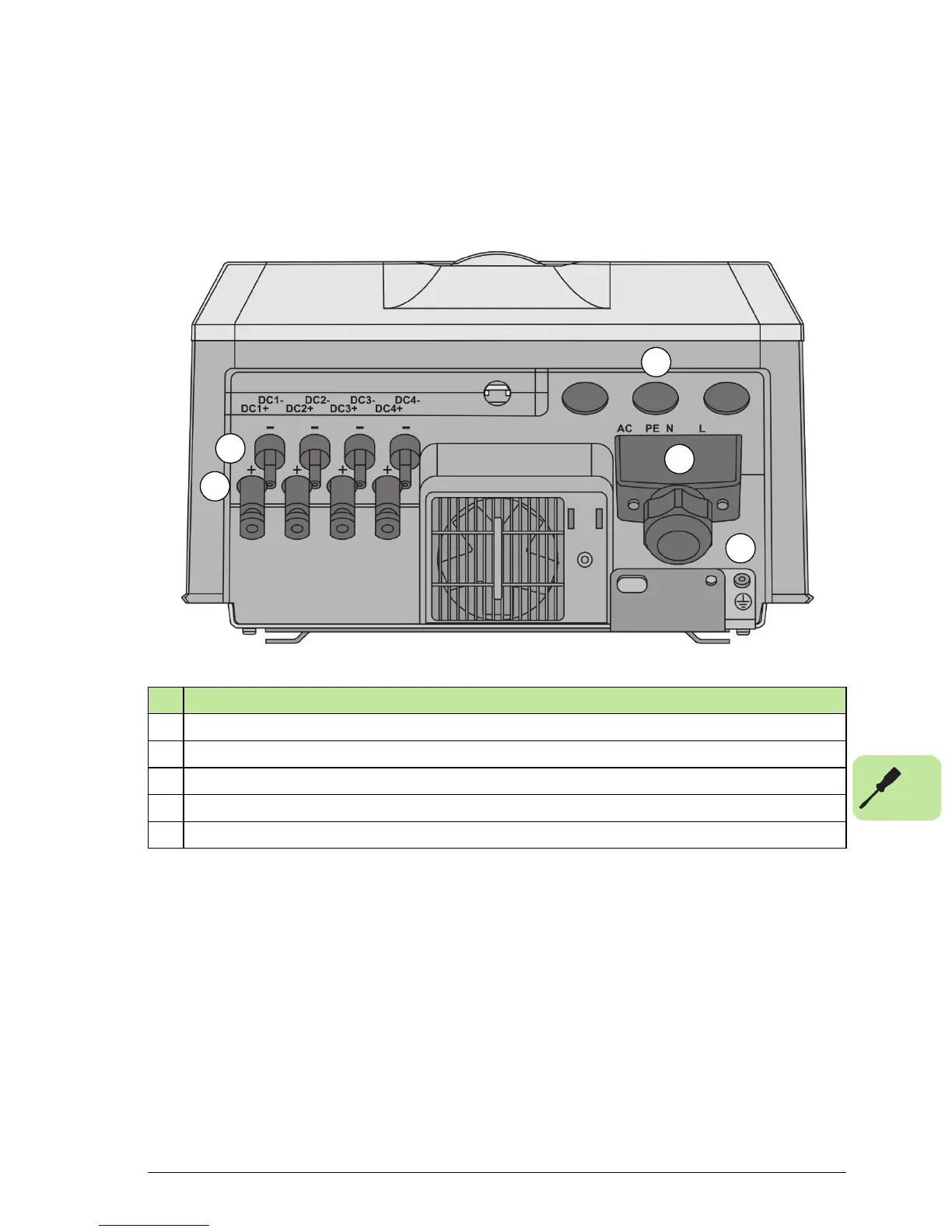

 Connection area layout
Description
1
Negative DC inputs, female panel receptacles, 4 in parallel
2
Positive DC inputs, male panel receptacles, 4 in parallel
3 Feed through rubber grommets for control cables, 3 pieces.
4
AC cable connector for Line, Neutral and Protective Earth conductors
5 Place for additional PE cable and cable lug, M6 thread
1
2
3
4
5
