54 Mechanical installation
Installation sequence
Note: Ensure that dust from drilling will not enter the inverter during the installation.
Note: When a self-carrying wall surface, such as a brick wall, is not available:

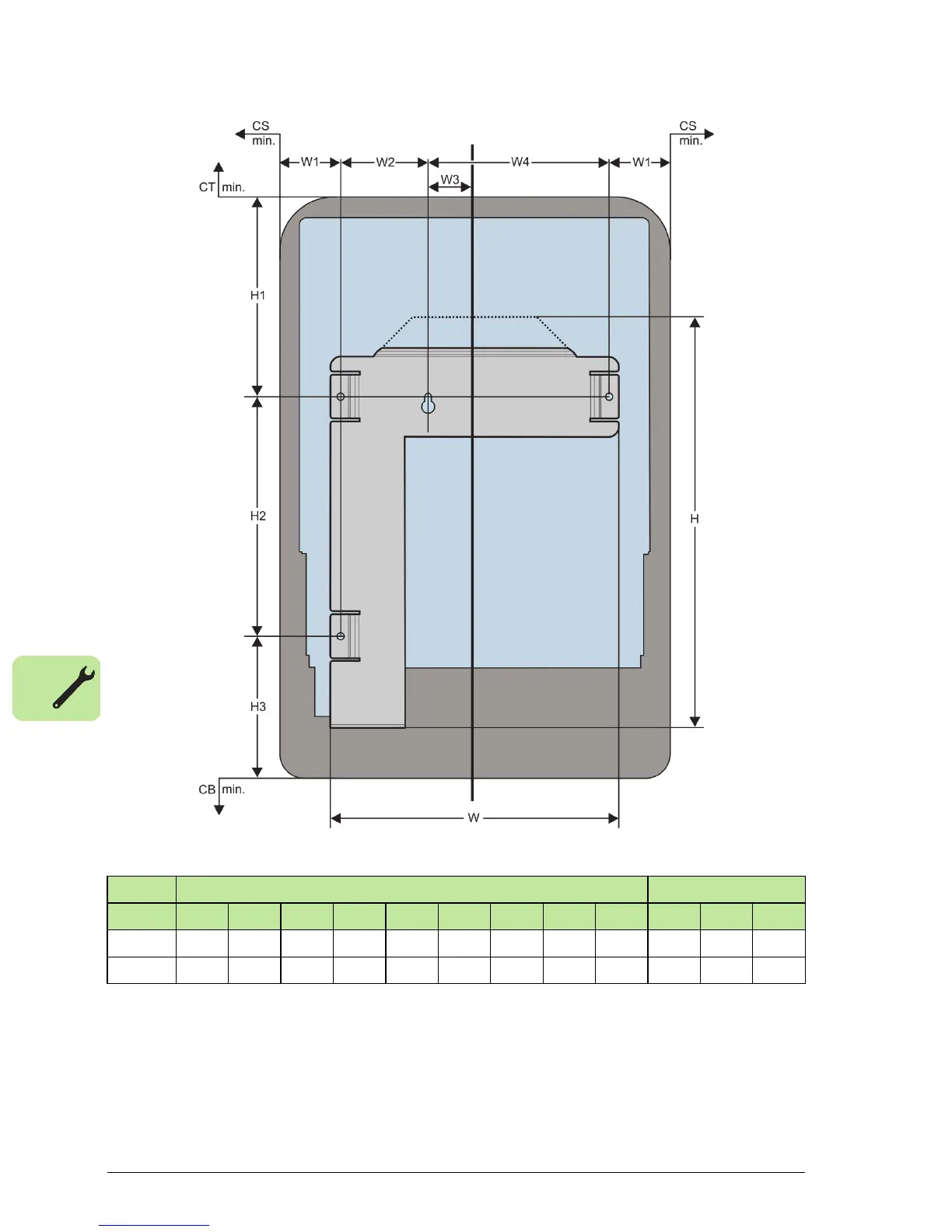

Mounting dimensions Clearances
H H1 H2 H3 W W1 W2 W3 W4 CB CS CT
mm 411 200 239 143 288 61 87 47 181 500 250 250
inches 16.2 7.87 9.41 5.63 11.3 2.40 3.43 1.85 7.13 19.7 9.8 9.8
