Mechanical installation 55
• If stud work can be located behind the wall surface and the mounting plate holes
can be aligned with it, the mounting plate can be fastened to the stud work.
• If suitable stud work cannot be located, a strong supporting structure (for
example, stud work, boards, railings) must be prepared on the wall surface.

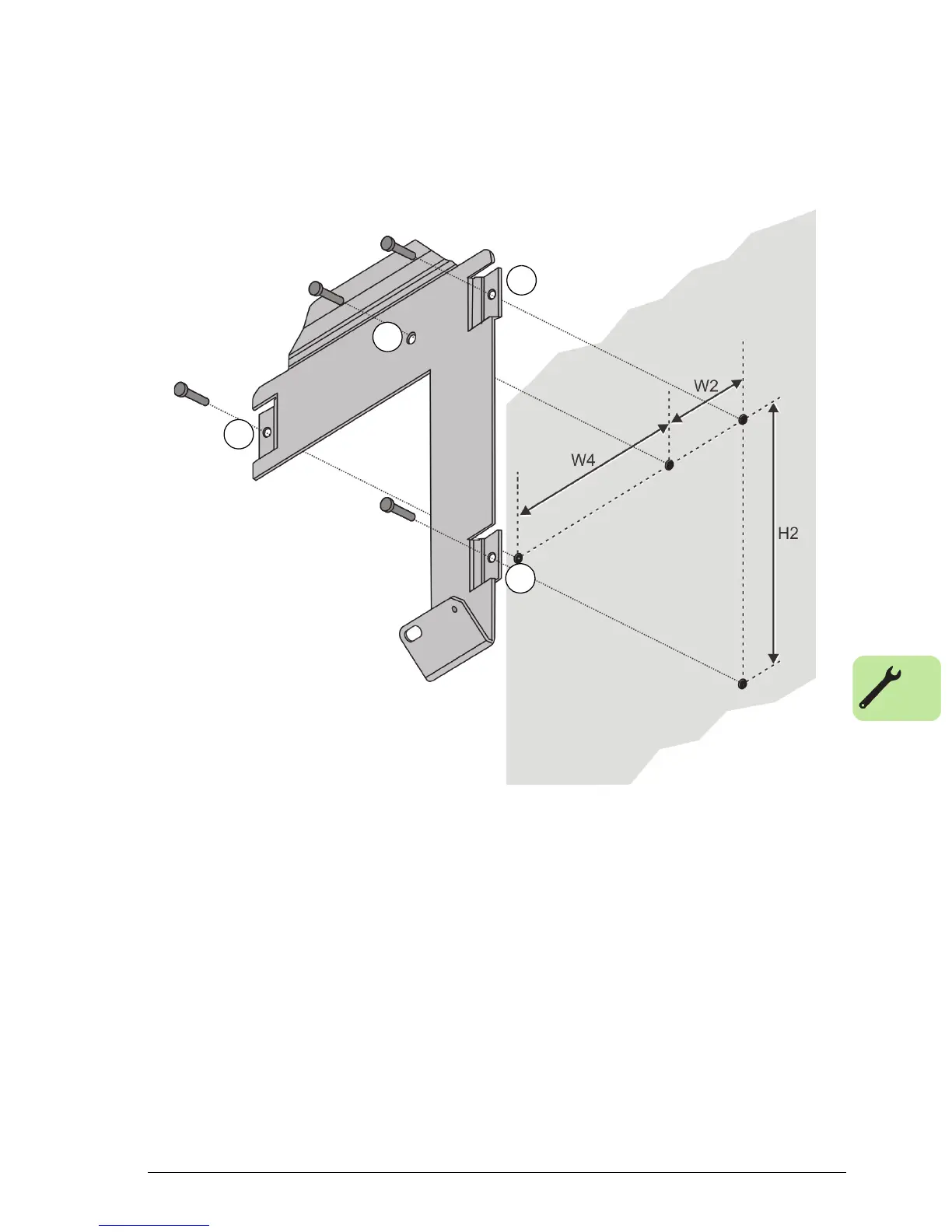

1. Use the pilot securing point (1) to temporarily hang the mounting plate in its
intended location. The vertical centre of the inverter’s keypad will be at the same
height as the pilot securing point and a small distance (W3) horizontally offset to
the left of it.
2. Check that the mounting plate is straight, then mark the securing points (2) to the
wall.
3. Drill holes in the marked positions and fasten the mounting plate to the wall or
mounting base.
4. Either fully tighten or completely remove the pilot securing screw.
