156 | RMC-100| 2105552MNAE
5. Click Onboard I/O, then Analog Output in the navigation tree. The Analog Output screen
displays in Auto Mode.

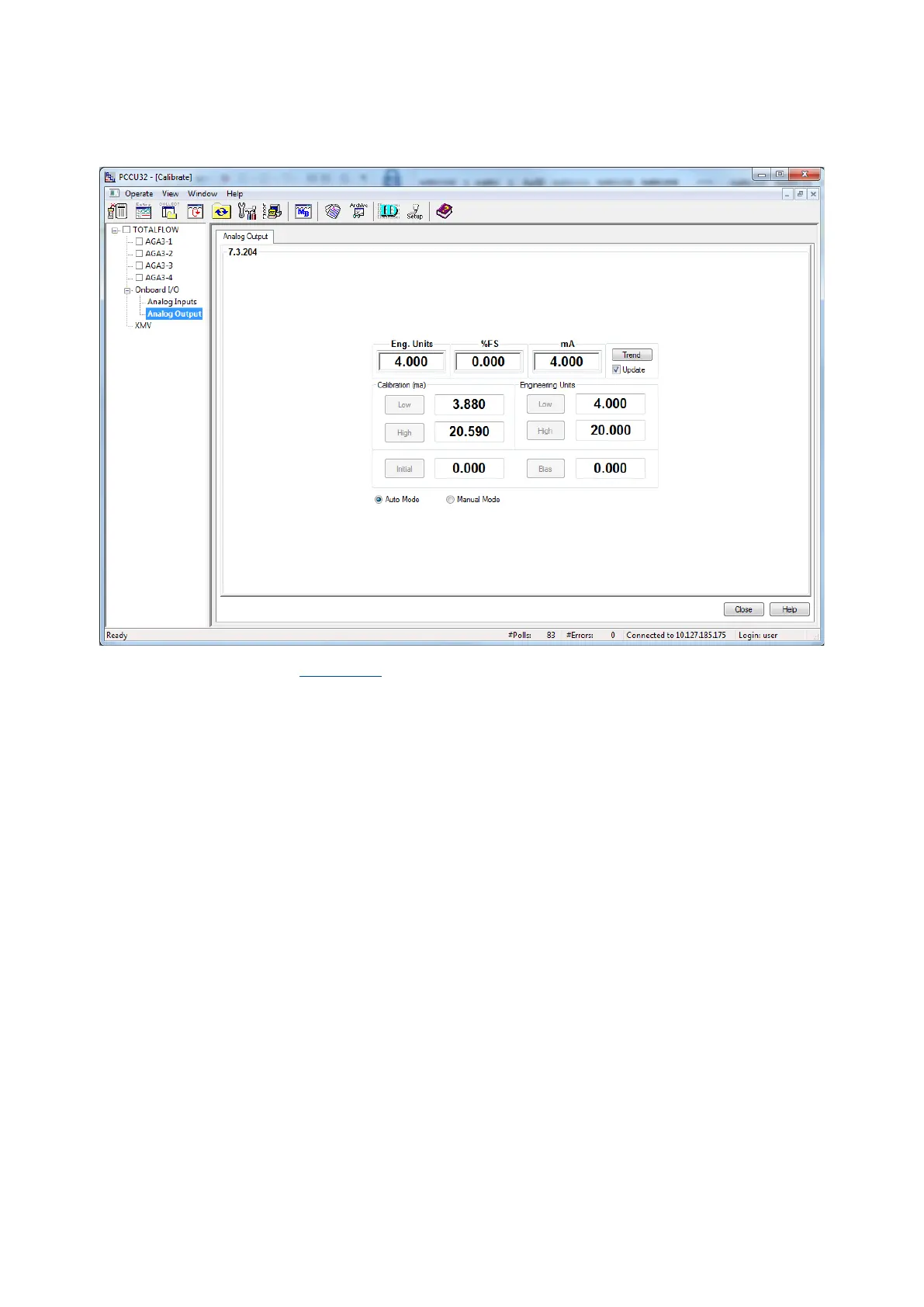

Figure 7-42: Analog Output auto mode
6. Click Manual Mode (Figure 7-43
). The Calibration and Engineering Units buttons activate.
