This example determines the parameter to display from the Current screen.
You can select any parameter from this screen or other screens for the application. All application
screens display the
register address for each parameter on that screen.

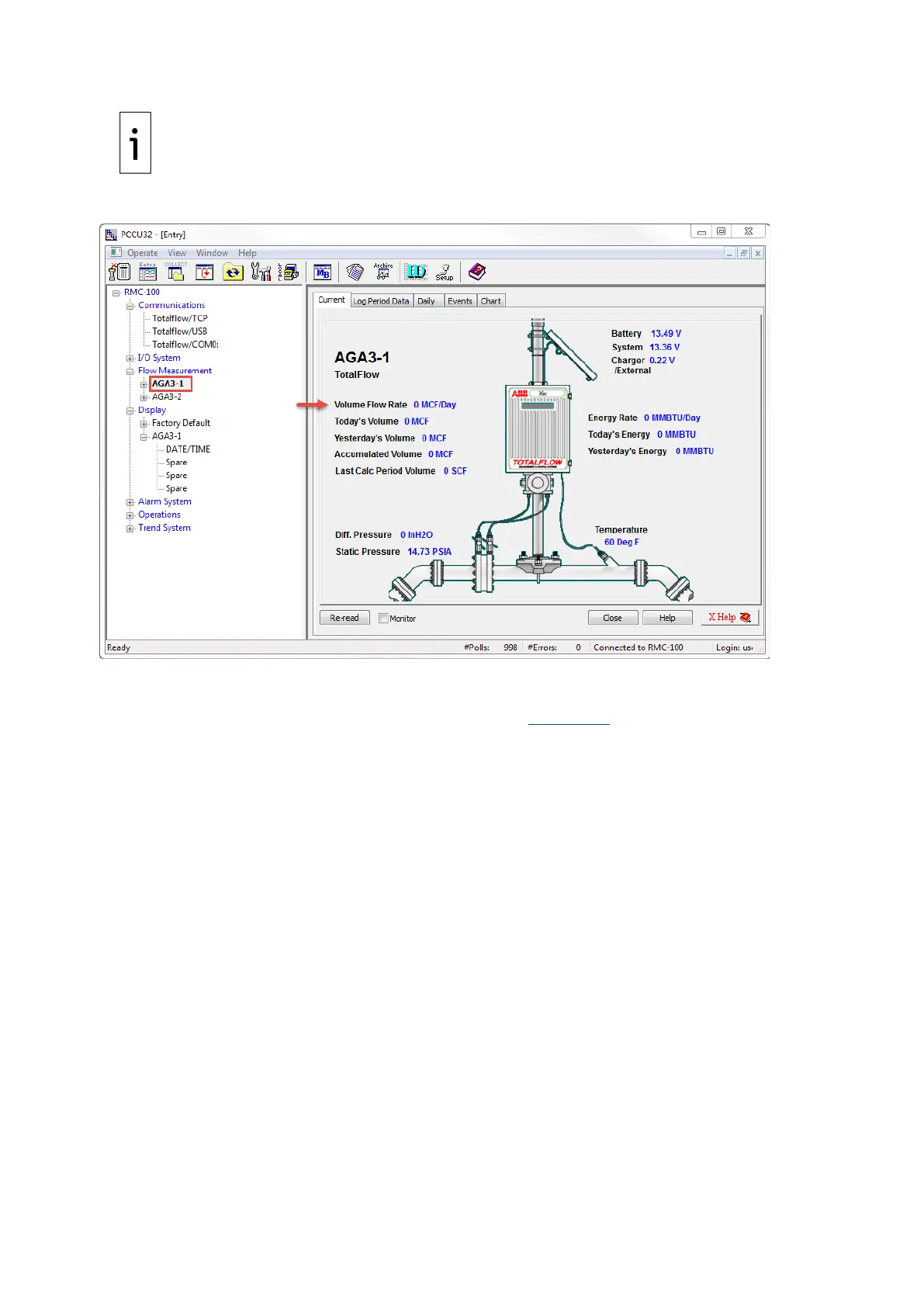

Figure 5-19: Determine application parameter and value to display
2. Determine the application register that stores the value of the parameter.
a. Hover the mouse over the Volume Flow Rate’s value on the Current screen. Hold the cursor
in place until the register address bubble displays (Figure 5-20
). Take note of the register
address. In this example, the address is 11.7.19.
