Step Procedure
4

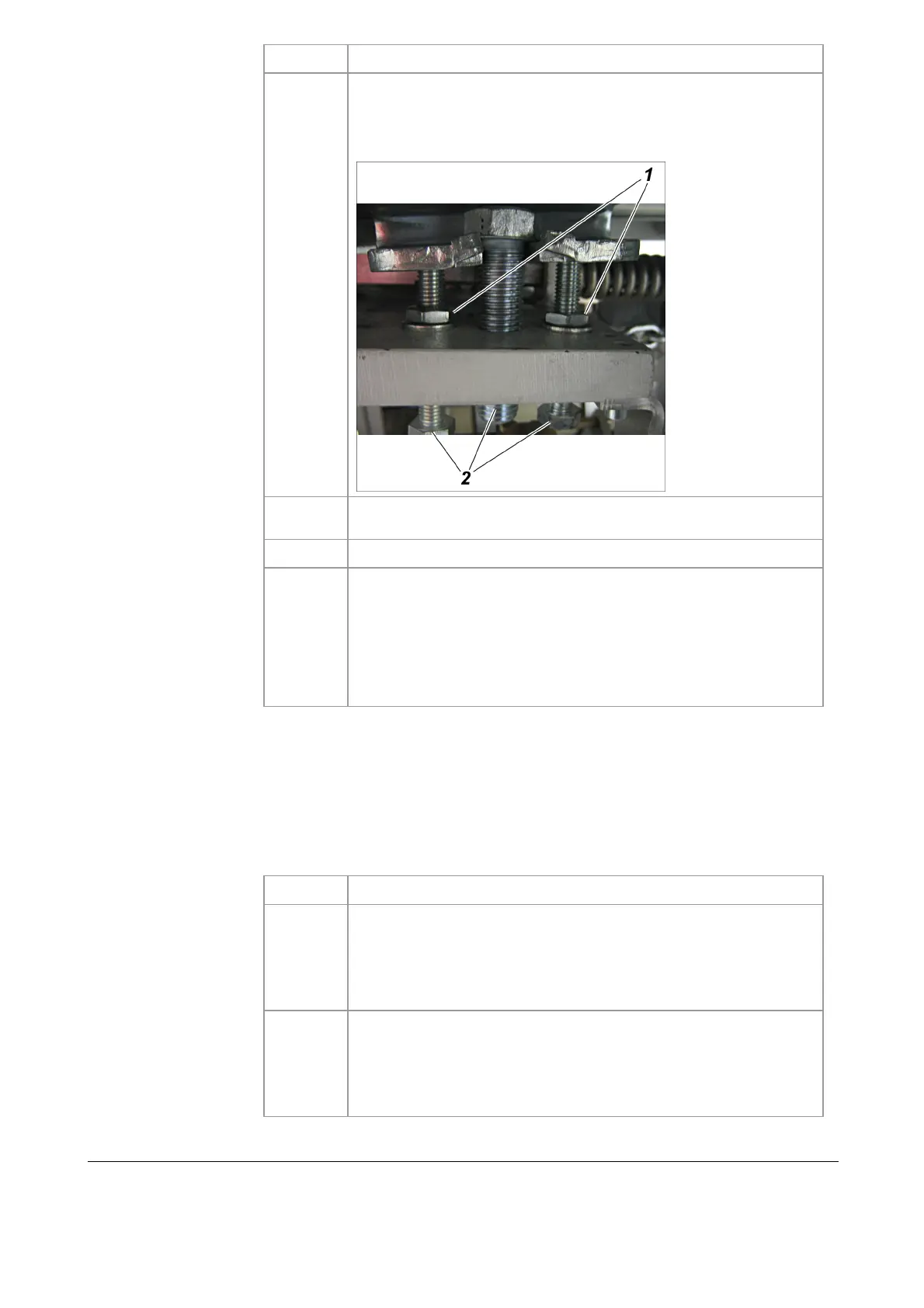

Adjust adjustment screws (2) until the desired position is achieved.
Ensure even changes on both sides of the probe carriage.
Note: To make work easier, have another person lift up the probe
tip slightly.
5
Perform steps 1 to 2 on the other side of the probe carriage so as
to ensure equal distance to the rails.
6
Tighten counter nuts (1).
7
Unlock EMERGENCY STOP switch, turn service switch back to
OFF position and insert probe again using the controller. Check the
position of the entire sampling pipe in relation to the mounting
flange, adjust if necessary.
WARNING! Probe moves into the kiln. Do not stand in the area of
travel of the probe or probe carriage until the probe is com-
pletely inserted into the kiln and the warning lamps go out.
If you have changed the position of the probe as described, you must then check
and, if necessary, adjust the end position sensor. Follow the instructions in Probe
retractor: Checking and, if necessary, adjusting the position indicator (probe end
position) on page 202.
Proceed as follows to change the horizontal alignment of the gas sampling probe:
Step Procedure
1
Turn service switch to ON position.
WARNING! Gas sampling probe moves out of the kiln. Do not
stand in the area of travel of the gas sampling probe or probe
carriage until the probe is completely retracted and the warn-
ing lamps go out.
2
Press EMERGENCY STOP switch and allow gas sampling probe to
cool down.
WARNING! Risk of burning in the event of contact with the hot
probe. Do not touch the probe until it has cooled down to
below 50 °C.
After changing
vertical position
Instructions:
changing horizontal
position
